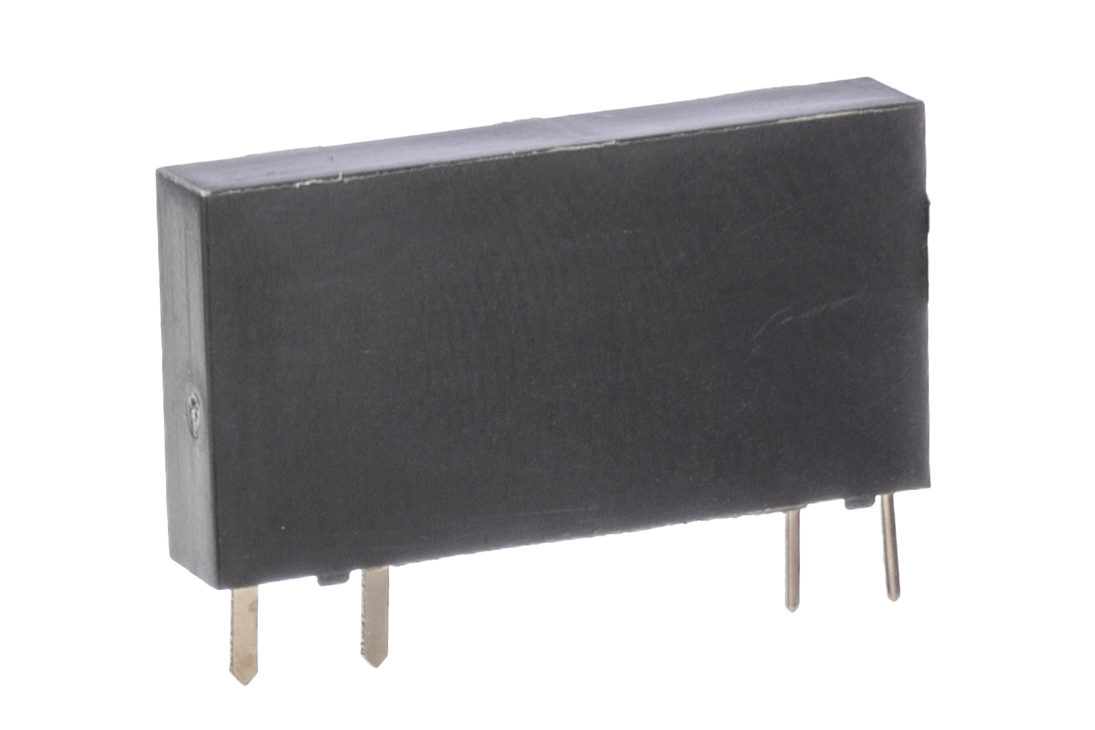

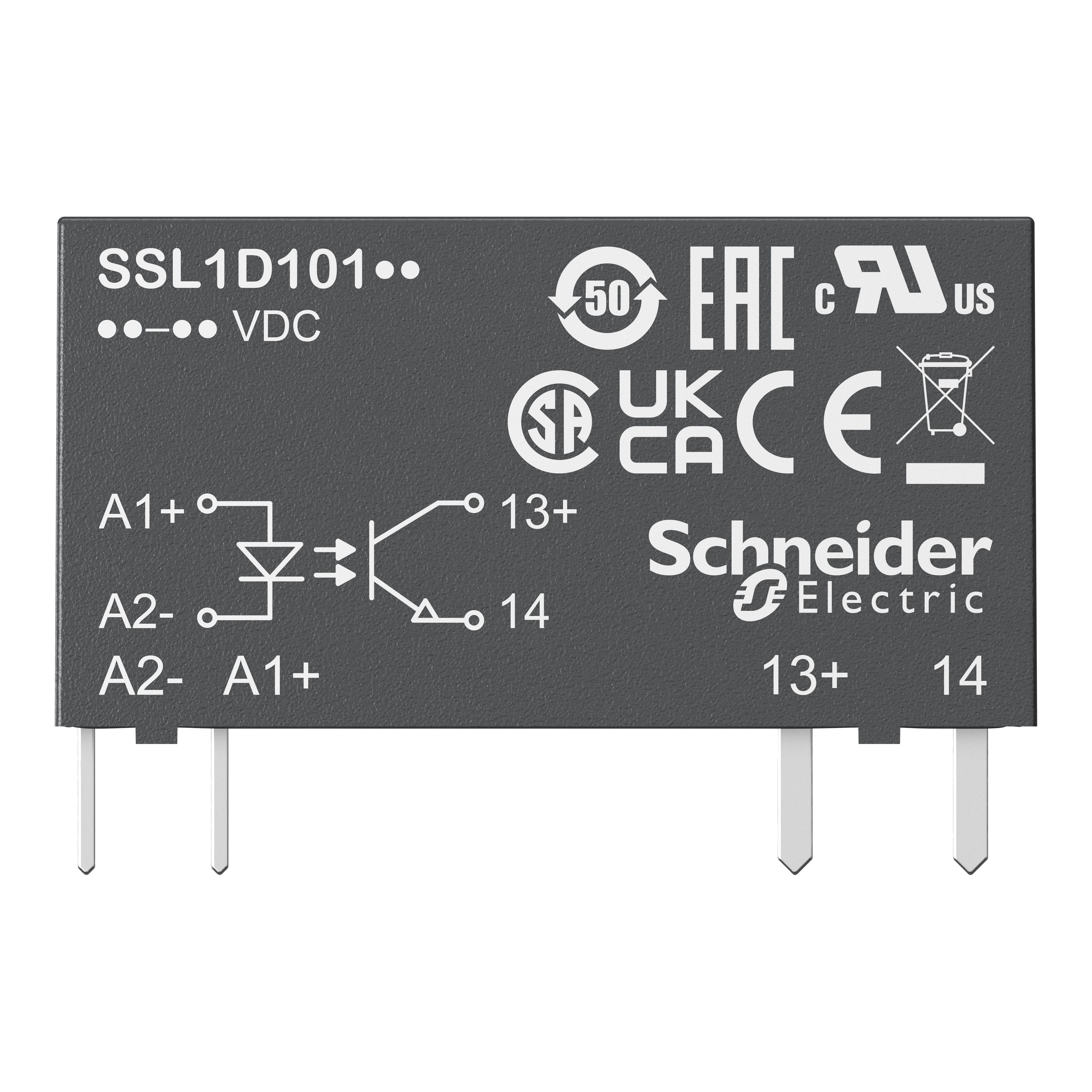

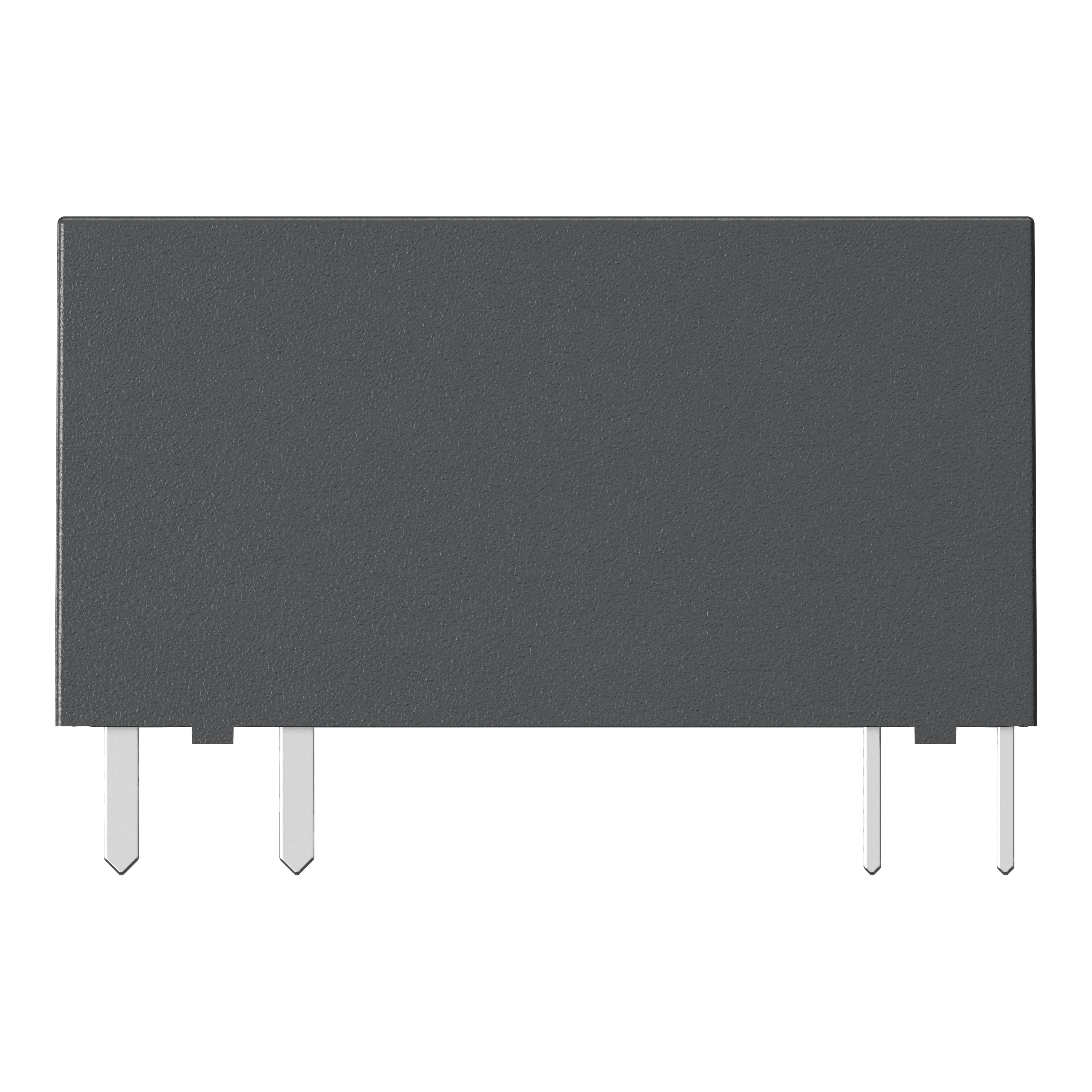

SSL Series Solid State Relay, 0.1 A Load, PCB Mount, 48 V dc Load, 12 V dc Control

Maximum Load Current:

0.1 A

Mounting Type:

PCB Mount

Maximum Load Voltage:

48 V dc

Minimum Load Voltage:

1 V dc

Minimum Control Voltage:

3 V dc

Maximum Control Voltage:

12 V dc

Switching Type:

DC

Control Voltage Range:

3 → 12 V dc

Range:

Harmony Solid State Relays

Minimum Load Current:

0.001 A

Number of Poles:

1

Terminal Type:

PCB Pin

Contact Configuration:

SPST

Output Device:

MOSFET

Relay Type:

Single Phase

Load Voltage Range:

1 → 48V dc

Series:

SSL

Maximum Turn On Time:

0.02ms

Better World Product:

Yes

Better World Verification:

Green Premium

Dimensions:

28 x 5 x 15mm

Standards Met:

CE, CSA, UL

Special Features:

Built-In Diode Protection Circuit & LED Indicator, Mounted on Universal AC/DC Sockets, Slim Interface SSL Relays with PCB Terminals

Operating Temperature Range:

-20 → +80°C

Length:

28mm

Off State Leakage Current:

0.001 mA

Height:

15mm

Depth:

5mm

Maximum Operating Temperature:

+80°C

Capacitance:

1.5pF

Minimum Operating Temperature:

-20°C

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=151349&DisplayLogo=False
