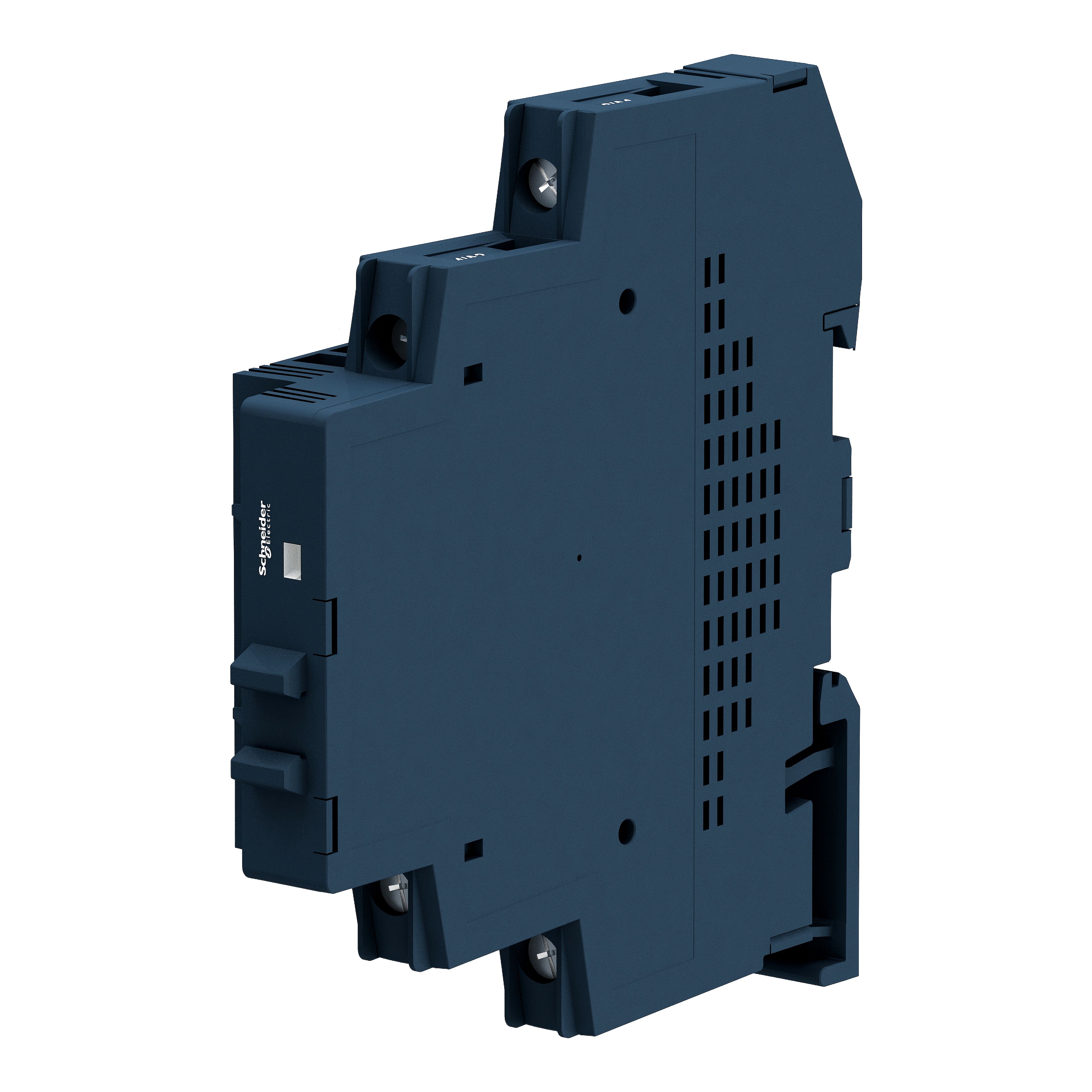

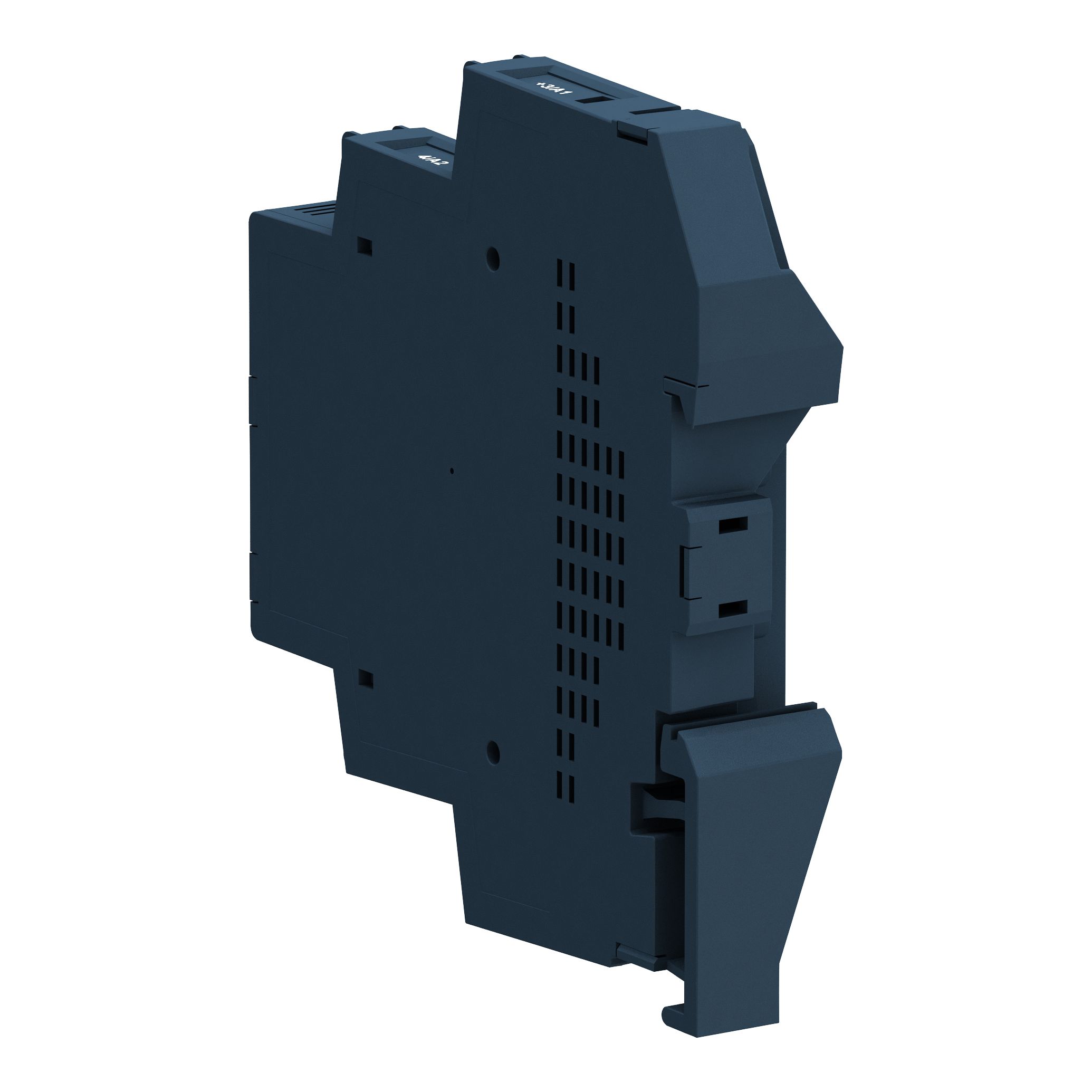

Harmony Relay Series Solid State Relay, 12 A Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control

Maximum Load Current:

12 A

Mounting Type:

DIN Rail

Maximum Load Voltage:

280 V ac

Minimum Load Voltage:

24 V ac

Maximum Control Voltage:

32 V dc

Minimum Control Voltage:

4 V dc

Switching Type:

Random

Control Voltage Range:

4 → 32 V dc

Minimum Load Current:

0.00015 A

Number of Poles:

1

Terminal Type:

Screw

Contact Configuration:

SPST

Output Device:

SCR

Relay Type:

Single Channel Relay

Series:

Harmony Relay

Load Voltage Range:

24 → 280V ac

Maximum Turn On Time:

1/2 cycle + 1 ms

Better World Verification:

Green Premium

Better World Product:

Yes

Dimensions:

18.29 x 83.69 x 87.66mm

Standards Met:

CE, CSA, UL

Height:

87.7mm

Length:

18.3mm

Off State Leakage Current:

0.1 mA

Depth:

83.7mm

Operating Temperature Range:

-30 → +80°C

Capacitance:

10pF

Special Features:

Integrated Heat Sinks for Effective Thermal Management & Space Savings
