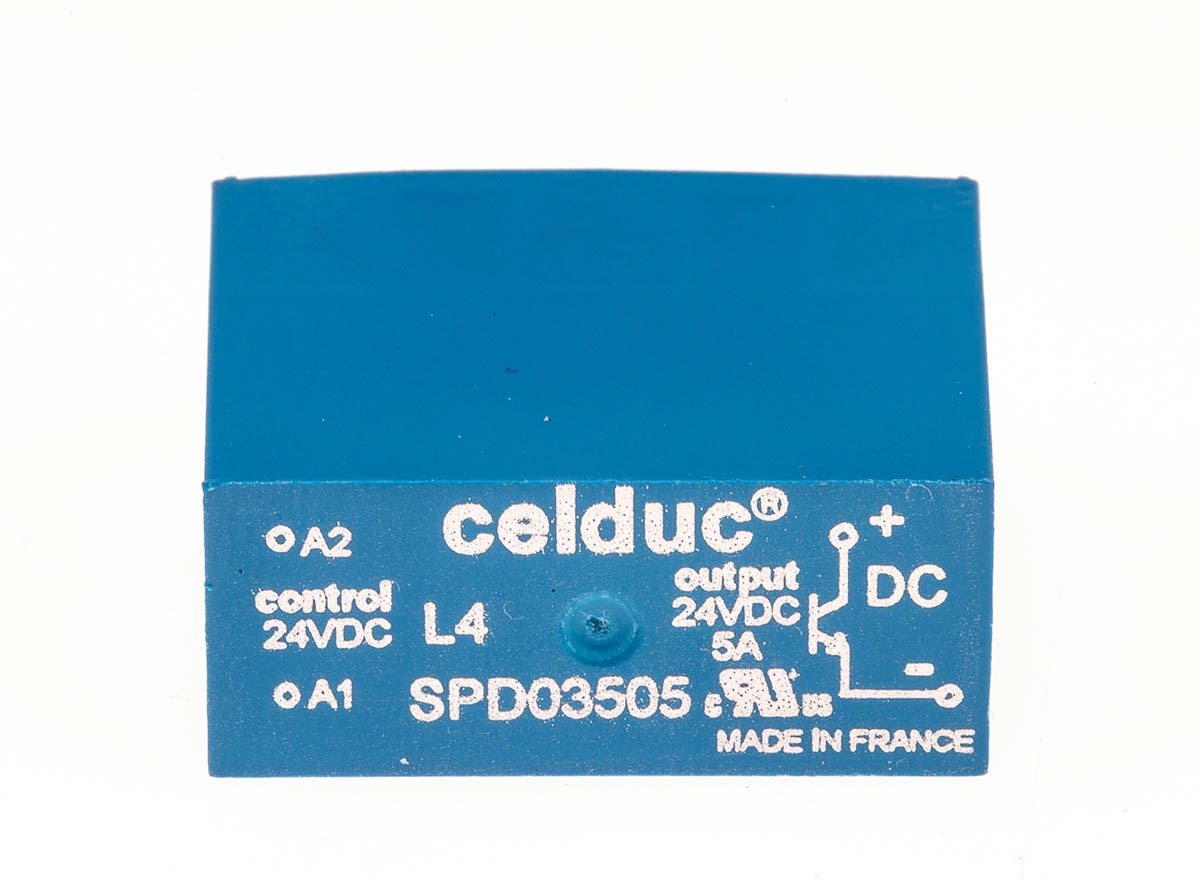

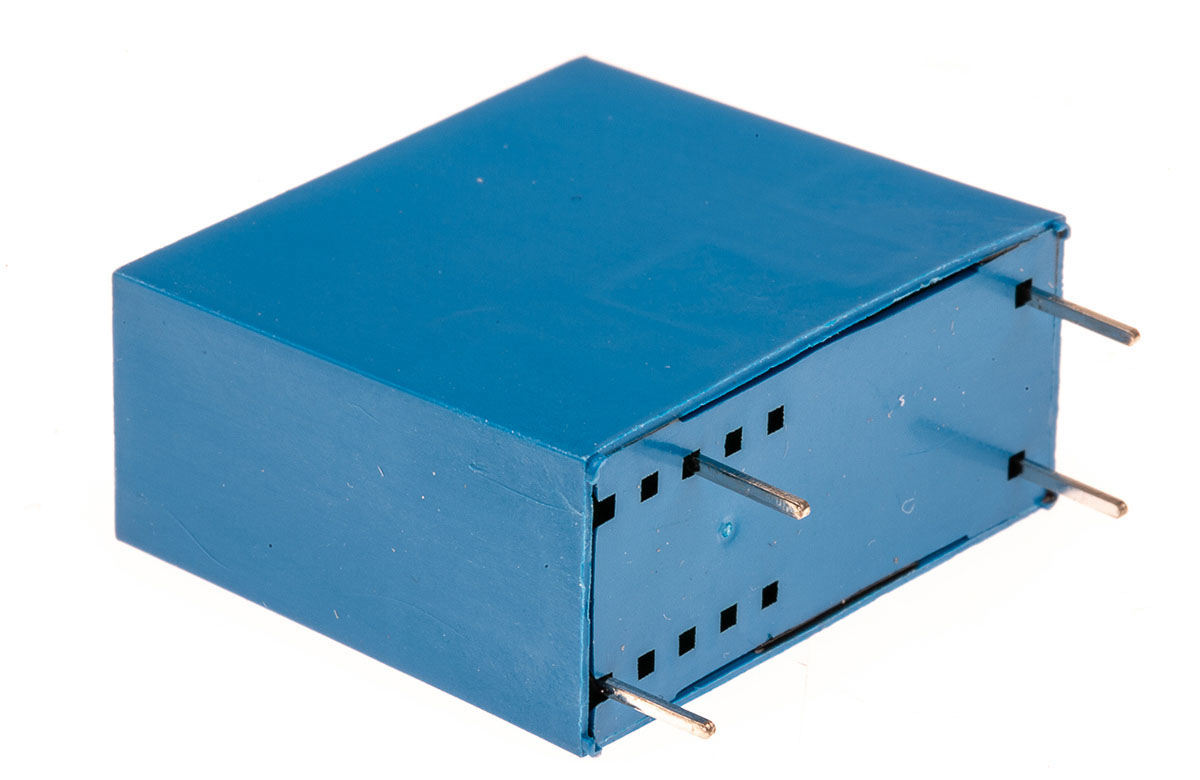

SP-ST-SL Series Solid State Relay, 5 A Load, PCB Mount, 30 V dc Load, 30 V dc Control

Maximum Load Current:

5 A

Mounting Type:

PCB Mount

Maximum Load Voltage:

30 V dc

Minimum Load Voltage:

0 V dc

Maximum Control Voltage:

30 V dc

Minimum Control Voltage:

12 V dc

Switching Type:

DC

Control Voltage Range:

12 → 30 V dc

Minimum Load Current:

1 mA

Range:

SP-ST-SL

Number of Poles:

1

Contact Configuration:

SPST

Terminal Type:

PCB Pin

Output Device:

MOSFET

Relay Type:

DC Interface Relay

Package Style:

Module

Series:

SP-ST-SL

Load Voltage Range:

0 → 30V dc

Dimensions:

29.2 x 12.7 x 25.4mm

Maximum Operating Temperature:

+100°C

Depth:

12.7mm

Operating Temperature Range:

-40 → +100°C

Height:

25.4mm

Standards Met:

CE, EAC

Off State Leakage Current:

<1 mA

Minimum Operating Temperature:

-40°C

Length:

29.2mm

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=7767680&DisplayLogo=False
