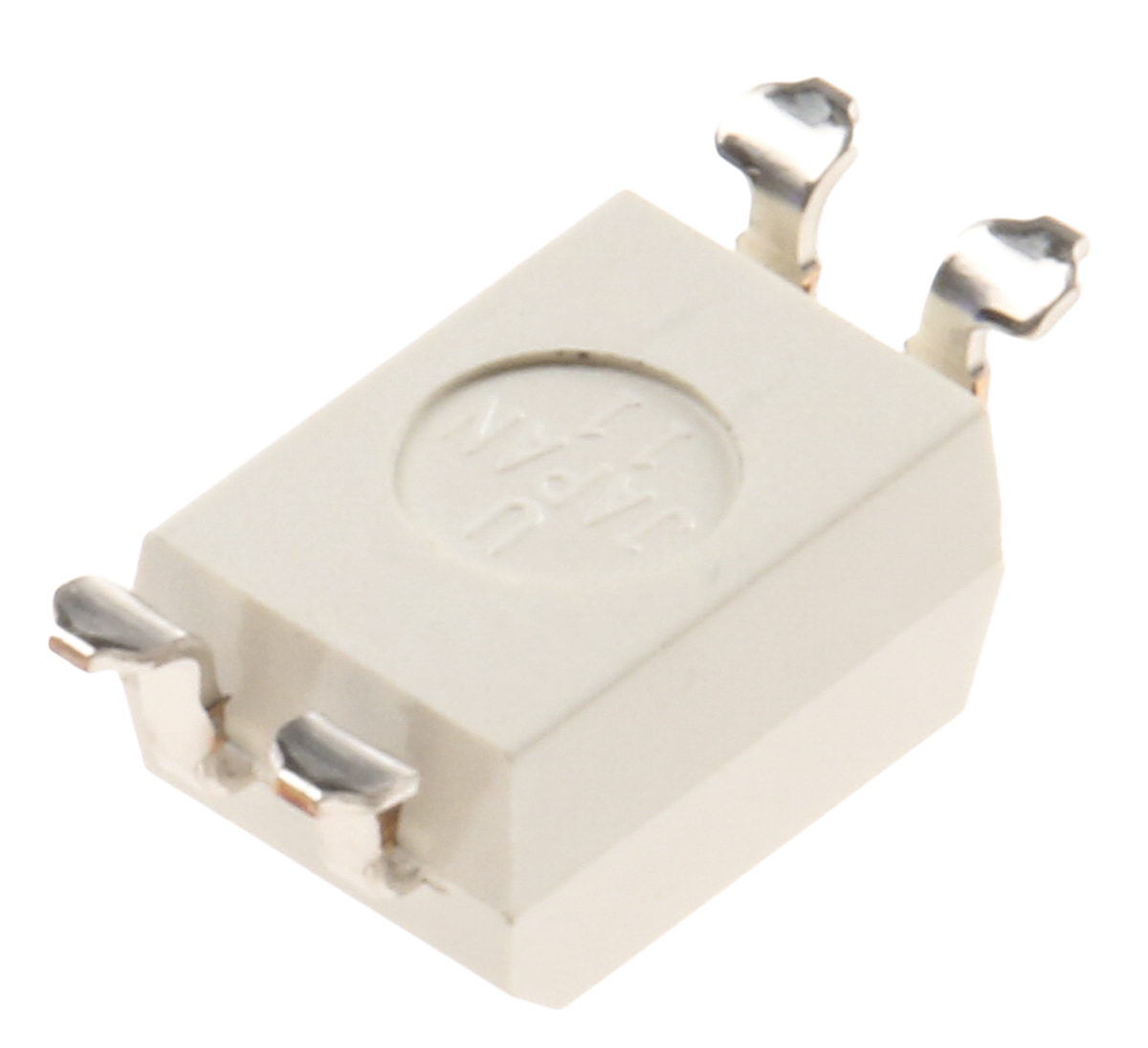

G3VM Series Solid State Relay, 0.5 A Load, Surface Mount, 60 V ac Load, 1.3 V Control

Maximum Load Current:

0.5 A

Mounting Type:

Surface Mount

Maximum Load Voltage:

60 V ac

Minimum Load Voltage:

0 V ac

Maximum Control Voltage:

1.3 V

Switching Type:

DC

Control Voltage Range:

Maximum of 1.3 V

Minimum Load Current:

500 mA

Contact Configuration:

SPST

Terminal Type:

PCB Pin

Output Device:

MOSFET

Package Style:

SMD4

Series:

G3VM

Load Voltage Range:

0 → 60V ac

Dimensions:

4.58 x 6.4 x 3.65mm

Off State Leakage Current:

50 mA

Length:

4.6mm

Operating Temperature Range:

-40 → +85°C

Depth:

6.4mm

Height:

3.7mm

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+85°C
