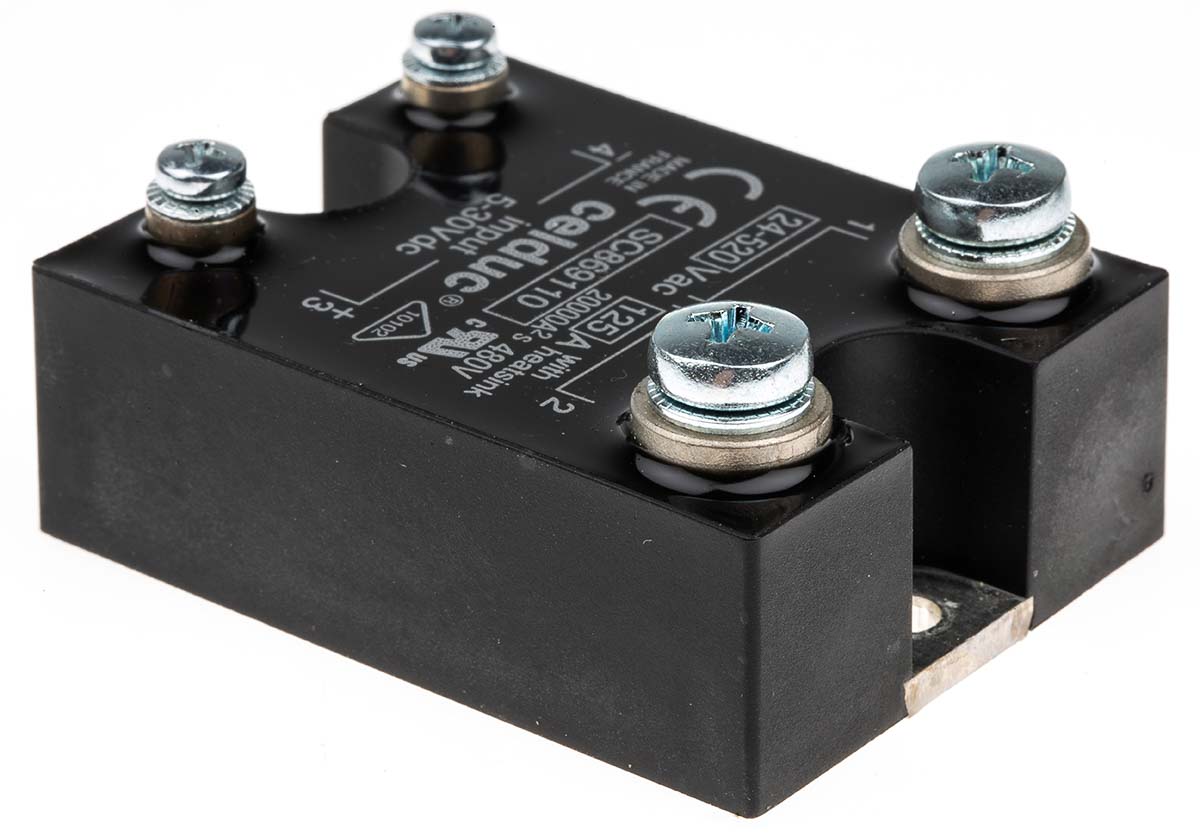

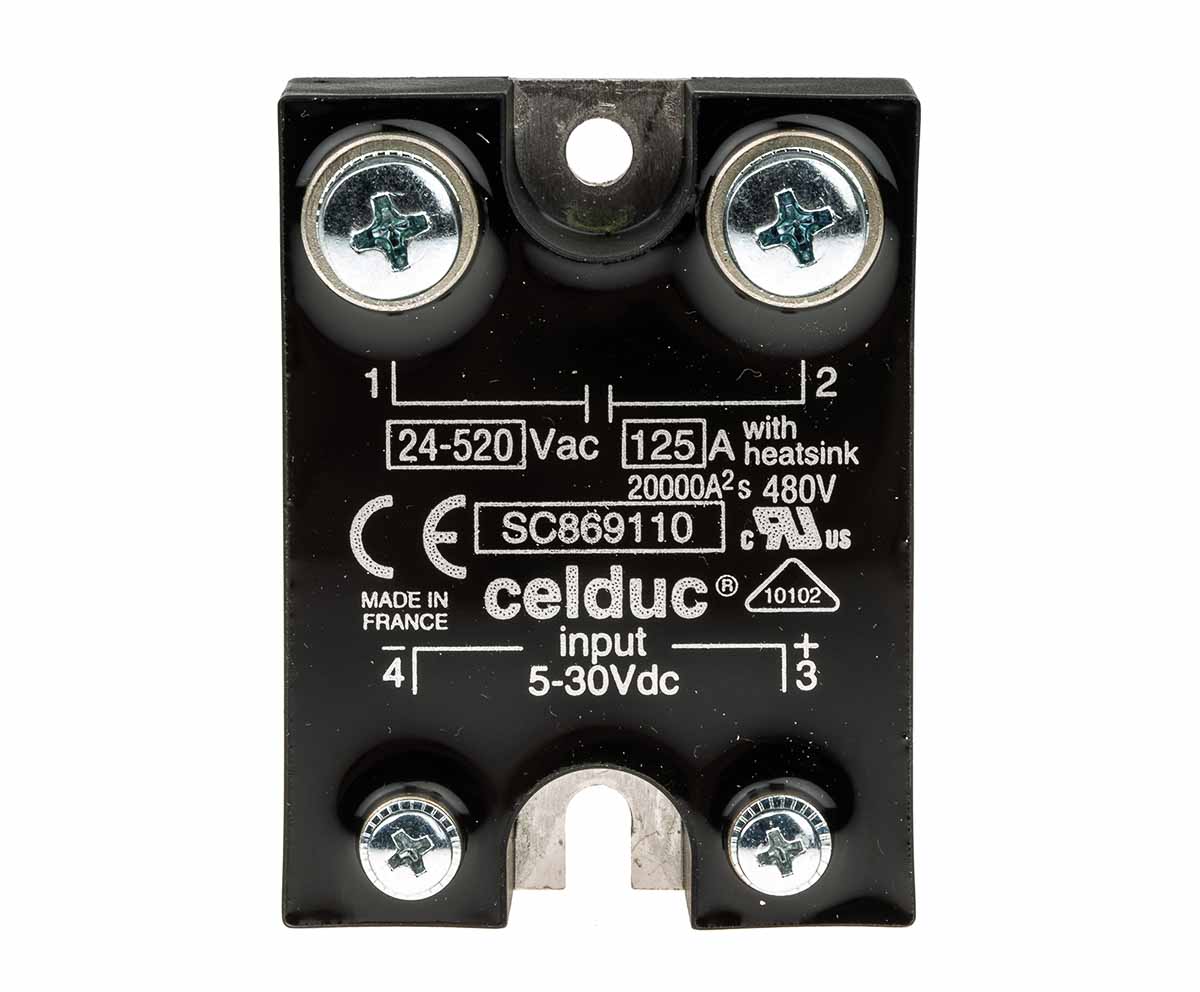

SC8 Series Solid State Relay, 125 A Load, Panel Mount, 400 V rms Load, 30 V dc Control

Maximum Load Current:

125 A

Mounting Type:

Panel Mount

Maximum Load Voltage:

400 V rms

Minimum Load Voltage:

24 V ac

Maximum Control Voltage:

30 V dc

Minimum Control Voltage:

5 V dc

Switching Type:

Zero Cross

Control Voltage Range:

5 → 30 V dc

Minimum Load Current:

5 mA

Range:

Previous Generation

Number of Poles:

1

Terminal Type:

Screw

Output Device:

Triac

Relay Type:

Single Phase Solid State Relay

Series:

SC8

Maximum Turn On Time:

10ms

Load Voltage Range:

24 → 520V ac

Dimensions:

58.2 x 44.5 x 27mm

Height:

27mm

Depth:

44.5mm

Maximum Operating Temperature:

+100°C

Minimum Operating Temperature:

-40°C

Standards Met:

CE, VDE, cURus

Operating Temperature Range:

-40 → +100°C

Off State Leakage Current:

3 mA

Length:

58.2mm

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=152011&DisplayLogo=False
