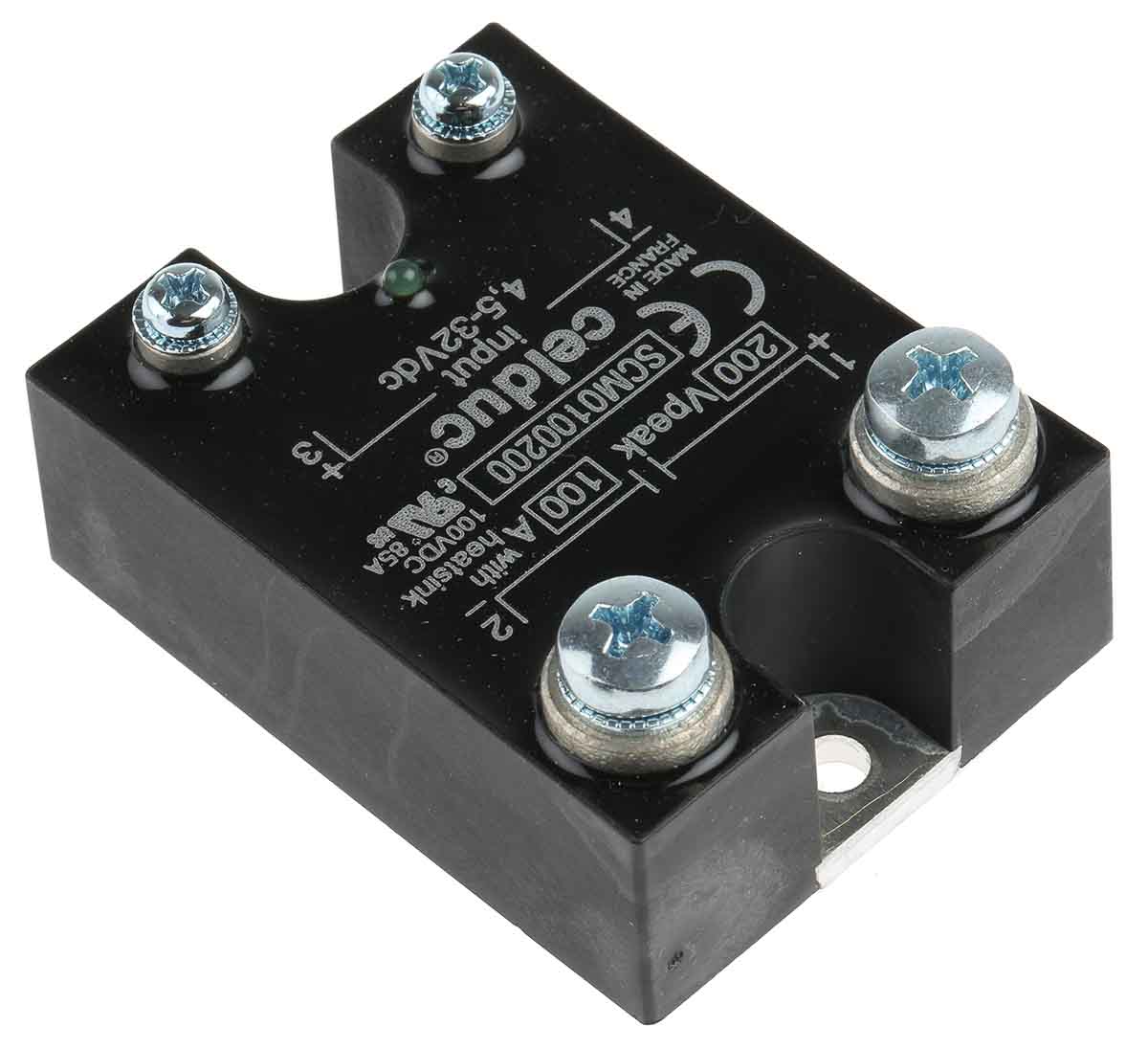

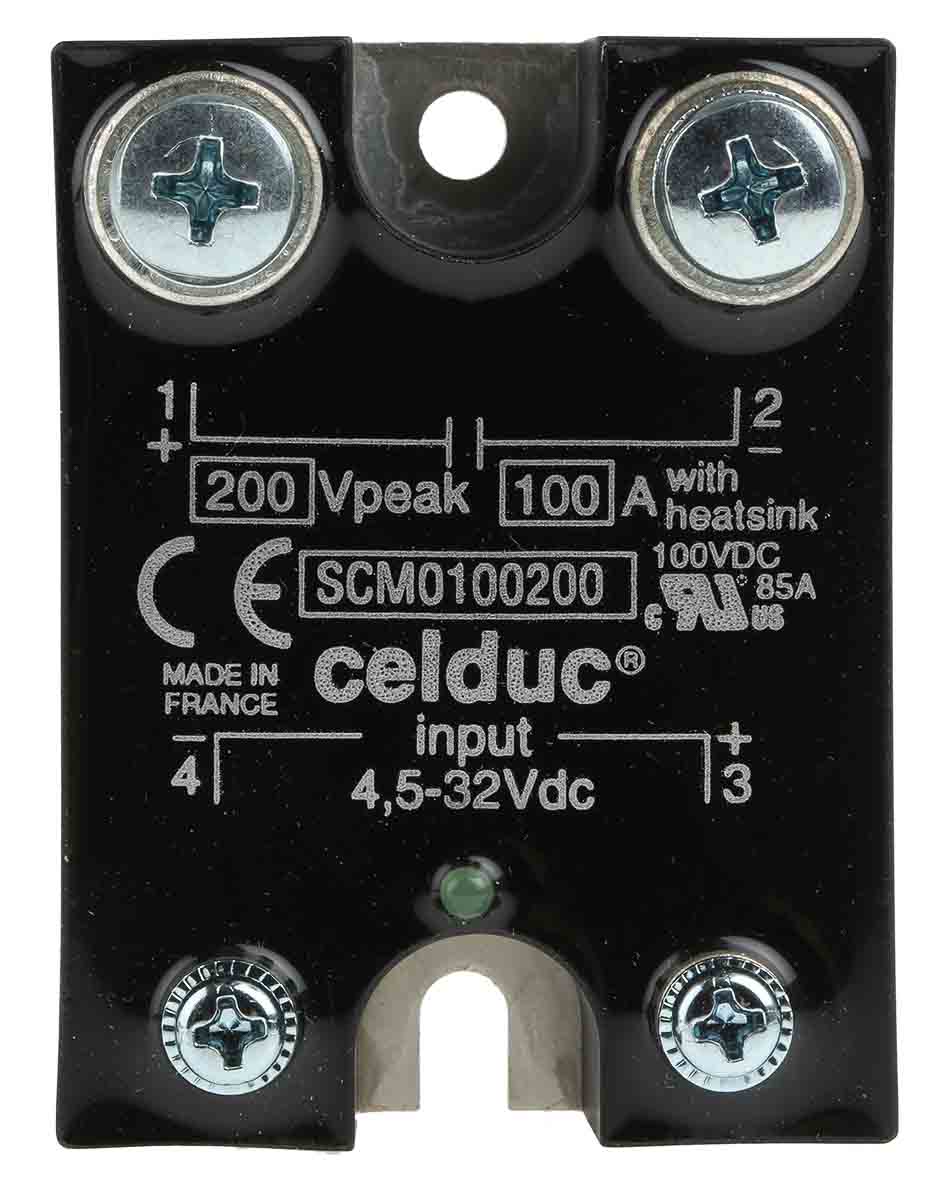

SCM Series Solid State Relay, 100 A Load, Panel Mount, 200 V dc Load, 32 V dc Control

Maximum Load Current:

100 A

Mounting Type:

Panel Mount

Maximum Load Voltage:

200 V dc

Minimum Load Voltage:

2 V dc

Maximum Control Voltage:

32 V dc

Minimum Control Voltage:

4.5 V dc

Switching Type:

DC

Control Voltage Range:

4.5 → 32 V dc

Minimum Load Current:

0 A

Range:

SCM

Number of Poles:

1

Terminal Type:

Screw

Output Device:

MOSFET

Relay Type:

DC Solid State Relay

Maximum Turn On Time:

10 μs

Series:

SCM

Load Voltage Range:

2 → 200V dc

Dimensions:

58.2 x 44.5 x 28mm

Depth:

44.5mm

Maximum Operating Temperature:

+90°C

Minimum Operating Temperature:

-40°C

Standards Met:

CE, EAC, cURus

Operating Temperature Range:

-40 → +90°C

Length:

58.2mm

Off State Leakage Current:

100 μA

Height:

28mm
