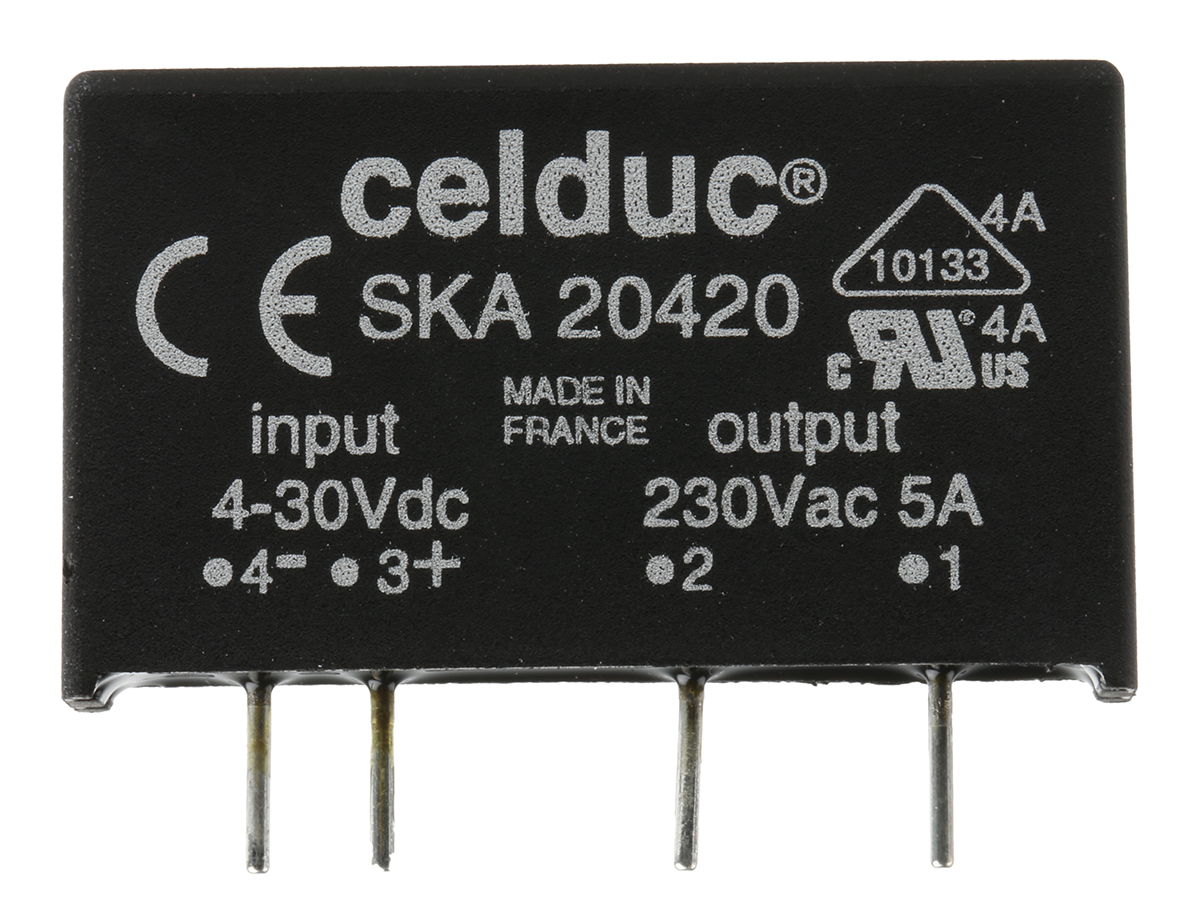

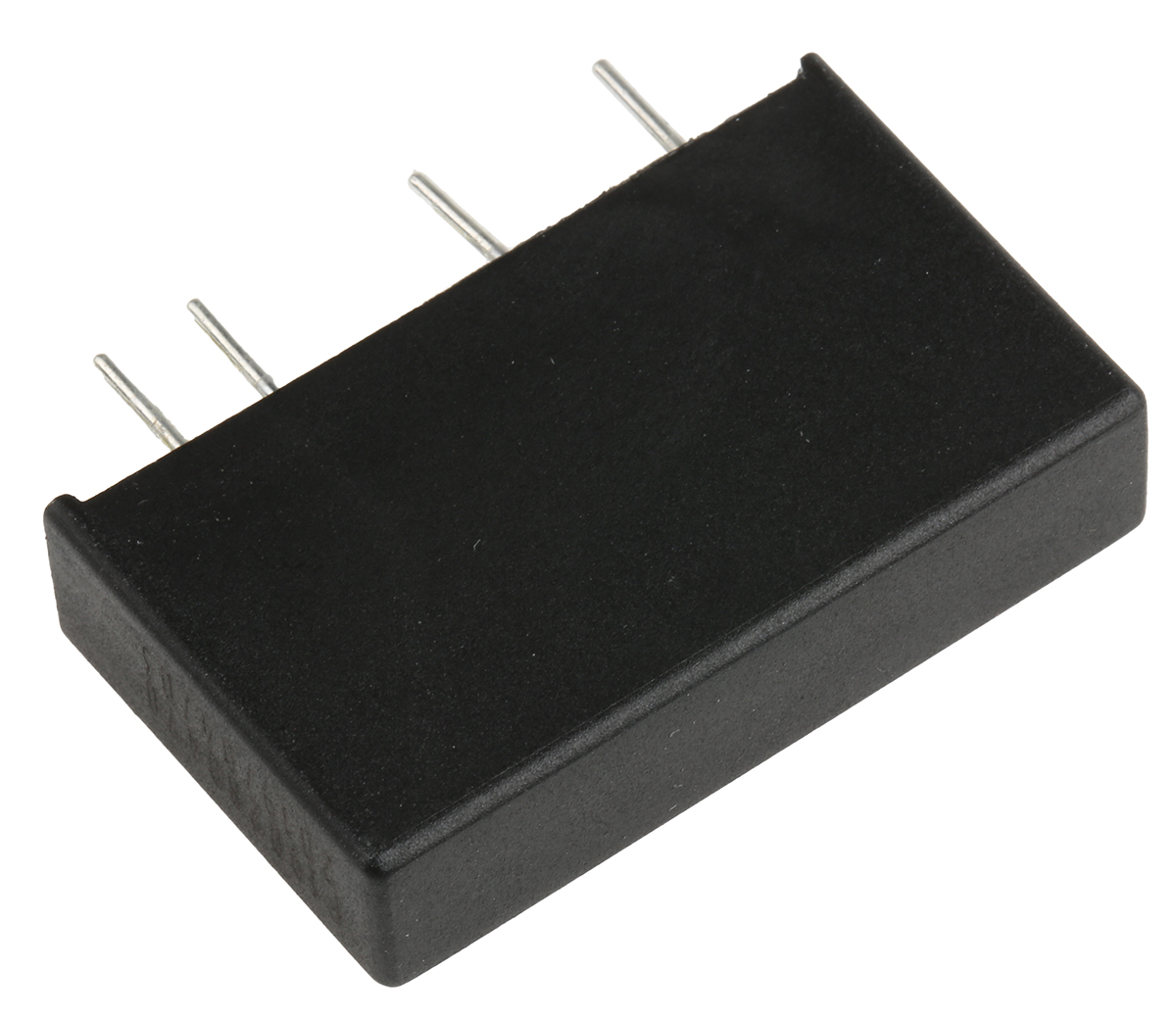

SK Series Solid State Relay, 4 A Load, PCB Mount, 275 V ac Load, 30 V dc Control

Maximum Load Current:

4 A

Mounting Type:

PCB Mount

Maximum Load Voltage:

275 V ac

Minimum Load Voltage:

12 V ac

Maximum Control Voltage:

30 V dc

Minimum Control Voltage:

4 V dc

Switching Type:

Zero Cross

Control Voltage Range:

4 → 30 V dc

Range:

SK

Minimum Load Current:

5 mA

Number of Poles:

1

Terminal Type:

PCB Pin

Output Device:

Triac

Relay Type:

PCB Relay

Series:

SK

Load Voltage Range:

12 → 275V ac

Maximum Turn On Time:

10ms

Dimensions:

43.2 x 10.2 x 25mm

Maximum Operating Temperature:

+80°C

Minimum Operating Temperature:

-40°C

Standards Met:

CE, VDE, EAC, cURus

Operating Temperature Range:

-40 → +80°C

Off State Leakage Current:

0.1 mA

Height:

25mm

Depth:

10.2mm

Length:

43.2mm

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=152003&DisplayLogo=False
