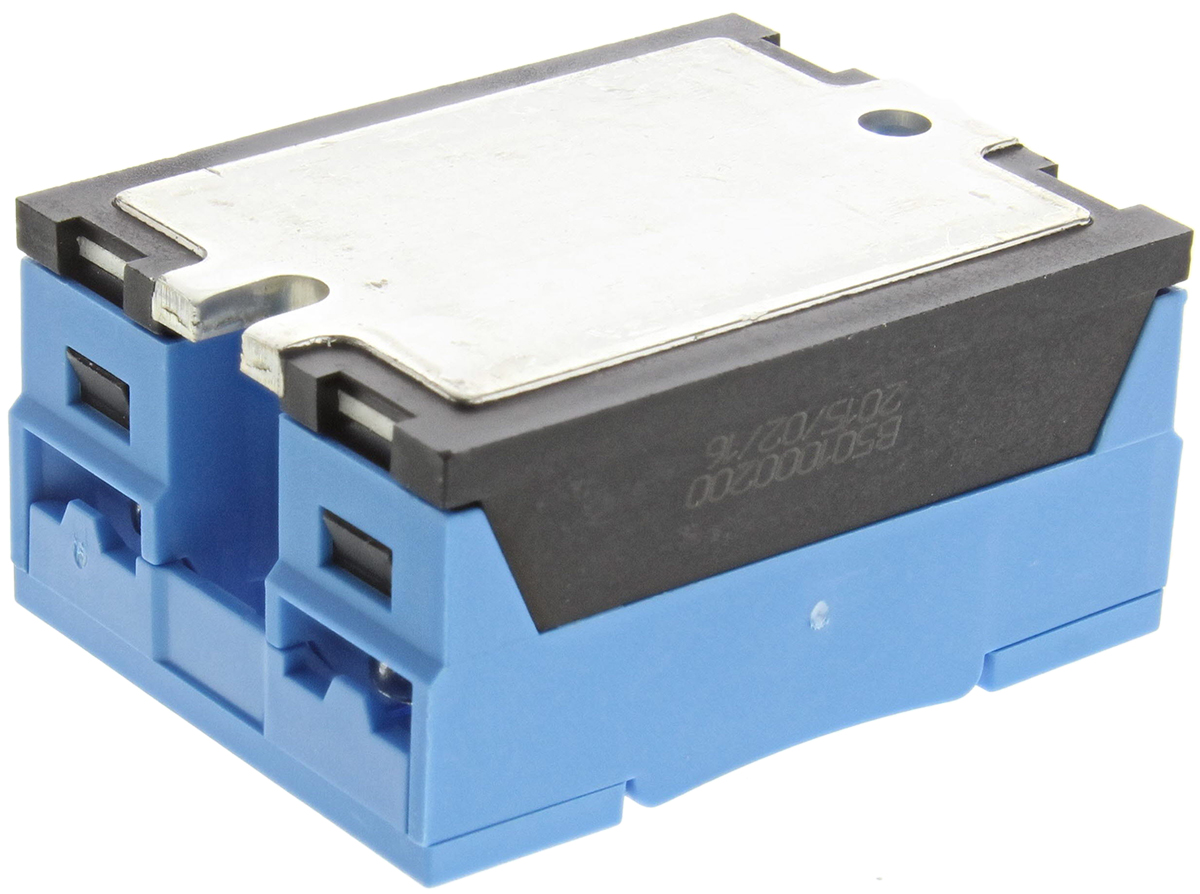

SO9 Series Solid State Relay, 12 A Load, Panel Mount, 280 V rms Load, 32 V Control

Maximum Load Current:

12 A

Mounting Type:

Panel Mount

Maximum Load Voltage:

280 V rms

Minimum Load Voltage:

12 V ac

Maximum Control Voltage:

32 V

Switching Type:

Zero Cross

Control Voltage Range:

3 → 32 V dc

Minimum Load Current:

5 mA

Range:

okpac

Number of Poles:

1

Terminal Type:

Screw

Output Device:

Triac

Relay Type:

Single Phase Solid State Relay

Maximum Turn On Time:

10ms

Load Voltage Range:

12 → 280V ac

Series:

SO9

Dimensions:

58.5 x 45 x 29mm

Length:

58.5mm

Operating Temperature Range:

-55 → +100°C

Height:

29mm

Minimum Operating Temperature:

-55°C

Depth:

45mm

Maximum Operating Temperature:

+100°C

Standards Met:

CE, EAC, cURus

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=152030&DisplayLogo=False
