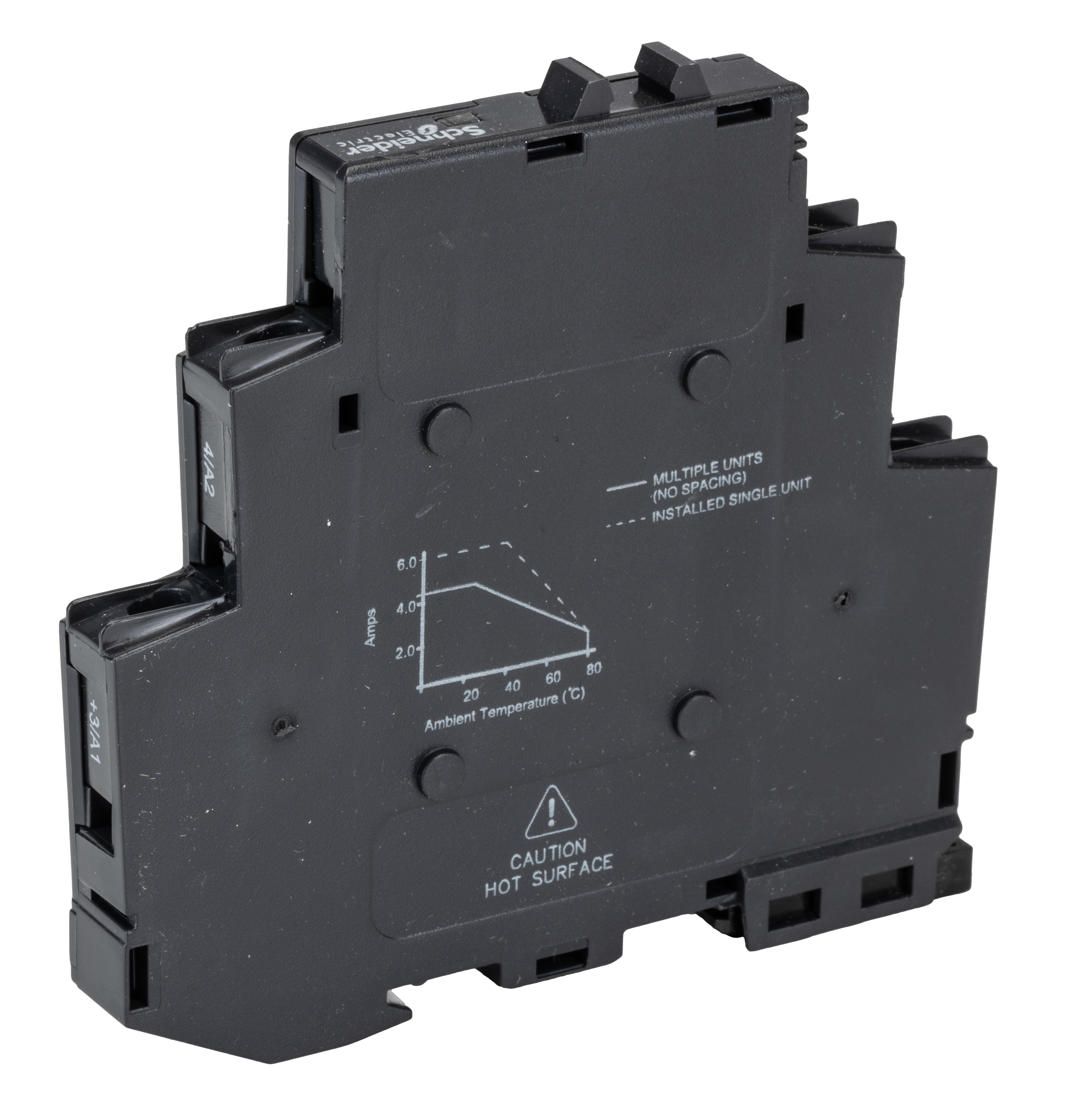

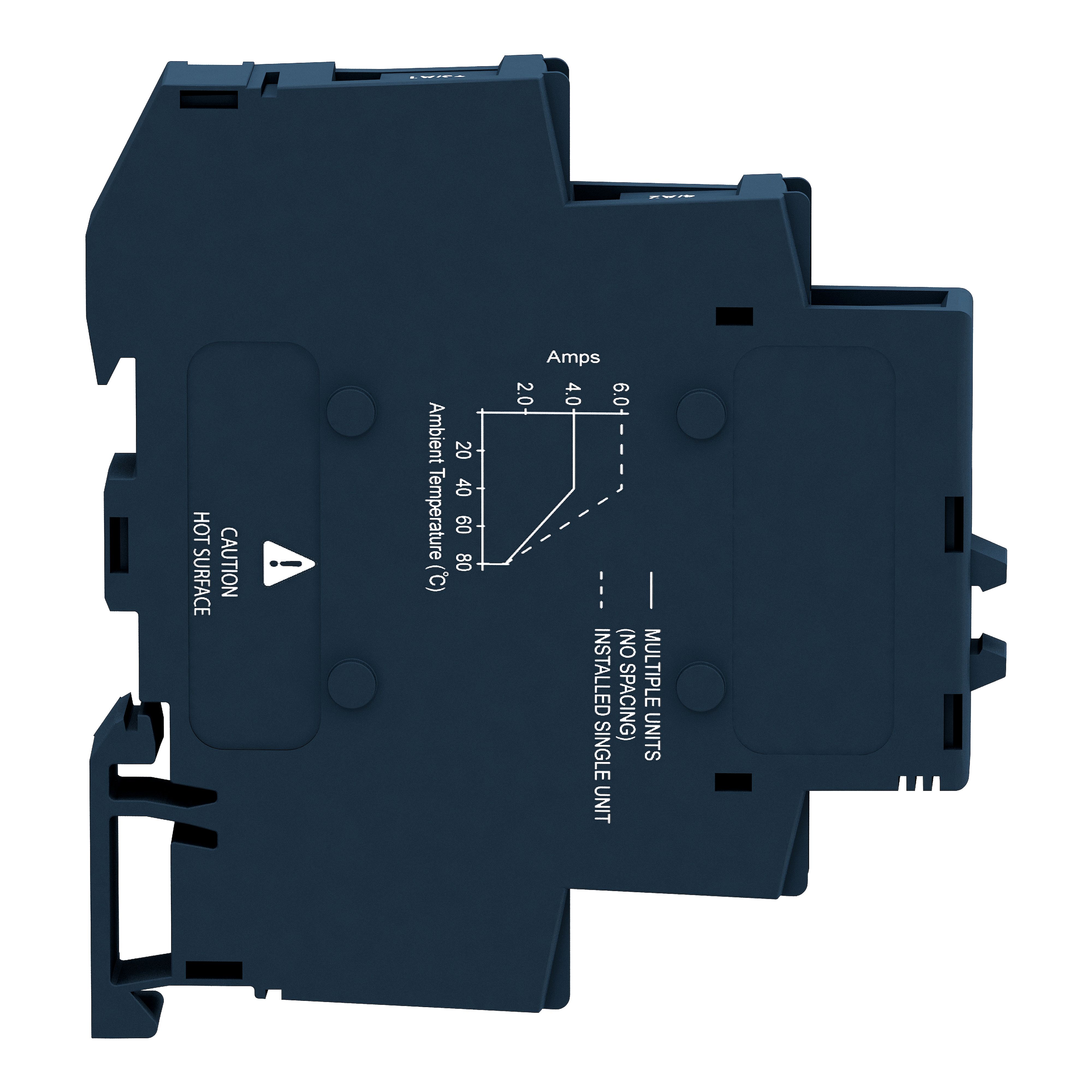

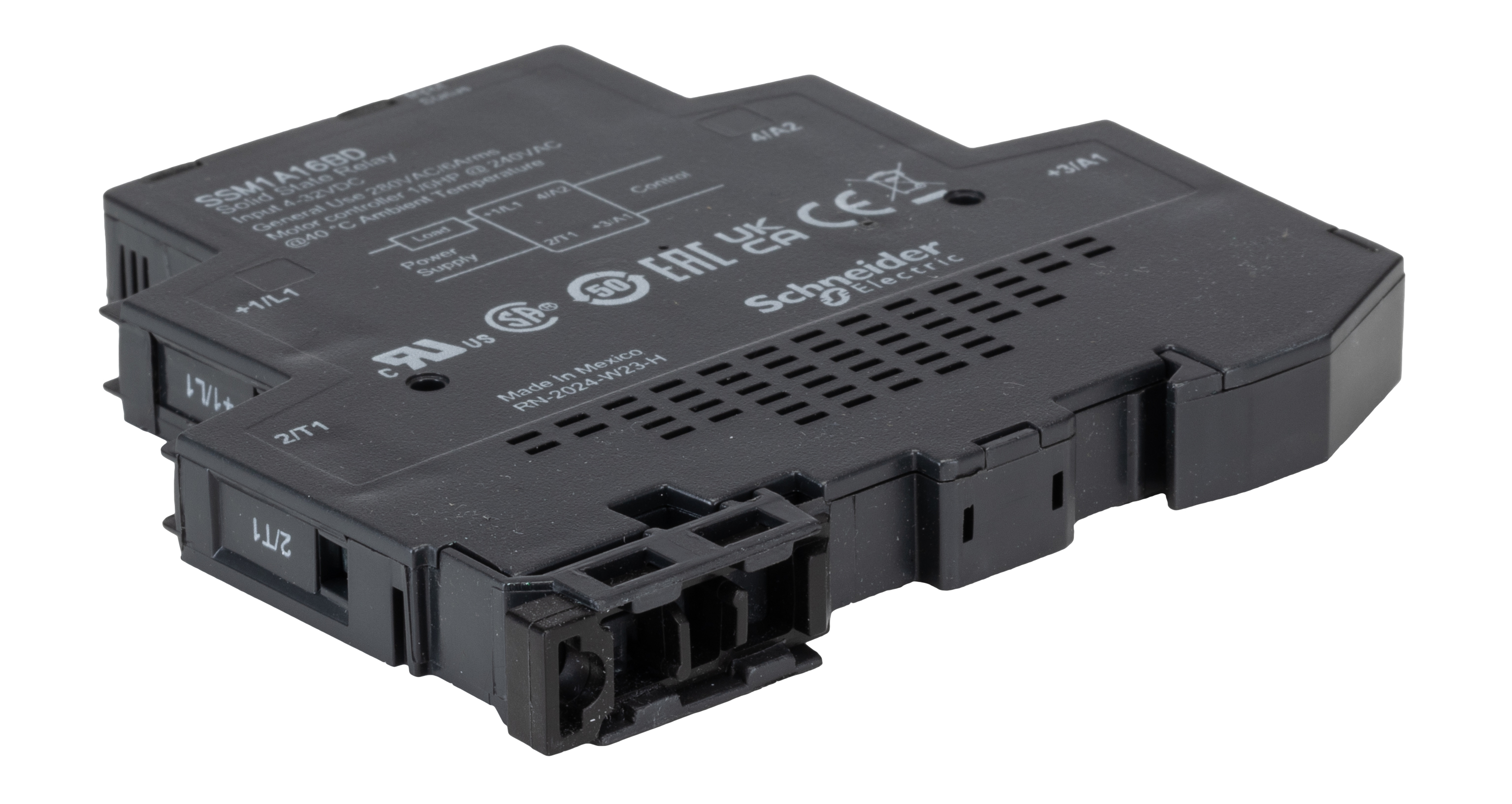

ssm1a16bd Schneider Electric SSM Series Solid State Relay, 6 A Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control
ssm1a16bd Schneider Electric SSM Series Solid State Relay, 6 A Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control
ssm1a16bd Schneider Electric SSM Series Solid State Relay, 6 A Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control
ssm1a16bd Schneider Electric SSM Series Solid State Relay, 6 A Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control

Zelio SSM Solid State Modular Relays Schneider Electric Zelio solid state relays provide a compact and innovative solution for a wide variety of applications with interfacing control and load switching. The SSM series DIN Rail mount relays offer a modular IP20 housing design with built in heatsink for optimised operating conditions. Easy maintenance
IP20
High switching frequency
Resistance to shock, vibration and contamination
Long life span

Schneider Electric SSM Series Solid State Relay, 6 A Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control

Manufacturer:
Schneider Electric
Manufacturer Part No:
SSM1A16BD
Enrgtech Part No:
ET14151875
Warranty:
Manufacturer
Checking for live stock
Maximum Load Current:
6 A
Mounting Type:
DIN Rail
Maximum Load Voltage:
280 V ac
Minimum Load Voltage:
24 V ac
Maximum Control Voltage:
32 V dc
Minimum Control Voltage:
4 V dc
Switching Type:
AC
Control Voltage Range:
4 → 32 V dc
Range:
Harmony Solid State Relays
Minimum Load Current:
0.15 A
Number of Poles:
1
Terminal Type:
Screw
Contact Configuration:
SPST
Output Device:
SCR
Relay Type:
Single Channel Relay
Load Voltage Range:
24 → 280V ac
Series:
SSM
Maximum Turn On Time:
1/2 cycle
Better World Product:
Yes
Better World Verification:
Green Premium
Dimensions:
11.02 x 83.7 x 87.66mm
Maximum Operating Temperature:
+80°C
Standards Met:
CE, CSA, UL
Depth:
83.7mm
Special Features:
Integrated Heat Sinks for Effective Thermal Management & Space Savings
Capacitance:
10pF
Minimum Operating Temperature:
-30°C
Operating Temperature Range:
-30 → +80°C
Length:
11.02mm
Off State Leakage Current:
0.1 mA
Height:
90.3mm
pdf icon
Datasheet_SSM1A16BD-fa1e9de4(datasheets)
pdf icon
Zelio Selection Guide-58bf1a3e(datasheets)
pdf icon
Product Environmental Profile-935eac36(datasheets)
pdf icon
Instruction Sheet - SSM1A16BD-b6f2a796(datasheets)
pdf icon
Catalogue - Harmony Solid State Relays-281271b9(datasheets)
