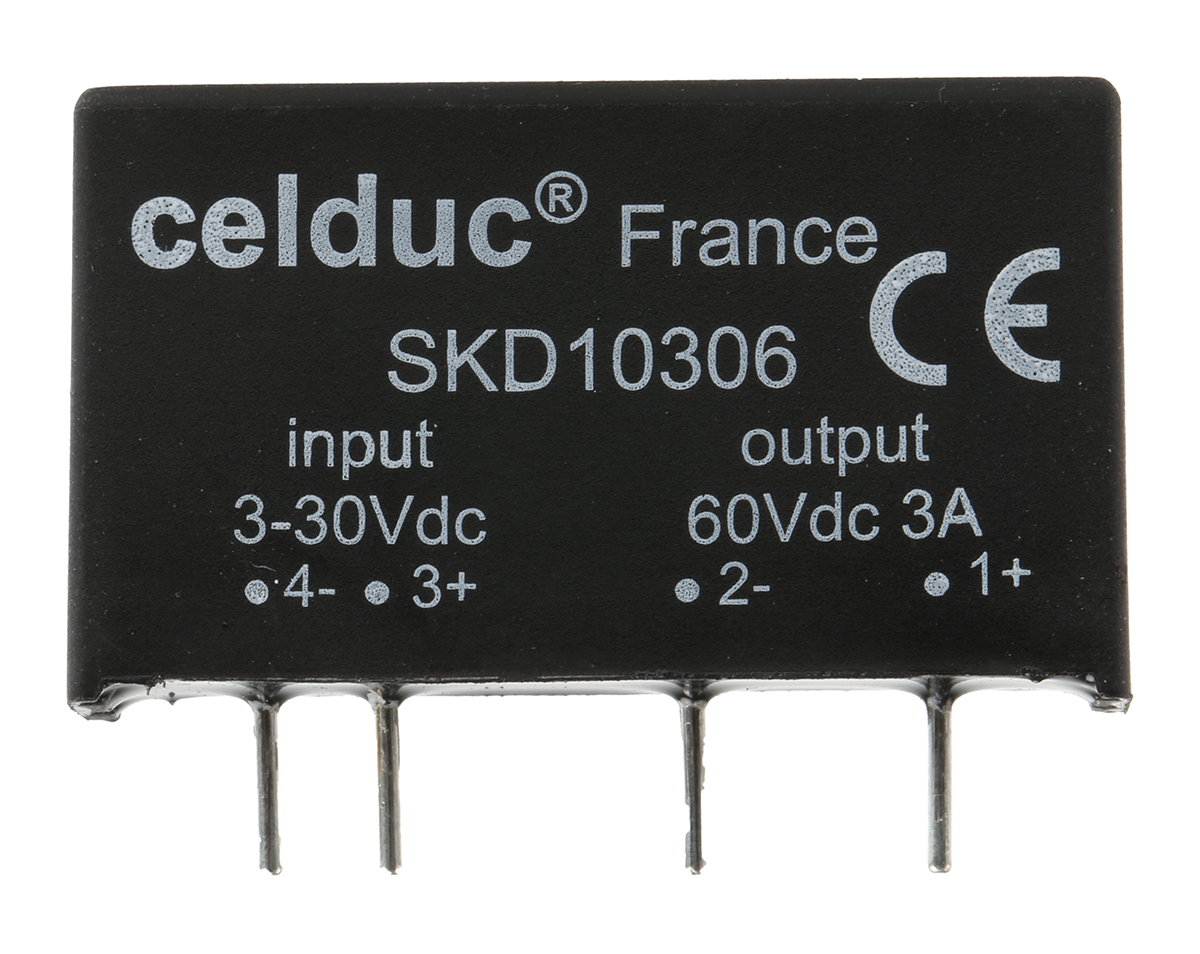

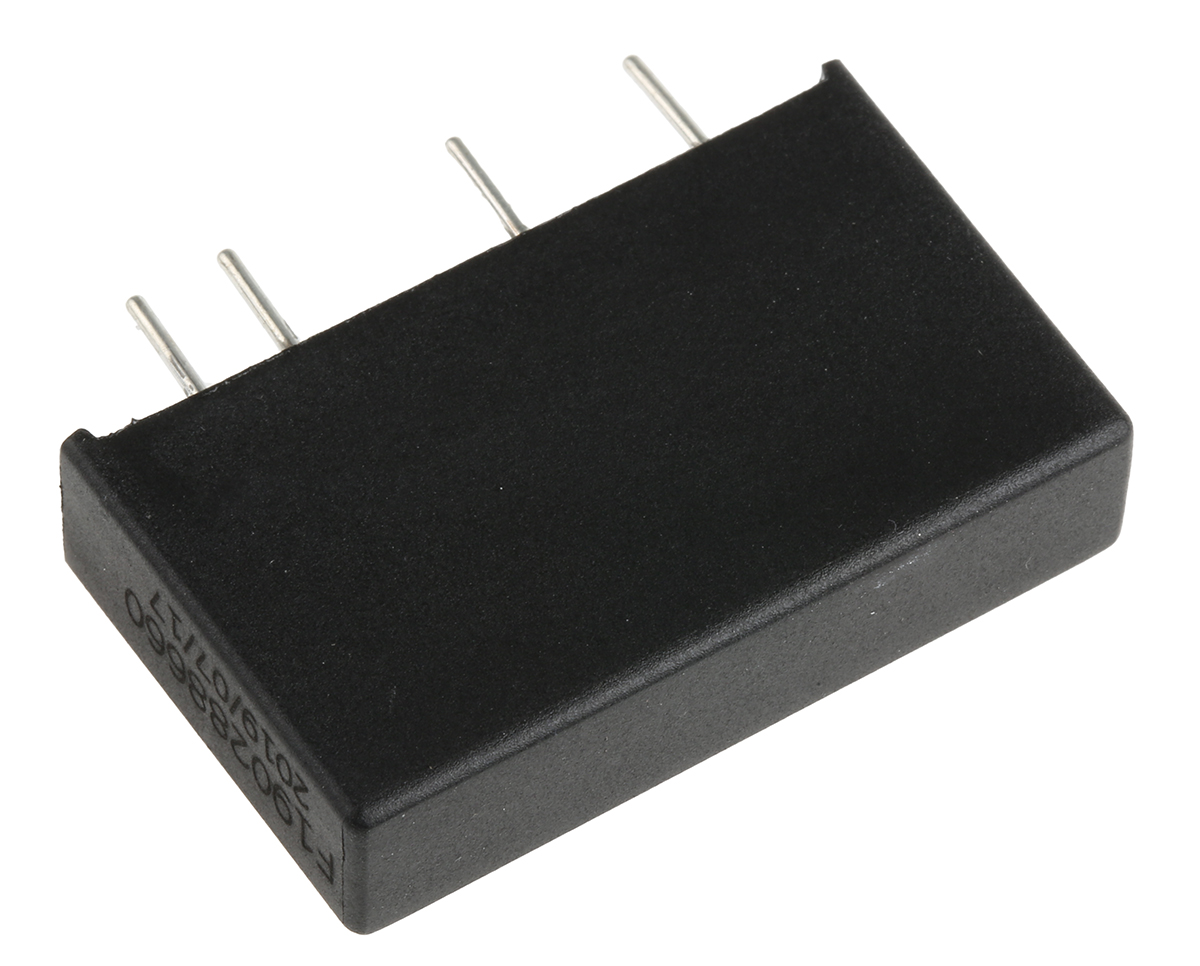

SK Series Solid State Relay, 3 A Load, PCB Mount, 60 V dc Load, 30 V dc Control

Maximum Load Current:

3 A

Mounting Type:

PCB Mount

Maximum Load Voltage:

60 V dc

Minimum Load Voltage:

12 V dc

Minimum Control Voltage:

3 V dc

Maximum Control Voltage:

30 V dc

Switching Type:

DC

Control Voltage Range:

3 → 30 V dc

Minimum Load Current:

5 mA

Range:

SK

Number of Poles:

1

Terminal Type:

PCB Pin

Output Device:

Bipolar Transistor

Relay Type:

DC Solid State Relay

Maximum Turn On Time:

200 μs

Series:

SK

Load Voltage Range:

12 → 60V dc

Dimensions:

43.2 x 10.2 x 25.4mm

Standards Met:

CE, EAC

Operating Temperature Range:

-40 → +80°C

Length:

43.2mm

Maximum Operating Temperature:

+80°C

Off State Leakage Current:

1 mA

Depth:

10.2mm

Minimum Operating Temperature:

-40°C

Height:

25.4mm
