Single Phase Solid State Relays, Celpac Series Celduc range of compact solid state relays with integral heat sink for DIN Rail mounting. Zero voltage switching LED indication DIN Rail mount Dimensions (mm): H 80 x D 112 x W 22.5 (SUL and SILD) H 80 x D 112 x W 45 (SUM) Stock no. Output no. Output Output Switching nominal 409-2968 3.5 → 32 Vdc 150 → 510 Vac 32 A 685-0974 3 → 32 Vdc 12 → 275 Vac 23 A 685-0977 3.5 → 32 Vdc 24 → 510 Vac 32 A 685-0971 150 → 240 Vac / dc 24 → 510 Vac 32 A 685-0980 3.5 → 32 Vdc 24 → 510 Vac 40 A Zero Voltage Relays Note Temperature can affect current rating; please consult the data sheet for potential derating.

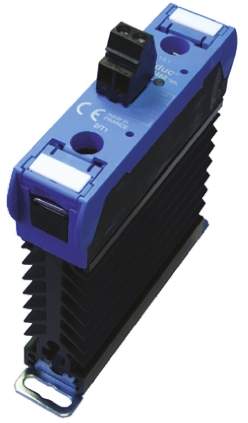

Celduc SUL865970, 32 A Solid State Relay, Zero Crossing, Chassis Mount, 510 V ac Maximum Load

Manufacturer:
Manufacturer Part No:
SUL865970
Enrgtech Part No:
ET16832353
Warranty:
Manufacturer
£ 58.11 £ 46.49
Checking for live stock
Dimensions:
91 x 22.5 x 73.5mm
Relay Type:
Single Phase Solid State Contactor
Range:
celpac Ready to use
Maximum Load Voltage:
510 V ac
Output Device:
Thyristor
Load Voltage Range:
24 → 510V ac
Standards Met:
CE, cURus 100kA, EAC
Minimum Control Voltage:
180 V dc
Off State Leakage Current:
1 mA
Switching Type:
Zero Cross
Maximum Operating Temperature:
+80°C
Terminal Type:
Screw
Control Voltage Range:
180 → 240 V dc
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +80°C
Minimum Load Current:
5 mA
Length:
91mm
Maximum Turn On Time:
30ms
Maximum Load Current:
32 A
Mounting Type:
Panel Mount
Series:
SUL8-SUM8
Depth:
22.5mm
Height:
73.5mm
Maximum Control Voltage:
240 V dc
Number of Poles:
1
Minimum Load Voltage:
24 V ac
