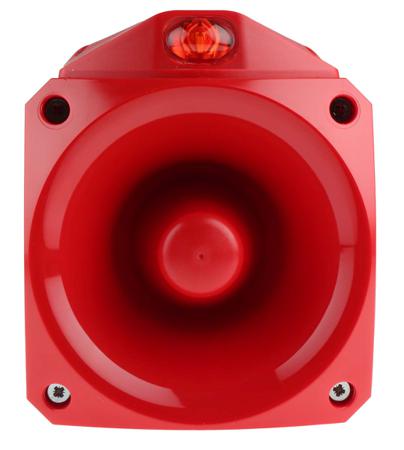

Klaxon Sounder Beacon The Klaxon nexus series DC flashy sounder beacon is a powerful sounder and high output beacon with a red lens. It has a high sound output of 110dB. This product has separate connections for sounder and beacon. The head of the sounder beacon is fixed by quarter-turn fasteners to eliminate the need for four individual screws. This enables faster installation and accurate seal compression for weatherproofing. It is a very useful innovation with the effective audio-visual signal, designed for industrial applications. Features and Benefits Supply voltage is between 17VDC and 60VDC
64 different tones
Pulse alert technology maximises system efficiency by minimising power consumption
Up to 11.3m coverage reduces the number of devices required - most rooms can be protected with a single device
Only the base is wired and mounted, the head fixes on to the base during commissioning for quick and simple installation
Nexus pulse VADs share base mounting and wiring as previous versions, making the transition to pulse versions as simple as possible
Pulse alert technology enables the coverage pattern to be fixed at the optimum performance level
Synchronised flash protects everyone including people prone to photosensitive epilepsy
No surge current eliminates power surges during system start-up
operating temperature ranges between -20°C and 70°C Applications Conveyors
Process control
Alarm
Cranes
Moving machinery
General signalling
Marine Certifications IP66 rated
EN54 certified
