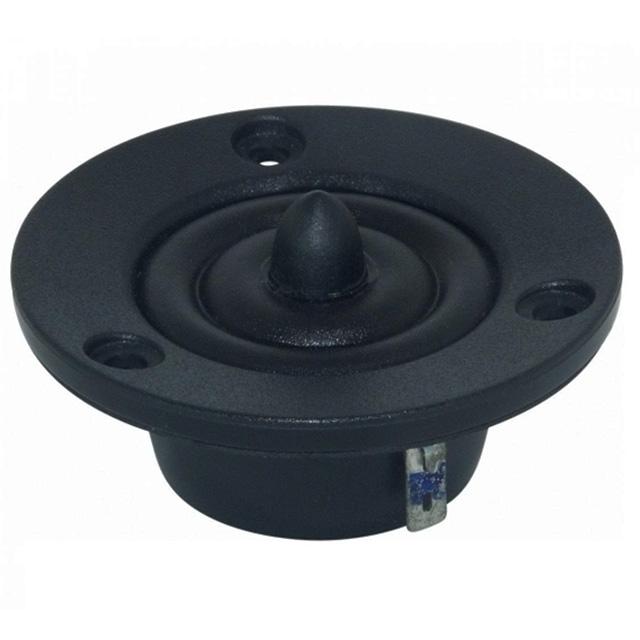

XT25SC90-04

Ratings:

-

Frequency Range:

800 Hz ~ 20 kHz

Port Location:

Top

HTSUS:

8518.29.8000

RoHS Status:

ROHS3 Compliant

Power - Rated:

100 W

Efficiency - Testing:

1W/1M

Type:

Tweeter

Height - Seated (Max):

1.299" (33.00mm)

Frequency - Self Resonant:

824.75Hz

Efficiency - Type:

Half Space Sensitivity

REACH Status:

REACH Unaffected

Impedance:

3.72 Ohms

Material - Cone:

Cloth

Efficiency - dBA:

86.80

Package:

Bulk

Size / Dimension:

2.559" Dia (65.00mm)

Material - Magnet:

Nd

Termination:

Solder Eyelet(s)

standardLeadTime:

27 Weeks

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Ingress Protection:

-

Series:

XT

Shape:

Round

Technology:

Magnetic

ECCN:

EAR99
