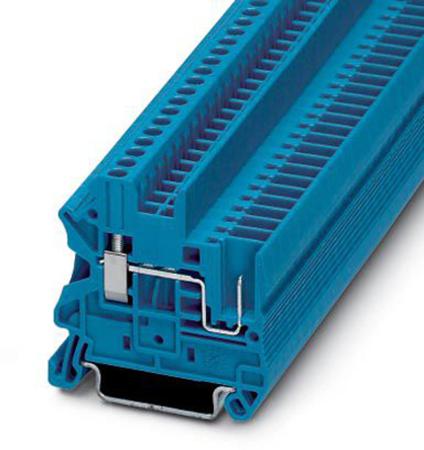

3045020

Number of Levels:

Single

Current Rating:

24A

Voltage Rating:

500 V

Series:

UT 2.5/1P BU

Colour:

Blue

Model Number:

UT 2,5/1P BU

American Wire Gauge:

26 → 12AWG

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=40010&DisplayLogo=False

Termination Method:

Screw

HTSUS:

8536.69.8000

RoHS Status:

ROHS3 Compliant

Termination Style:

Plug Receptacles, Screw

Material - Insulation:

Polyamide (PA), Nylon

Operating Temperature:

-

Type:

Plug Connection

Number of Positions:

2

Wire Gauge or Range - mm²:

0.14-4mm²

Height (Max):

2.165" (55.00mm)

REACH Status:

REACH Affected

Housing Color:

Blue

Material Flammability Rating:

UL94 V-0

Package:

Bulk

Stripping Length:

9mm

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Current - IEC:

24 A

Number of Levels:

1

Wire Gauge or Range - AWG:

12-26 AWG

Voltage - UL:

300 V

standardLeadTime:

9 Weeks

Terminal - Width:

5.2mm

Voltage - IEC:

500 V

Features:

-

Mounting Type:

DIN Rail

Series:

CLIPLINE UT

Length:

1.874" (47.60mm)

Current - UL:

20 A

ECCN:

EAR99
