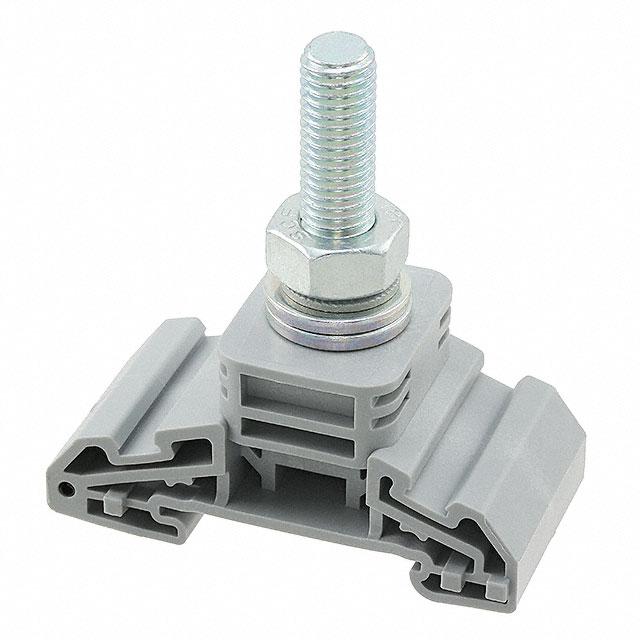

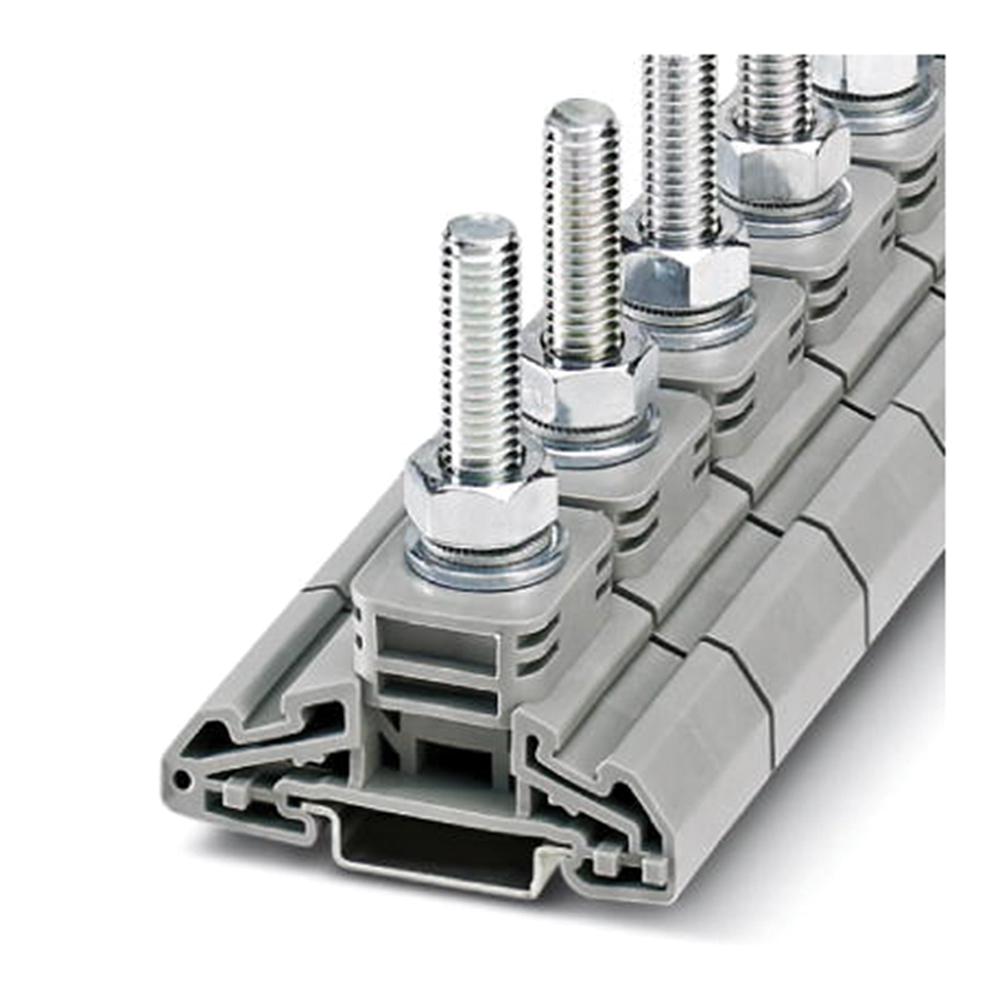

3049408 Phoenix Contact , Grey Post Terminal Block
3049408 Phoenix Contact , Grey Post Terminal Block
3049408 Phoenix Contact , Grey Post Terminal Block

The Phoenix Contact 3049408 is a high-performance, DIN-rail mounting solution engineered for global electrical and automation systems. Rated for 269 A and 1 kV, this robust, single-position stud terminal block supports wire sizes from 6 to 120 mm² (or 250 kcmil–10 AWG), making it ideal for demanding industrial, renewable energy, and power distribution applications worldwide. Constructed from flame‑retardant UL94 V‑0 polyamide and compliant with RoHS3 and REACH standards, the 3049408 combines safety, durability, and sustainability. Compact yet powerful, it ensures reliable high-current connections across diverse environments and markets.

Why Buy the Phoenix Contact Grey Post Terminal Block?

The Phoenix Contact 3049408 offers high current and voltage ratings, broad wire size compatibility, and DIN-rail mounting, simplifying installation in tight panels. Polyamide construction offers UL94 V‑0 flame resistance and environmental peace of mind via RoHS3 and REACH compliance.

Unmatched Benefits to Users

  • Exceptional current capacity (269 A) and voltage rating (1 kV) for heavy-duty power applications.
  • Supports wide wire range (6–120 mm² / 250 kcmil–10 AWG) for installation flexibility.
  • Flame-retardant polyamide housing (UL94 V‑0) ensures safety and durability.
  • Compliance with RoHS3 and REACH, reflecting environmental responsibility and market readiness.
  • Space-saving, single-position design for efficient panel layouts with DIN-rail mounting.

Product Use Cases

  • Industrial power distribution and switchgear assemblies
  • Renewable energy installations (solar, wind) requiring robust high-current links
  • Control cabinets in manufacturing and automation systems
  • Heavy-duty machinery and equipment wiring
  • Utility substation and infrastructure power connectivity use cases

RoHs Compliant

Phoenix Contact , Grey Post Terminal Block

Manufacturer:
Phoenix Contact
Manufacturer Part No:
3049408
Enrgtech Part No:
ET12316408
Warranty:
Manufacturer
£ 19.33 £ 13.53
Checking for live stock
Series:
HV M10/1
Current Rating:
269A
Accessory Type:
Bridge Screw
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Stud
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-
Type:
Post - Single
Number of Positions:
1
Wire Gauge or Range - mm²:
6-120mm²
Height (Max):
3.287" (83.50mm)
REACH Status:
REACH Unaffected
Housing Color:
Gray
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Stripping Length:
-
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
269 A
Number of Levels:
1
Wire Gauge or Range - AWG:
250MCM (kcmil)-10 AWG
standardLeadTime:
4 Weeks
Terminal - Width:
32.0mm
Voltage - IEC:
1 kV
Features:
-
Mounting Type:
DIN Rail
Series:
CLIPLINE HV
Length:
2.638" (67.00mm)
ECCN:
EAR99
pdf icon
Datasheet(Technical Reference)
