Static RAM, Alliance Memory
The AS6C1008 is well designed for very low power system applications, and particularly well suited for battery back-up non-volatile memory application. The AS6C62256 is a 262,144-bit low power CMOS static random access memory organized as 32,768 words by 8 bits. The AS6C62256 operates with wide range power supply 2.7 ∼ 5.5V. Package: 28-pin 600 mil PDIP

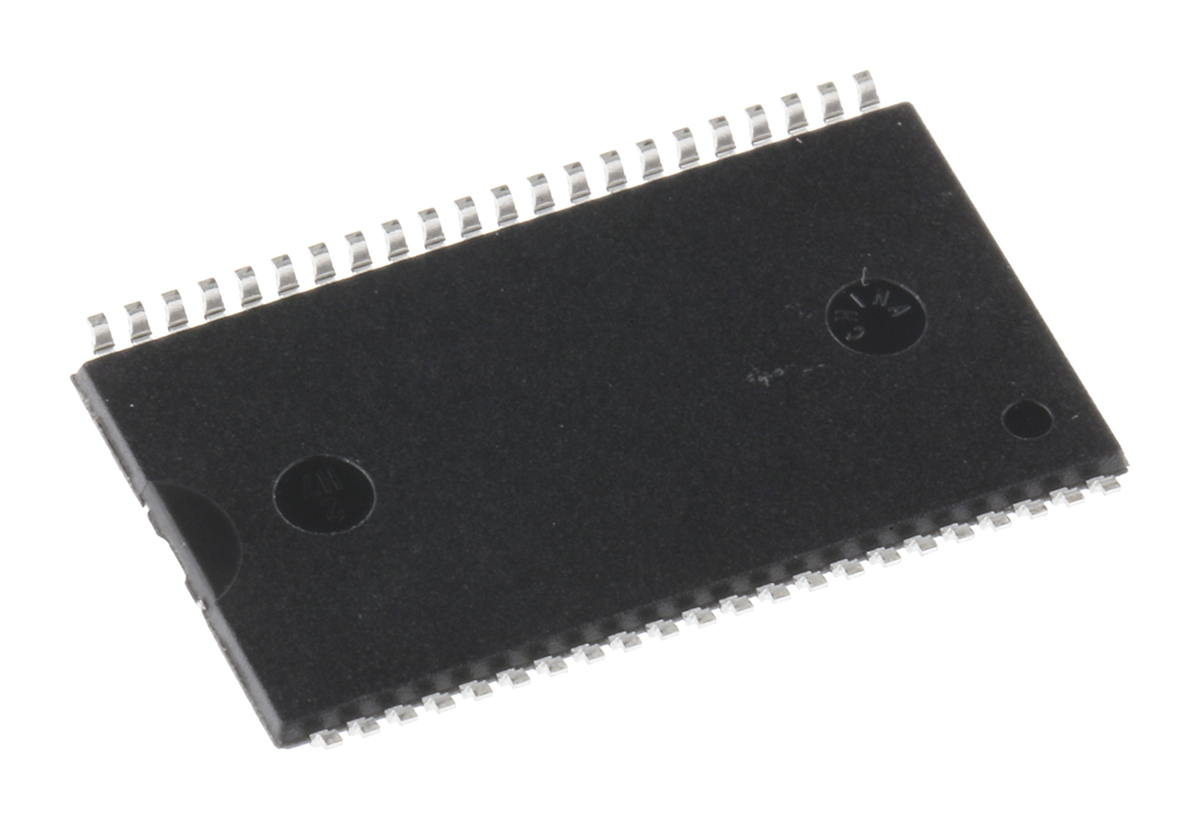

SRAM, AS6C8008-55ZIN- 8Mbit
Manufacturer:
Alliance Memory
Manufacturer Part No:
AS6C8008-55ZIN
Enrgtech Part No:
ET16797084
Warranty:
Manufacturer
£ 5.93
Checking for live stock
Memory Size:
8Mbit
Organisation:
1024k x 8 bit
Number of Words:
1M
Number of Bits per Word:
8bit
Maximum Random Access Time:
55ns
Address Bus Width:
20bit
Low Power:
Yes
Timing Type:
Asynchronous
Mounting Type:
Surface Mount
Package Type:
TSOP
Pin Count:
44
Dimensions:
18.42 x 10.16 x 1mm
