BK Series Multipin Terminal Strips
BK series multipole terminal strils for direct mounting.
Rated cross-section: 4 mm²
Screw connection
Direct mounting
829-8747 - 4mm²; 2 Terminals; 4 Connections
829-6697 - 4mm²; 4 Terminals; 8 Connections
829-6678 - 4mm²; 6 Terminals; 12 Connections
829-8719 - 4mm²; 12 Terminals; 24 Connections
Screw connection
Direct mounting
829-8747 - 4mm²; 2 Terminals; 4 Connections
829-6697 - 4mm²; 4 Terminals; 8 Connections
829-6678 - 4mm²; 6 Terminals; 12 Connections
829-8719 - 4mm²; 12 Terminals; 24 Connections

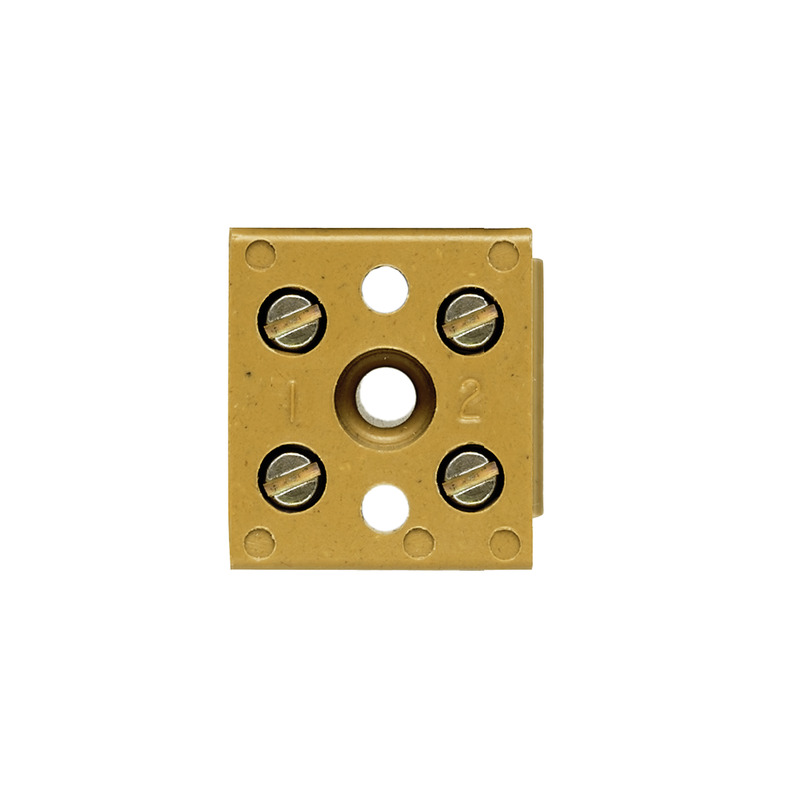

Weidmüller 0624720000 Weidmuller BK Series Terminal Strip, 2-Way, 32A, 22 → 12 AWG Wire
Manufacturer:
WeidmüllerManufacturer Part No:
0624720000
Enrgtech Part No:
ET17736736
Warranty:
Manufacturer
£ 1.38
Checking for live stock
Number of Ways:
2
Current Rating:
32A
Wire Size:
22 → 12 AWG
Mounting Type:
Direct Mounting
Fused:
No
Material:
KrG
Voltage Rating:
400 V
Series:
BK
Minimum Operating Temperature:
-60°C
Cable CSA:
4mm²
Colour:
Yellow
Maximum Operating Temperature:
+130°C
