KW series (PowerStor) Super Capacitors
ultra-high capacitance devices utilizing electrochemical double layer capacitor (EDLC) construction combined with new, high performance materials
A wide range of high capacitance coin cell style products
Low leakage current, long cycle life and Eco-friendly
Suitable for RTC back-up, Electricity utility meters and motor control units
Low leakage current, long cycle life and Eco-friendly
Suitable for RTC back-up, Electricity utility meters and motor control units

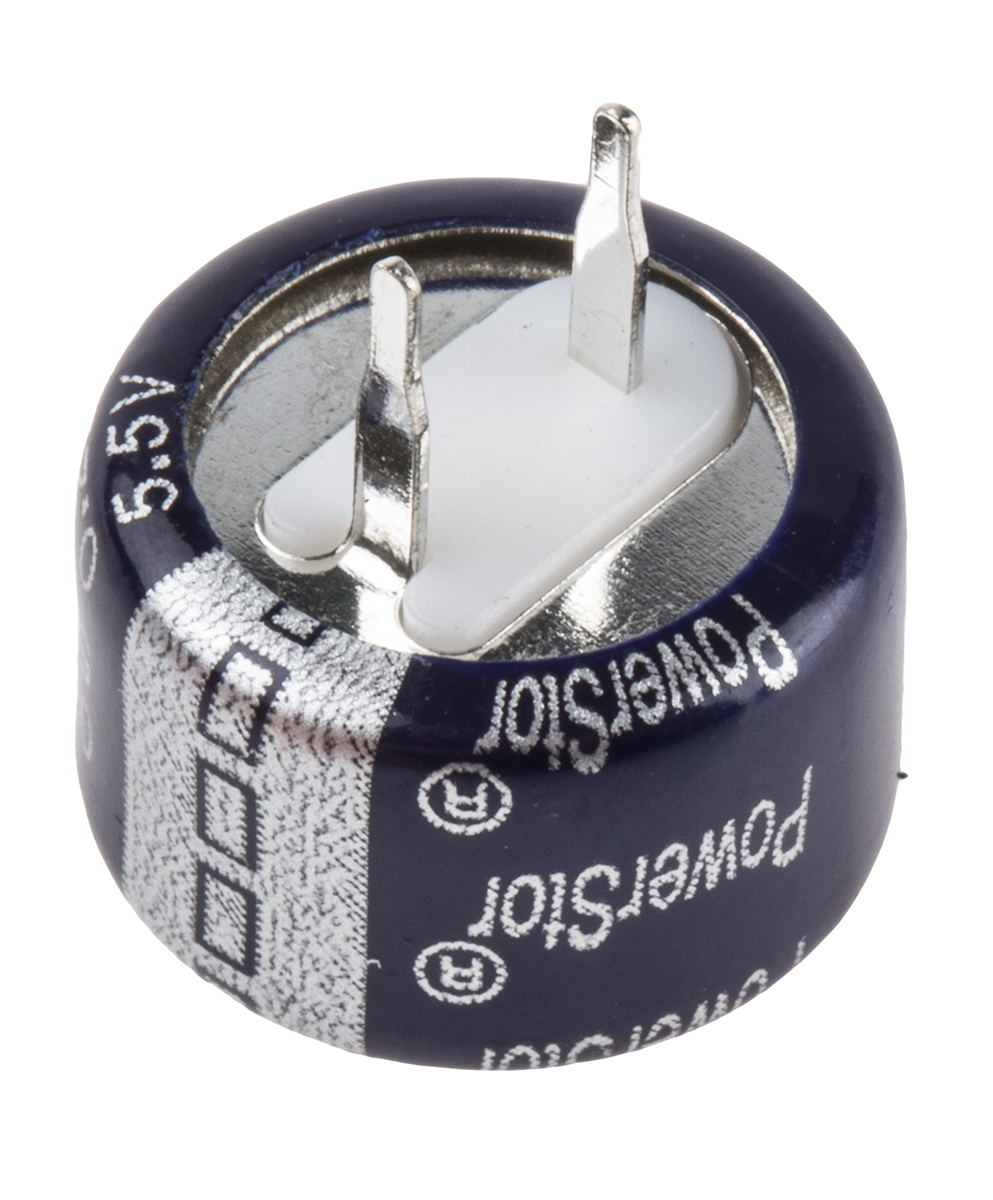

0.22F Supercapacitor -20 → +80% Tolerance, 5.5V dc, Through Hole
Manufacturer:
Eaton
Manufacturer Part No:
KW-5R5C224-R
Enrgtech Part No:
ET11989863
Warranty:
Manufacturer
£ 2.67
Checking for live stock
Capacitance:
0.22F
Voltage:
5.5V dc
Mounting Type:
Through Hole
Minimum Operating Temperature:
-40°C
Maximum Operating Temperature:
+85°C
Diameter:
13.5mm
Height:
8.3mm
Dimensions:
13.5 x 8.3mm
Lead Pitch:
5mm
Equivalent Series Resistance:
50Ω
Lifetime:
1000h
Series:
Bussmann, Supercap KW
