FC Series SMT Super Capacitors
KEMET FC Supercapacitors are surface mount capacitors for use with high energy applications. These supercapacitors are designed especially for reflow soldering, allowing them to be attached to the printed circuit board directly.
Features
Wide range of temperature from −25°C to +70°C
Surface mount without holder
Operational Voltage: 3.5 to 5.5 V dc
Highly reliable against liquid leakage
Maintenance free
Applications Low voltage DC hold-up applications
Embedded microprocessor systems with flash memory.
Supercapacitors can be used like a secondary battery when applied in a DC circuit
Surface mount without holder
Operational Voltage: 3.5 to 5.5 V dc
Highly reliable against liquid leakage
Maintenance free
Applications Low voltage DC hold-up applications
Embedded microprocessor systems with flash memory.
Supercapacitors can be used like a secondary battery when applied in a DC circuit

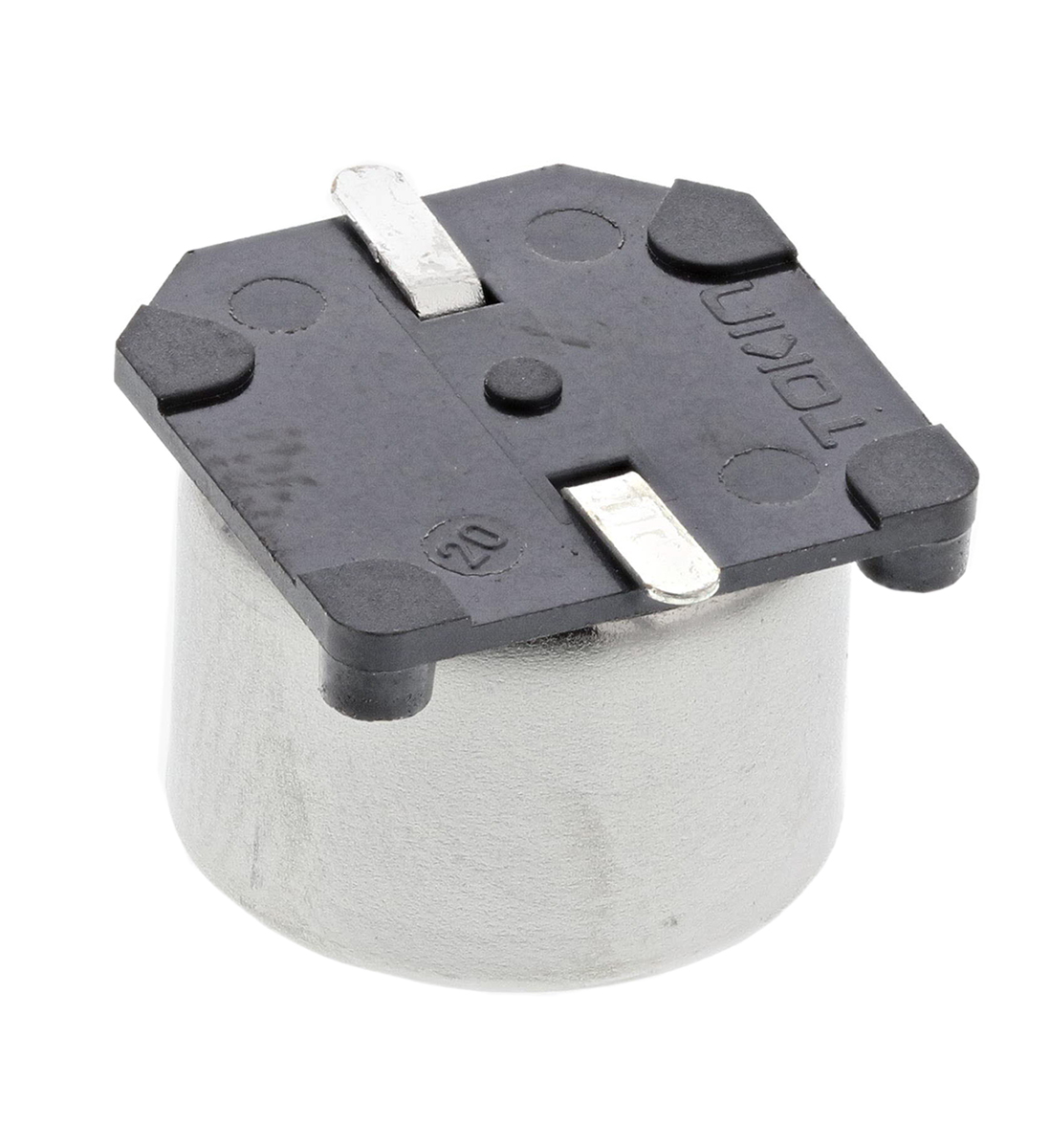

0.22F Supercapacitor -20 → +80% Tolerance, Supercap FC 5.5V dc, Surface Mount
Manufacturer:
KEMET
Manufacturer Part No:
FC0H224ZFTBR24
Enrgtech Part No:
ET12200583
Warranty:
Manufacturer
£ 2.37
Checking for live stock
Capacitance:
0.22F
Voltage:
5.5V dc
Mounting Type:
Surface Mount
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
+70°C
Diameter:
10.5mm
Dimensions:
10.8 x 10.8 x 8.5mm
Lead Pitch:
5mm
Equivalent Series Resistance:
25Ω
Series:
Supercap FC
Tolerance:
-20 → +80%
Terminal Type:
Surface Mount
