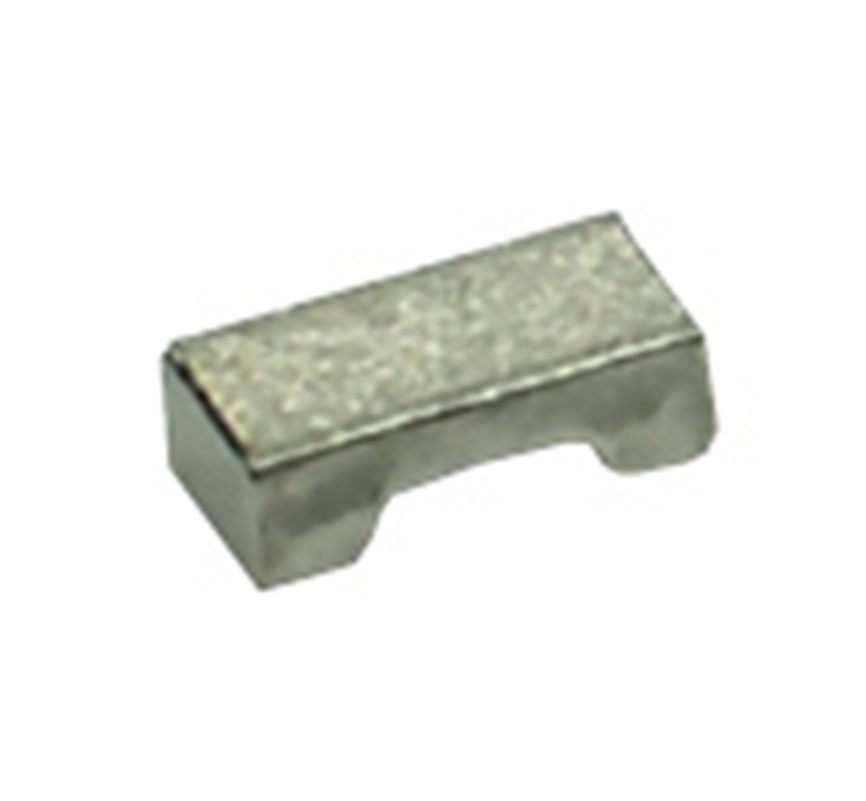

1786572 KOA SMD Resistor The KOA TLRZ series is a metal strip surface mount, 0402 package, fixed resistor with a resistance of 500μohm. The current rating of the resistor is 10A and the temperature coefficient is ±100ppm/°C. It uses Sn as termination material. Features and Benefits • High reliability and performance with T. C. R ±100x10-6/K
• Low height suitable for the use of small equipment such as a mobile phone
• Operating temperature ranges between -55°C and 170°C
• SMD type of small size, metal plate low resistance resistor for current detection
• Suitable for reflow soldering
• TD packaging and 7inch 4mm pitch with a punch paper Applications • Current detection circuit
• Mobile phone Certifications • AEC-Q200 qualified
