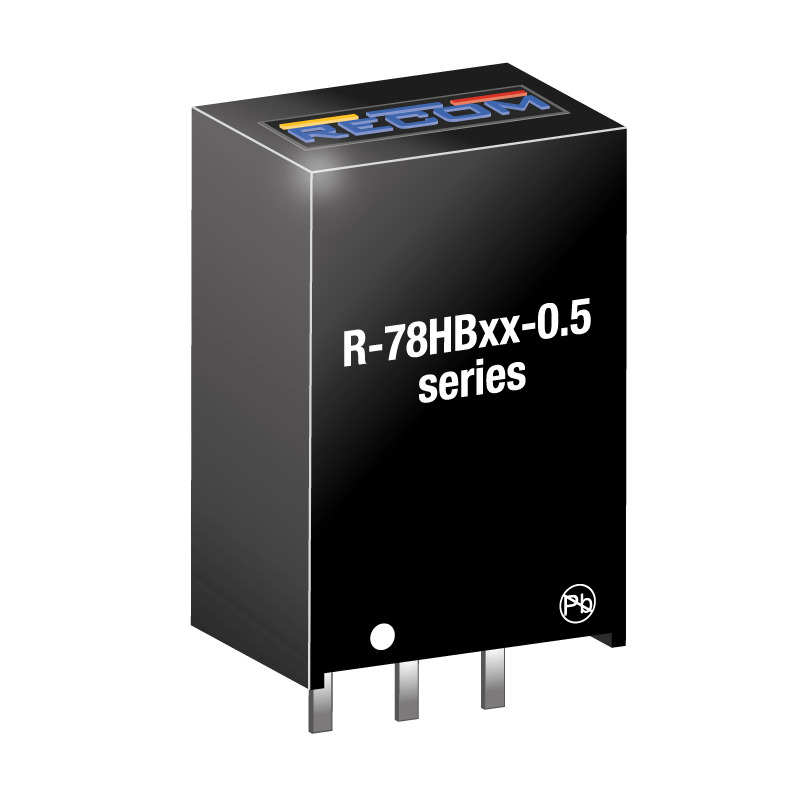

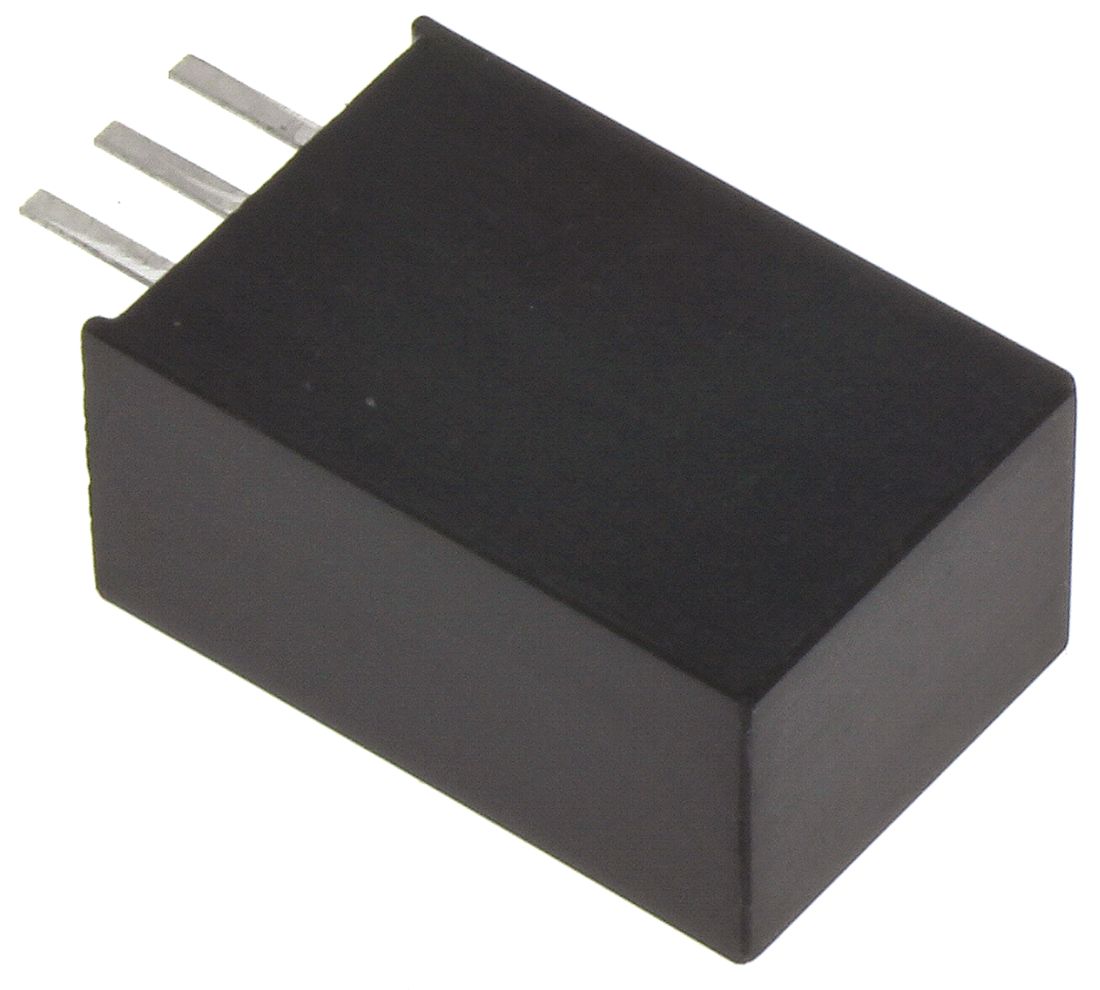

Switching Regulator, Through Hole, 15V dc Output Voltage, 20 → 72V dc Input Voltage, 500mA Output Current,

Output Voltage:

15V dc

Output Current:

500mA

Input Voltage:

20 → 72V dc

Mounting Type:

Through Hole

Number of Outputs:

1

Package:

SIP

Power Rating:

7.5W

Efficiency:

91%

Ripple And Noise:

20mV Pk-Pk

Maximum Temperature:

+85°C

Minimum Temperature:

-40°C

Series:

R-78HB-0.5

Line Regulation:

±1%

MTBF:

7395000h

Depth:

17.5mm

Weight:

4g

Length:

11.5mm

Load Regulation:

±0.6%

Width:

8.5mm
