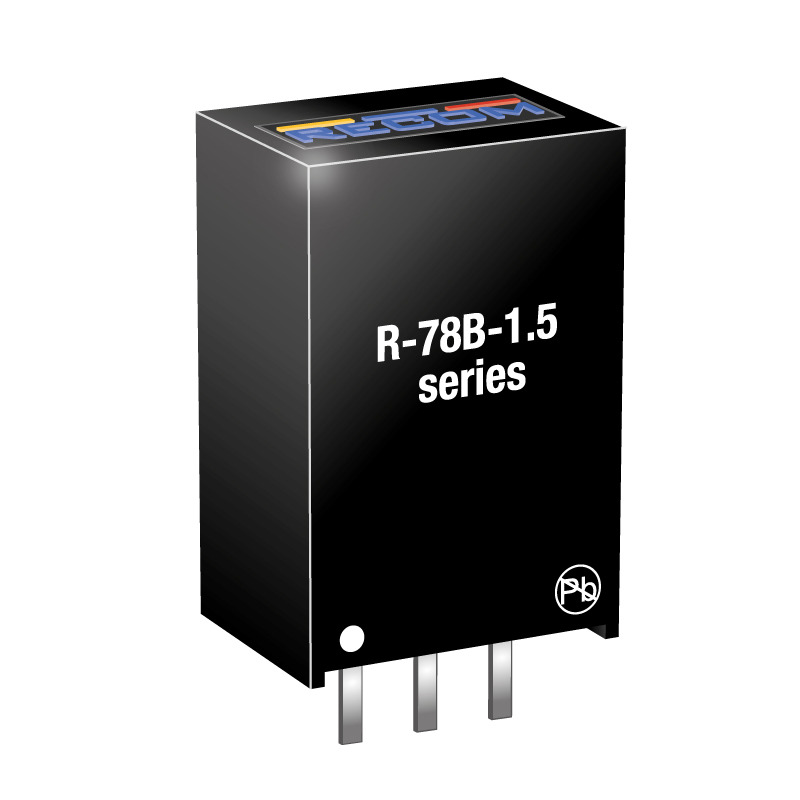

R-78Bxx-1.5 Series
Non isolated
Medical safety approval EN-60601-1-2
No need for heat sinks
High efficiency
Wide input voltage range, up to 18V
Thermal shutdown and continuous short circuit protection
Low ripple and noise
Low profile
Pin-out compatible with LM78XX Linear regulators
SIP3 package
Medical safety approval EN-60601-1-2
No need for heat sinks
High efficiency
Wide input voltage range, up to 18V
Thermal shutdown and continuous short circuit protection
Low ripple and noise
Low profile
Pin-out compatible with LM78XX Linear regulators
SIP3 package
Switching Regulator, Through Hole, 5V dc Output Voltage, 6.5 → 18V dc Input Voltage, 1.5A Output Current,
Manufacturer:
Recom
Manufacturer Part No:
R-78B5.0-1.5
Enrgtech Part No:
ET14143921
Warranty:
Manufacturer
£ 9.30
Checking for live stock
Output Voltage:
5V dc
Output Current:
1.5A
Input Voltage:
6.5 → 18V dc
Mounting Type:
Through Hole
Number of Outputs:
1
Package:
SIP
Power Rating:
7.5W
Efficiency:
92%
Ripple And Noise:
30mV Pk-Pk
Maximum Temperature:
+85°C
Minimum Temperature:
-40°C
Series:
R-78B-1.5
