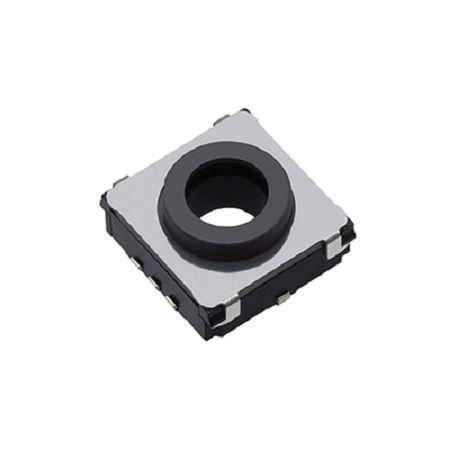

The Panasonic 10 mm square centre space long travel SMD light touch switch. The open centre space allows for flexibility in choosing a LED up to a 4.2 mm diameter chip LED can be mounted. It supports auto reflow soldering.
Control switches for automotive electronic equipment, such as car audio systems and heater control panels
Type snap action/push-on type SPST
Electrical rating 10 μA 2 Vdc to 50 mA 12 Vdc (Resistive load)
Operating temperature between –40 °C to +85 °C
Type snap action/push-on type SPST
Electrical rating 10 μA 2 Vdc to 50 mA 12 Vdc (Resistive load)
Operating temperature between –40 °C to +85 °C
Black, Grey Push Plate Tactile Switch, SPST 20 mA Surface Mount
Manufacturer:
Panasonic
Manufacturer Part No:
EVPADK04K
Enrgtech Part No:
ET23136799
Warranty:
Manufacturer
£ 1.24
Checking for live stock
Contact Configuration:
SPST
Terminal Type:
J Bend
Switch Operation:
Push-On
Actuator Colour:
Black, Grey
Actuator Type:
Push Plate
Mounting Type:
Surface Mount
Contact Current Rating:
20 mA
