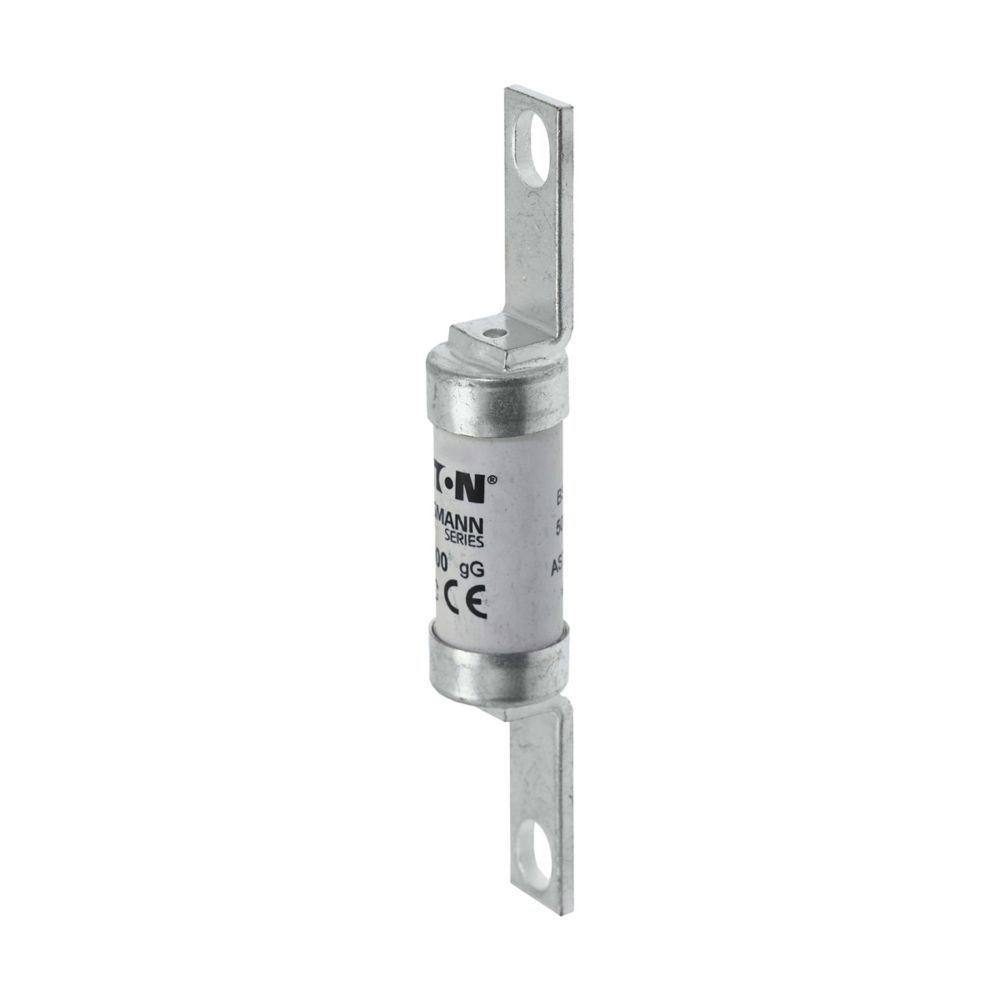

Eaton Bolted Tag Fuse, 100A, 500V AC CD100 Protect your appliances from current overloads with this bolted tag fuse from Eaton. It's secured by brackets that latch it onto the fuse holder and won't be shaken loose during vibration, providing stability in heavy-duty systems. The unit has a rated switching capacity of 80kA, which means it can operate safely within a wide current threshold. With a current rating of 100A, you can rely on it for use in medium-voltage applications. Fuses like this are used in general industrial appliances in need of cable protection. • Centred tag orientation for quick and easy fitting and replacement
• Compact dimensions of 126 (L) x 21mm (D) for installation in cramped enclosures
• Conductive metal brackets for a reliable connection and corrosion resistance What's the rupture capacity for this fuse? This fuse has a high rupture capacity of 80,000A to interrupt short-circuit and overload currents and provide safety against equipment damages. What does the gG application category mean? Good peak let-through current limitation
1:1:6 Selective coordination ratio between “minor” and “major” fuse
gG characteristics for cable protection and gM for motor protection applications The gG application category means this is a general-purpose fuse that will protect equipment from short-circuit faults.

Eaton 100A Bolted Tag Fuse, B1, 500V ac, 111mm

Manufacturer:
Manufacturer Part No:
CD100
Enrgtech Part No:
ET10180119
Warranty:
Manufacturer
Checking for live stock
Current Rating:
100A
Fuse Size:
B1
Voltage Rating:
500V ac
Fuse Standard:
BS88, IEC 60269
Fixing Centres:
111mm
Application Category:
gG
Tag Width:
14.3mm
High Rupture Capacity:
Yes
Overall Length:
126mm
Body Diameter:
21mm
Tag Type:
Bolted
Tag Orientation:
Centred
Body Length:
58.5mm
Body Width:
21mm
Body Height:
21mm
Fuse Dimensions:
21 x 126 mm
pdf icon
Datasheet CD100-1170d1e0(datasheets)
pdf icon
Catalogue - Low Voltage Fuse Links and Fuse Holders Catalogue-a0c4da96(datasheets)
