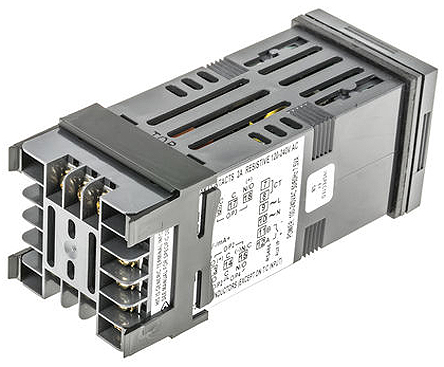

West Instruments Temperature Controller The West Instruments P6100 series temperature controller has a supply voltage rating ranging from 24VAC to 48VAC or DC. This controller has a width of 48mm and a height of 48mm(1/16 DIN) device. It has a thermocouple input and relay output. It is designed to incorporate improvements, save time, reduce inventory stock and virtually eliminates the likelihood of operator errors. It has versatile features and user-friendly functionalities. This features includes remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumper-less and auto-hardware configuration, as well as 24VDC transmitter power supply. The 6100 plus provides a product that surpasses competitive offerings in terms of ease of use, delivery and value for money. Features and Benefits Red upper and green lower display colour
Adjustable hysteresis
Auto-hardware recognition
Backward compatible panel cut-out, housing and terminal wiring capability
Dual set points with optional remote selection
Expanded user-selectable operator modes
Faster communication speeds and more security options
Improved easy to use HMI
Improved windows PC configuration software
Jumper-less input configuration
Optional 10V SSR driver
Optional analogue remote set point input
Plug in output module allows installing just the functions needed
Process and loop alarms
User-selectable plug-and-play output cards Certifications CE certified
IP20 rated
IP66 rated
UL listed
