MAX6660 Temperature Sensor & Fan Controller
The MAX6660 remote temperature sensor & fan controller converts temperature measurements and then compares these measurements to the pre-programmed fan threshold temperature and gain setting. The fan speed is voltage controlled which reduces acoustic noise.
Ideal applications include PCs and notebooks, telecom systems, servers, workstations and industrial control systems.
Features;
2Wire serial interface
User-programmable fan threshold temperature
User-programmable temperature range for full-scale fan speed
User-programmable under/overtemperature alarms
Ideal applications include PCs and notebooks, telecom systems, servers, workstations and industrial control systems.
Features;
2Wire serial interface
User-programmable fan threshold temperature
User-programmable temperature range for full-scale fan speed
User-programmable under/overtemperature alarms

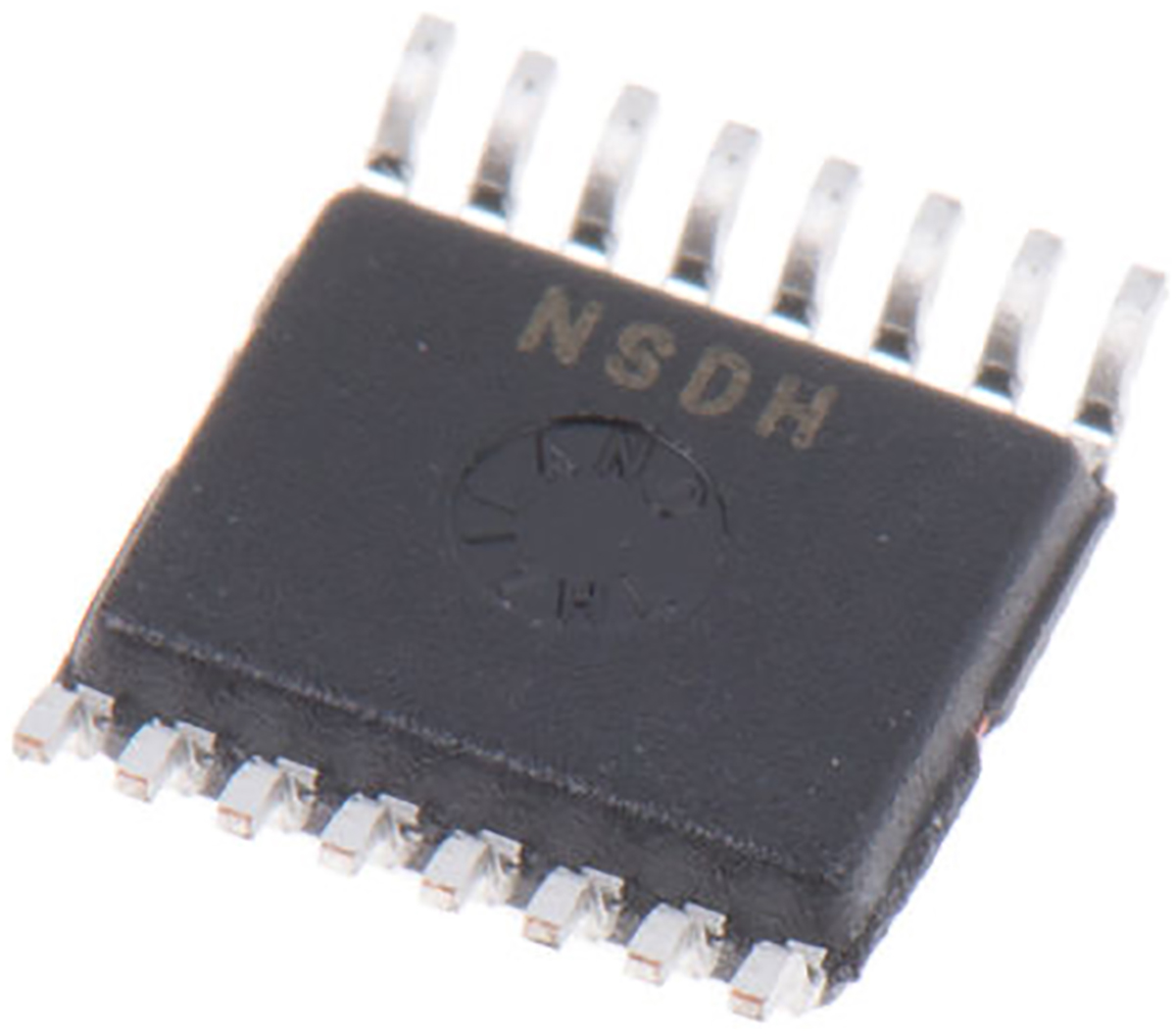

Temperature Sensor, Surface Mount, SMBus, ±1°C, 16 Pins
Manufacturer:
Maxim Integrated
Manufacturer Part No:
MAX6660AEE+
Enrgtech Part No:
ET11749201
Warranty:
Manufacturer
£ 3.69
Checking for live stock
Sensor Function:
Temperature
Interface Type:
SMBus
Accuracy:
±1°C
Mounting Type:
Surface Mount
Pin Count:
16
Operating Temperature Range:
-40 to +125 °C
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+125 °C
Minimum Operating Supply Voltage:
3 V
Maximum Operating Supply Voltage:
5.5 V
Package Type:
QSOP
Length:
4.98mm
