STD/STL/STT/STCN/STLM Digital Temperature Sensors & Thermal Watchdog
The STD/STL/STT/STCN/STLM series of CMOS digital temperature sensors & thermal watchdog have been designed to monitor and measure temperature using an on-chip band gap temperature sensor and ADC that converts temperature into digital form.
Typical applications include PCs, industrial controllers, electronics equipment and system thermal management.
Features;
I²C serial interface
-55°C to +125°C temperature range
2.7 V to 5.5 V operating voltage range
125 μA operating current
Shutdown mode
Typical applications include PCs, industrial controllers, electronics equipment and system thermal management.
Features;
I²C serial interface
-55°C to +125°C temperature range
2.7 V to 5.5 V operating voltage range
125 μA operating current
Shutdown mode

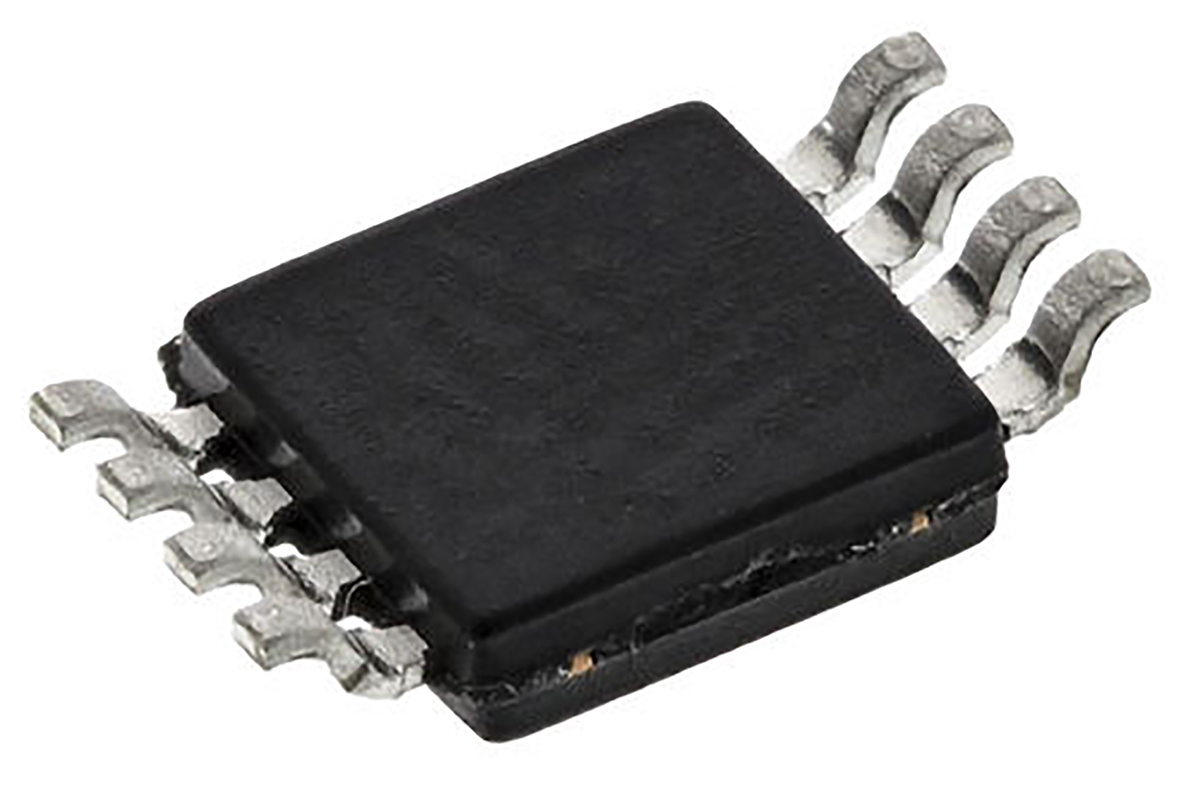

Temperature Sensor, Digital Output, Surface Mount, Serial-I2C, SMBus, ±3°C, 8 Pins
Manufacturer:
STMicroelectronics
Manufacturer Part No:
STCN75DS2F
Enrgtech Part No:
ET12075155
Warranty:
Manufacturer
£ 0.22
Checking for live stock
Sensor Function:
Temperature
Output Type:
Digital
Interface Type:
Serial-I2C, SMBus
Accuracy:
±3°C
Mounting Type:
Surface Mount
Pin Count:
8
Minimum Operating Temperature:
-55 °C
Operating Temperature Range:
-55 to +125 °C
Maximum Operating Temperature:
+125 °C
Minimum Operating Supply Voltage:
2.7 V
Maximum Operating Supply Voltage:
5.5 V
Package Type:
MSOP
