Phoenix Contact TCP Thermal Circuit Breaker
The compact TCP range of miniature thermal circuit breakers from Phoenix contacts have an integrated switching function which enables instant re-closure to ensure the availability of the system.
Features and Benefits
• IP40 rating
• Slow blow fuse
• Only 8.2mm wide
• Re-closable
• Available with nominal current levels from 0.1 to 10 A
• Screw or spring cage connections used as a basic terminal block
• Slow blow fuse
• Only 8.2mm wide
• Re-closable
• Available with nominal current levels from 0.1 to 10 A
• Screw or spring cage connections used as a basic terminal block

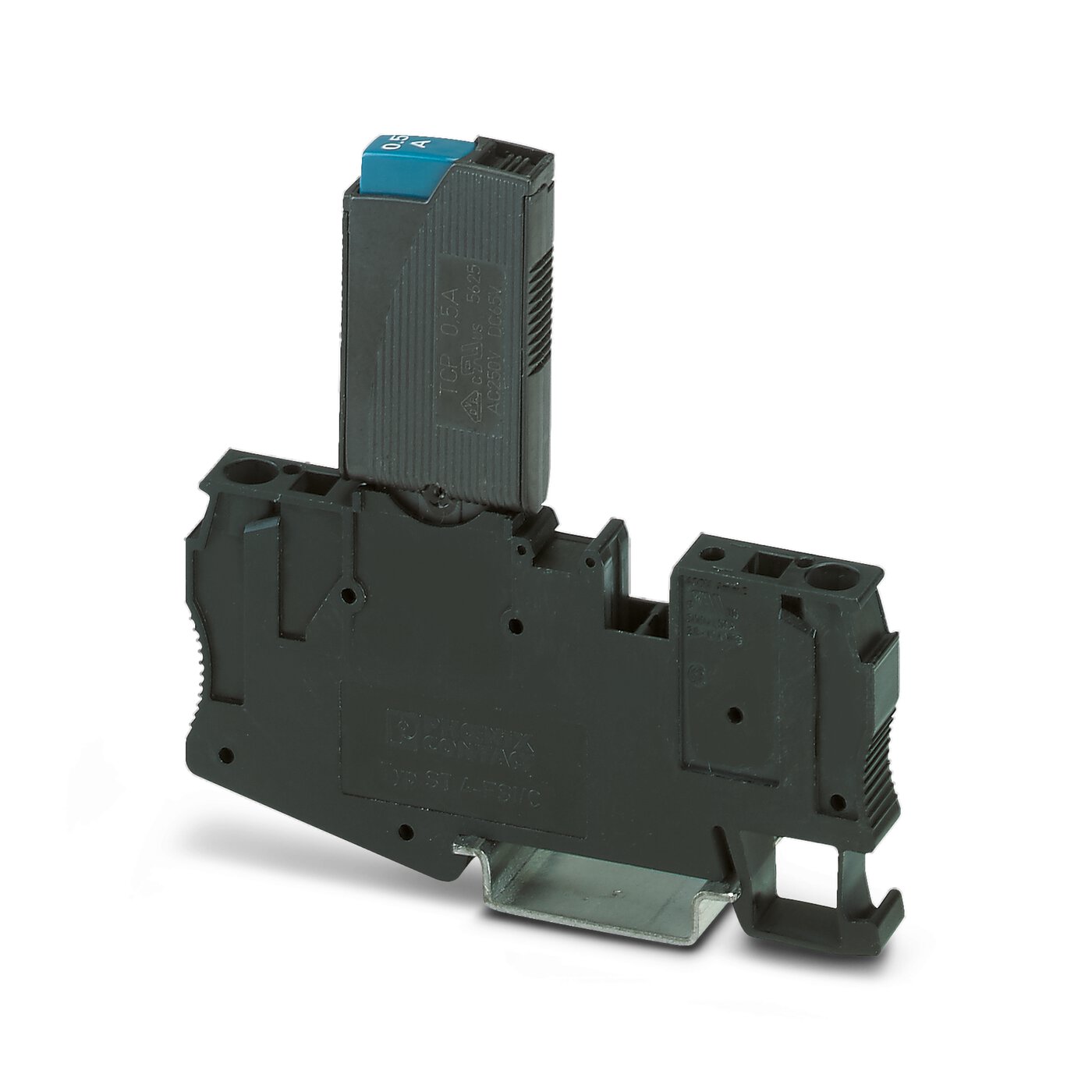

Thermal Circuit Breaker - TCP1A Single Pole 65 V dc, 250V ac Voltage Rating On Base Element, 1A
Manufacturer:
Phoenix Contact
Manufacturer Part No:
0712194
Enrgtech Part No:
ET11257096
Warranty:
Manufacturer
£ 13.89
Checking for live stock
Current Rating:
1A
Number of Poles:
1
Voltage Rating:
65 V dc, 250V ac
Width:
8.2mm
Series:
TCP1A
Tripping Mechanism:
Thermal
Tripping Characteristics:
Type C
Rated AC Voltage:
250V
Mounting Style:
On Base Element
Overall Depth:
44.5mm
Overall Length:
55mm
Circuit Breaker Type:
Thermal Magnetic Circuit Breaker
