3130 Series Thermal Circuit Breaker
Rocker switch and thermal circuit breaker (CBE) combined
Trip-free mechanism
Snap-in panel mounting
Panel thickness 1 to 2.5 mm
Blade terminals DIN 46244-C-Ms-S
Overload protection on all poles (multi-pole)
Typical life 30000 operations at nominal current rating
Main applications for motors, white goods industries, portable hand tools and transformers
IEC Classification S/TO
Trip-free mechanism
Snap-in panel mounting
Panel thickness 1 to 2.5 mm
Blade terminals DIN 46244-C-Ms-S
Overload protection on all poles (multi-pole)
Typical life 30000 operations at nominal current rating
Main applications for motors, white goods industries, portable hand tools and transformers
IEC Classification S/TO

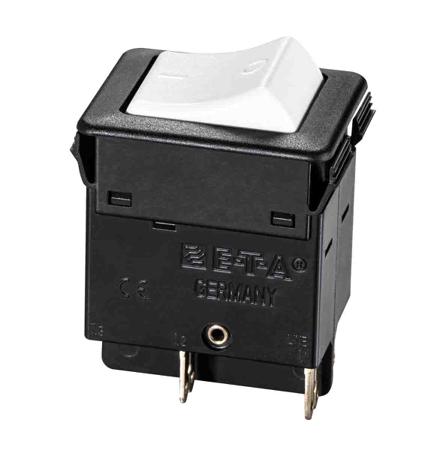

Thermal Circuit Breaker - 3130 2 Pole 240V Voltage Rating Snap In, 15A Current Rating
Manufacturer:
ETA
Manufacturer Part No:
3130-F120-P7T1-W02Q-15A
Enrgtech Part No:
ET13930797
Warranty:
Manufacturer
£ 29.11
Checking for live stock
Current Rating:
15A
Number of Poles:
2
Voltage Rating:
240V
Width:
29.5mm
Series:
3130
Tripping Mechanism:
Thermal
Reset Actuator Type:
Rocker
Rated AC Voltage:
240V
Mounting Style:
Snap In
Rated DC Voltage:
28V
Circuit Breaker Type:
Thermal Circuit Breaker
Overall Depth:
32mm
