3130 Series Thermal Circuit Breaker
Rocker switch and thermal circuit breaker (CBE) combined
Trip-free mechanism
Snap-in panel mounting
Panel thickness 1 to 2.5 mm
Blade terminals DIN 46244-C-Ms-S
Overload protection on all poles (multi-pole)
Typical life 30000 operations at nominal current rating
Main applications for motors, white goods industries, portable hand tools and transformers
IEC Classification S/TO
Trip-free mechanism
Snap-in panel mounting
Panel thickness 1 to 2.5 mm
Blade terminals DIN 46244-C-Ms-S
Overload protection on all poles (multi-pole)
Typical life 30000 operations at nominal current rating
Main applications for motors, white goods industries, portable hand tools and transformers
IEC Classification S/TO

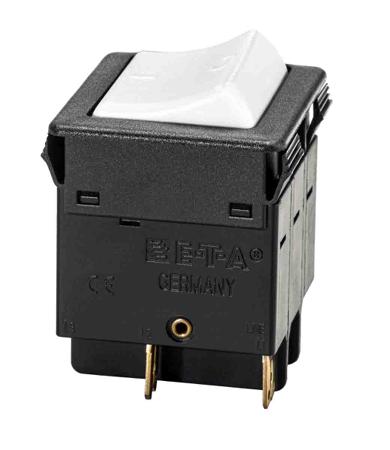

Thermal Circuit Breaker - 3130 3 Pole 240V Voltage Rating Snap In, 16A Current Rating
Manufacturer:
ETA
Manufacturer Part No:
3130-F130-P7T1-W02Q-16A
Enrgtech Part No:
ET13985150
Warranty:
Manufacturer
£ 39.90
Checking for live stock
Current Rating:
16A
Number of Poles:
3
Voltage Rating:
240V
Width:
41mm
Series:
3130
Tripping Mechanism:
Thermal
Reset Actuator Type:
Rocker
Rated AC Voltage:
240V
Mounting Style:
Snap In
Rated DC Voltage:
28V
Overall Width:
37.5mm
Overall Depth:
35mm
