GB2 Thermal Magnetic Circuit Breakers DIN rail mounted, mechanically reset protection devices. Short circuit and overload protection for control circuits and associated industrial equipment, e.g. solenoid valves, electric brakes and transformers, etc Rated operational voltage of 415V 74mm high; depth 67mm (1P) 70mm (2P) Standards IEC947-2

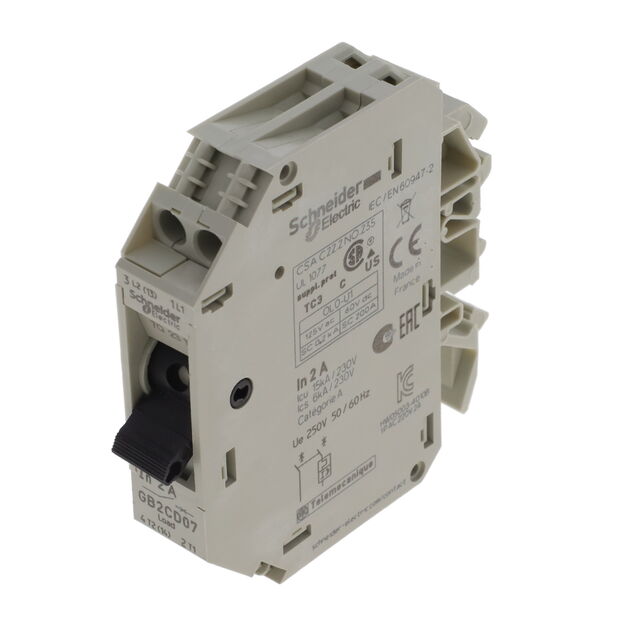

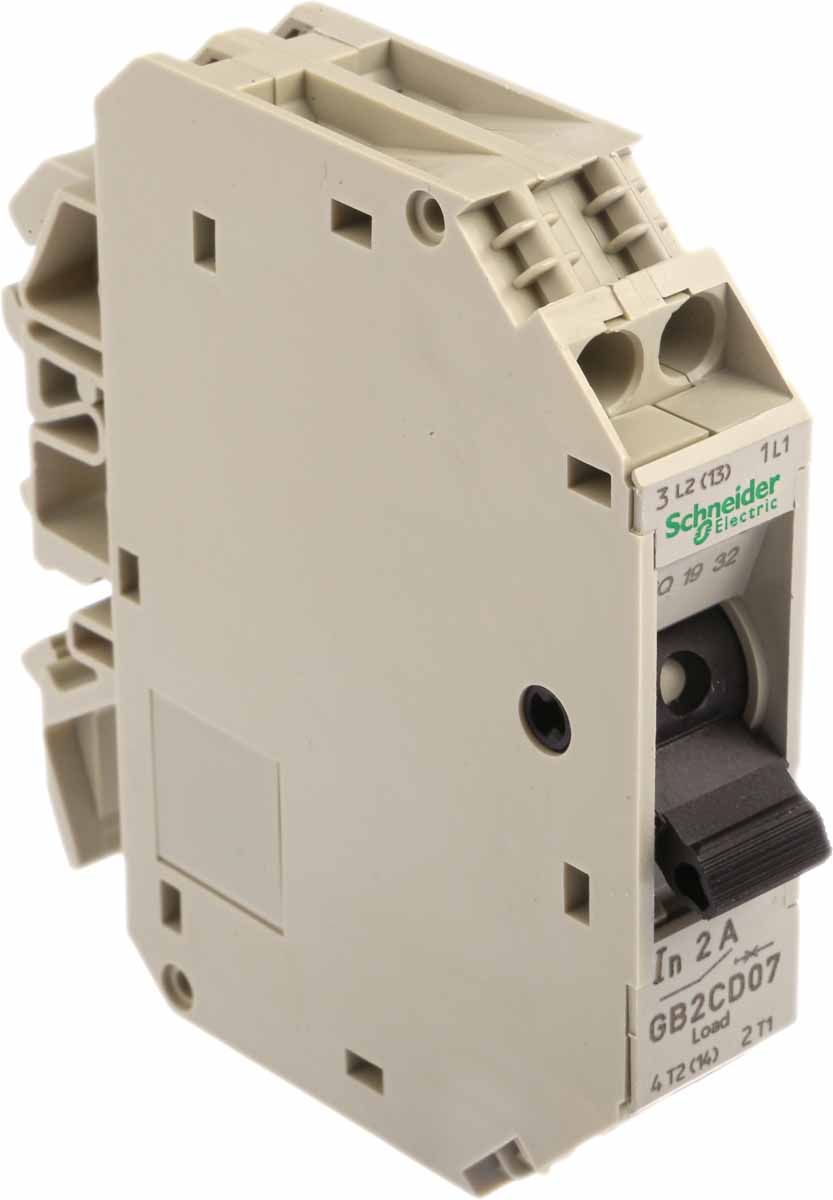

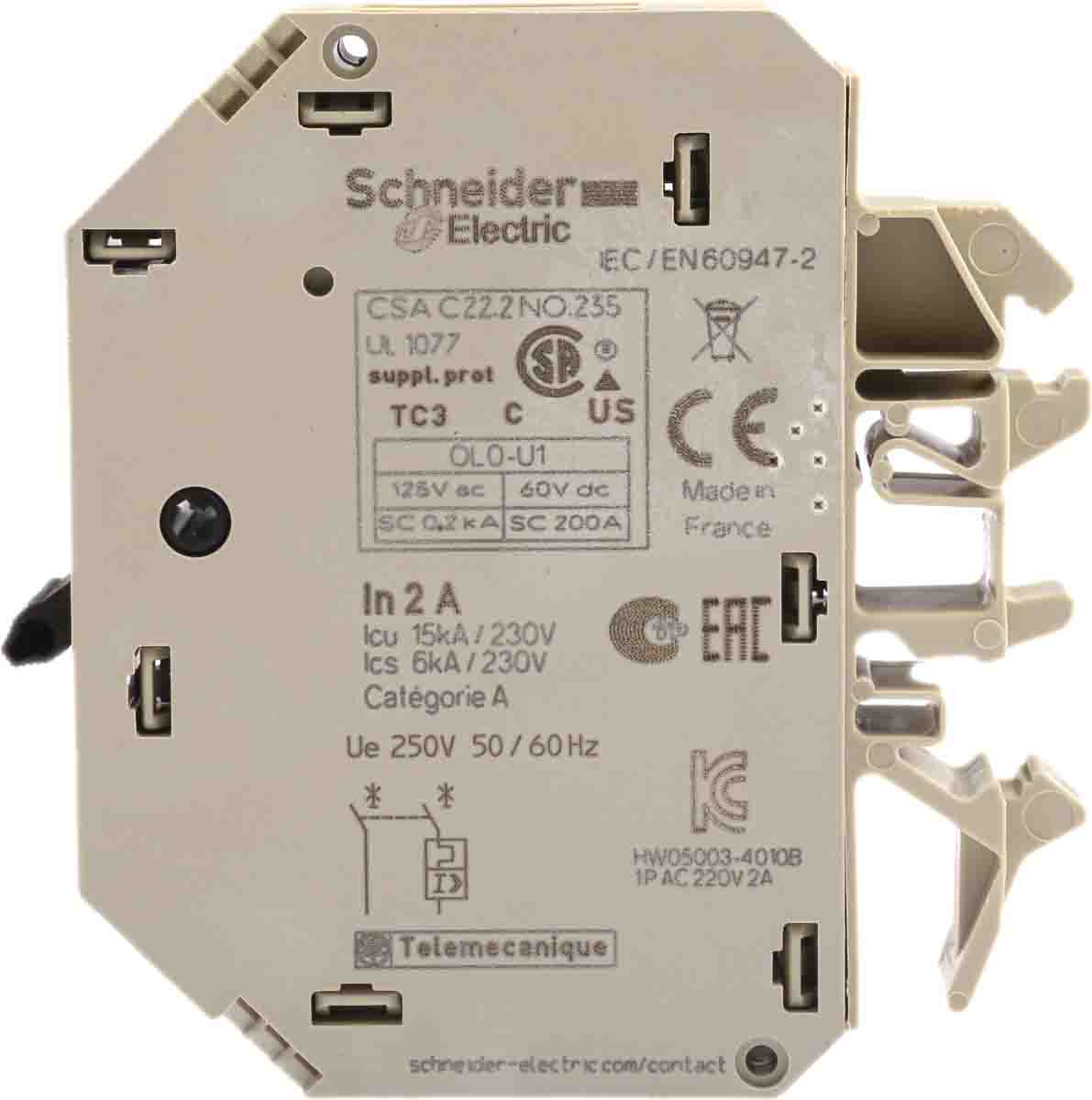

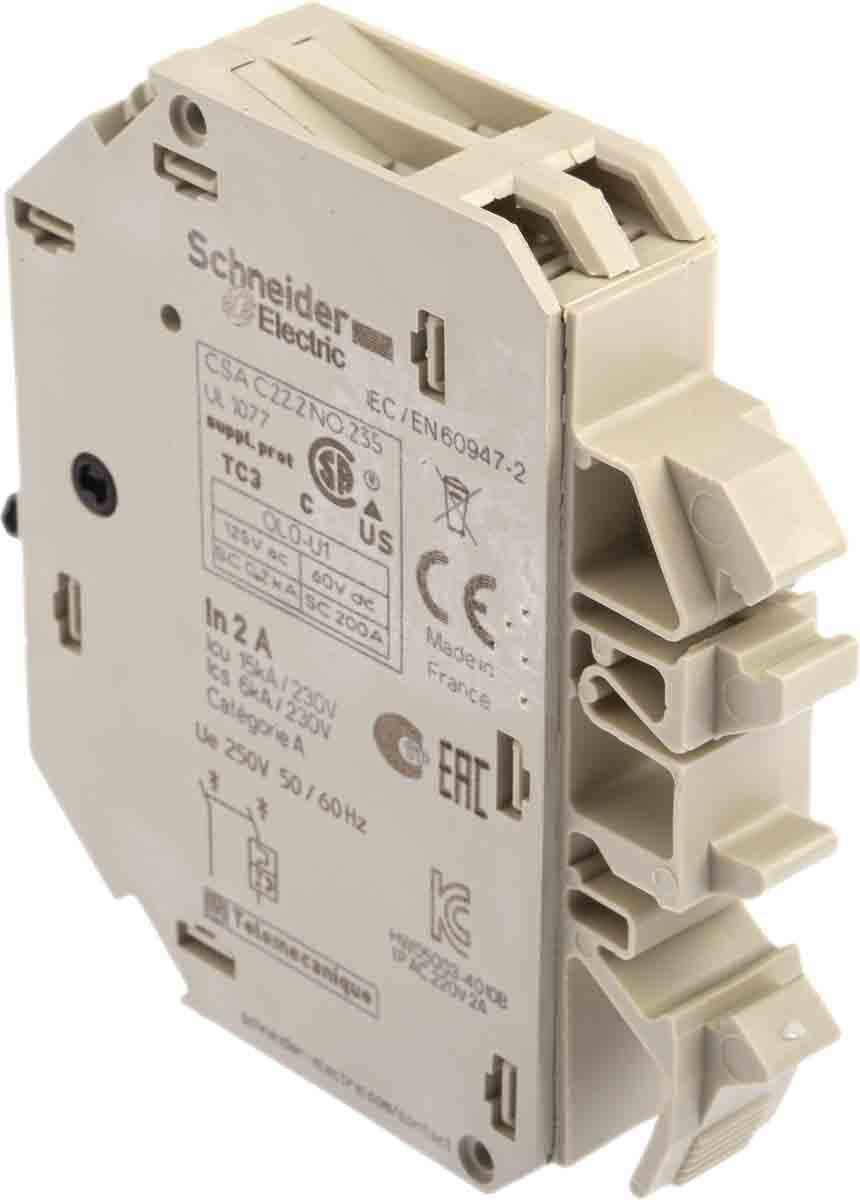

Schneider Electric 2A 1P + N Pole Thermal Magnetic Circuit Breaker, 250V ac GB2

Manufacturer:
Manufacturer Part No:
GB2CD07
Enrgtech Part No:
ET13997088
Warranty:
Manufacturer
£ 58.60
Checking for live stock
Current Rating:
2A
Voltage Rating:
250V ac
Tripping Mechanism:
Thermal-Magnetic
Series:
GB2
Circuit Breaker Type:
Thermal Magnetic Circuit Breaker
Overall Dimensions:
74 x 15 x 82mm
Breaking Capacity at Maximum Voltage Rating:
1 (dc) kA, 15 (ac) kA
Rated DC Voltage:
48V
Mounting Style:
DIN Rail Mount
Width:
15mm
Range:
TeSys
Rated AC Voltage:
250 V, 277 V
Overall Length:
74mm
Overall Depth:
82mm
Number of Poles:
1P + N
Reset Actuator Type:
Toggle Switch
HTSUS:
8536.20.0040
RoHS Status:
ROHS3 Compliant
Approval Agency:
CSA C22.2 No 235, EN 60947-1, EN 60947-2, IEC 60947-1, IEC 60947-2 , UL1077
title:
GB2CD07
Voltage Rating - AC:
277 V
REACH Status:
REACH Unaffected
Breaker Type:
Thermal Magnetic
Voltage Rating - DC:
48 V
standardLeadTime:
5 Weeks
Current Rating (Amps):
2A
Moisture Sensitivity Level (MSL):
Not Applicable
Illumination Voltage (Nominal):
-
Mounting Type:
DIN Rail
Series:
-
Packaging:
Bulk
Actuator Type:
Toggle
Illumination:
None
Number of Poles:
1
ECCN:
EAR99
pdf icon
Datasheet(Technical Reference)
pdf icon
GB2 GY GC GS1 DF6 GK1 - Declaration of Conformity(Technical Reference)
pdf icon
Section 24 Terminal Blocks(Datasheets)
pdf icon
GB2CD07(Datasheets)
