For Precision Applications, 2210 Series
Overload and short circuit protecting, DIN rail mounting, time delay type thermal-magnetic single-pole CBE, suitable for process control, telecom and other professional/precision applications, etc.
Toggle operated trip-free mechanism
Auxiliary contact (NC) for remote signalling of contact breaker status
Narrow profile enables high density packaging
Compatible with Top-hat and G-profile DIN-rail
Compatible with modular DIN 43880 housings
IEC Classification S/TM
20 - 30 second tripping time
Typical life - 5000 Ops.
Auxiliary contact (NC) for remote signalling of contact breaker status
Narrow profile enables high density packaging
Compatible with Top-hat and G-profile DIN-rail
Compatible with modular DIN 43880 housings
IEC Classification S/TM
20 - 30 second tripping time
Typical life - 5000 Ops.

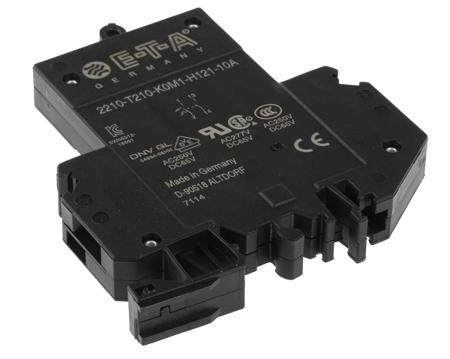

Thermal Circuit Breaker - 2210 Single Pole 277, 480V Voltage Rating DIN Rail Mount, 10A Current Rating
Manufacturer:
ETA
Manufacturer Part No:
2210-T210-K0M1-H121-10A
Enrgtech Part No:
ET18339503
Warranty:
Manufacturer
£ 49.74
Checking for live stock
Current Rating:
10A
Number of Poles:
1
Voltage Rating:
277, 480V
Width:
12.5mm
Series:
2210
Tripping Mechanism:
Thermal-Magnetic
Reset Actuator Type:
Toggle Switch
Rated AC Voltage:
277,480V
Mounting Style:
DIN Rail Mount
Rated DC Voltage:
65V
Overall Dimensions:
83.5 x 12.5 x 88.5mm
Overall Length:
83.5mm
