2-5700 Series Thermal Circuit Breaker
3/8 inch or M12 (mm) moulded thread-neck single-hole panel mounting
6.3-0.8 mm blade terminals
Small physical size
Tease free, Trip free mechanism for long life
Push to release/push to reset
On/off status indication
Overload and short circuit protection
Typical life 5000 operation at twice nominal current rating
Mainly for motors, transformers, power supplies and extra low voltage systems
IEC Classification S/TO
6.3-0.8 mm blade terminals
Small physical size
Tease free, Trip free mechanism for long life
Push to release/push to reset
On/off status indication
Overload and short circuit protection
Typical life 5000 operation at twice nominal current rating
Mainly for motors, transformers, power supplies and extra low voltage systems
IEC Classification S/TO

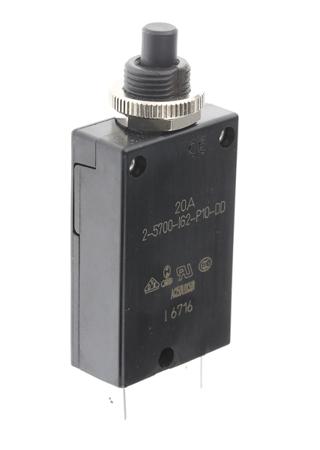

Thermal Circuit Breaker - 2 5700 Single Pole 250V Voltage Rating Panel Mount, 20A Current Rating
Manufacturer:
ETA
Manufacturer Part No:
2-5700-IG2-P10-DD-000040-20A
Enrgtech Part No:
ET18340468
Warranty:
Manufacturer
£ 22.33
Checking for live stock
Current Rating:
20A
Number of Poles:
1
Voltage Rating:
250V
Width:
15.7mm
Series:
2 5700
Tripping Mechanism:
Thermal
Reset Actuator Type:
Button
Rated AC Voltage:
250V
Mounting Style:
Panel Mount
Overall Depth:
46.5mm
Rated DC Voltage:
50V
Terminal Contact Type:
Blade
