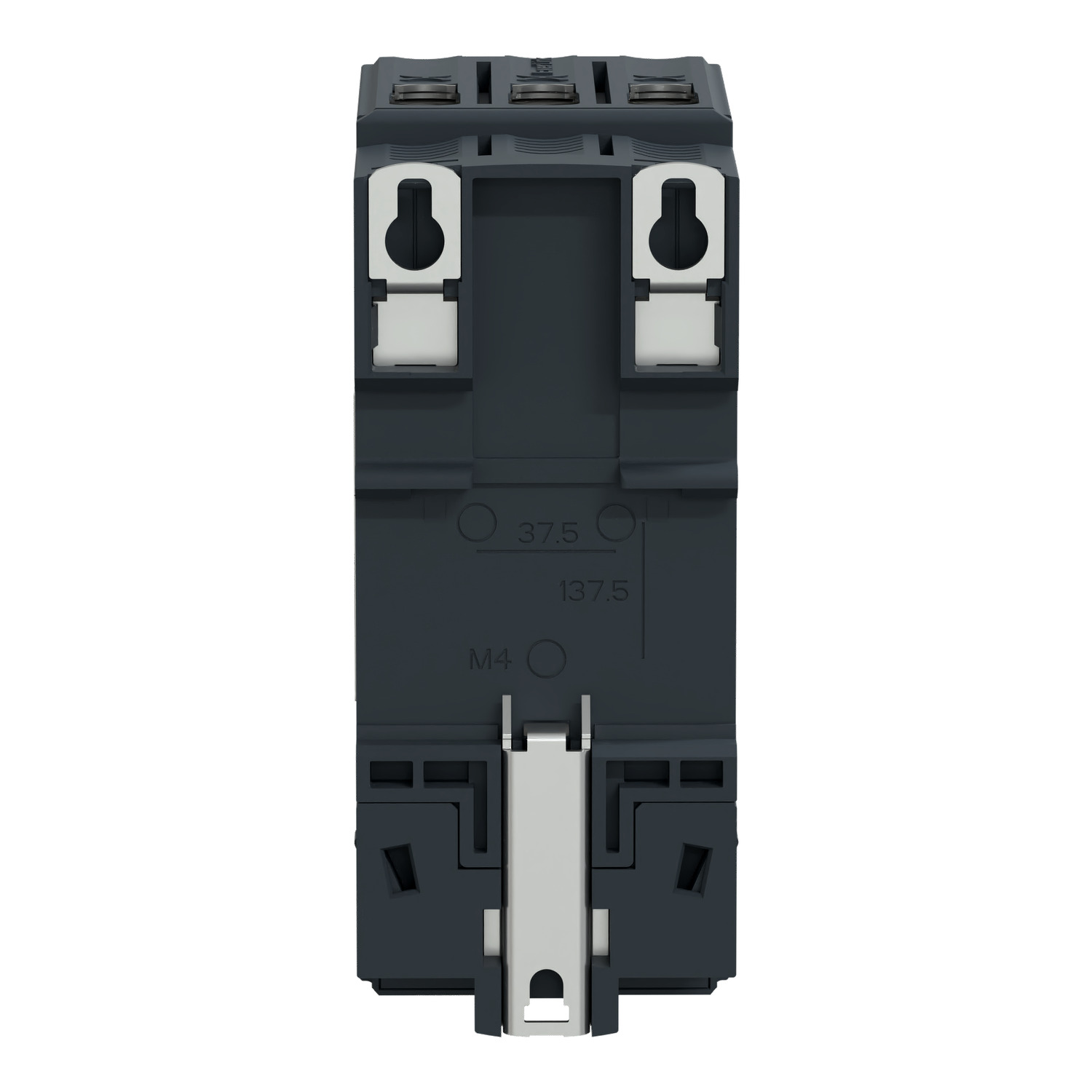

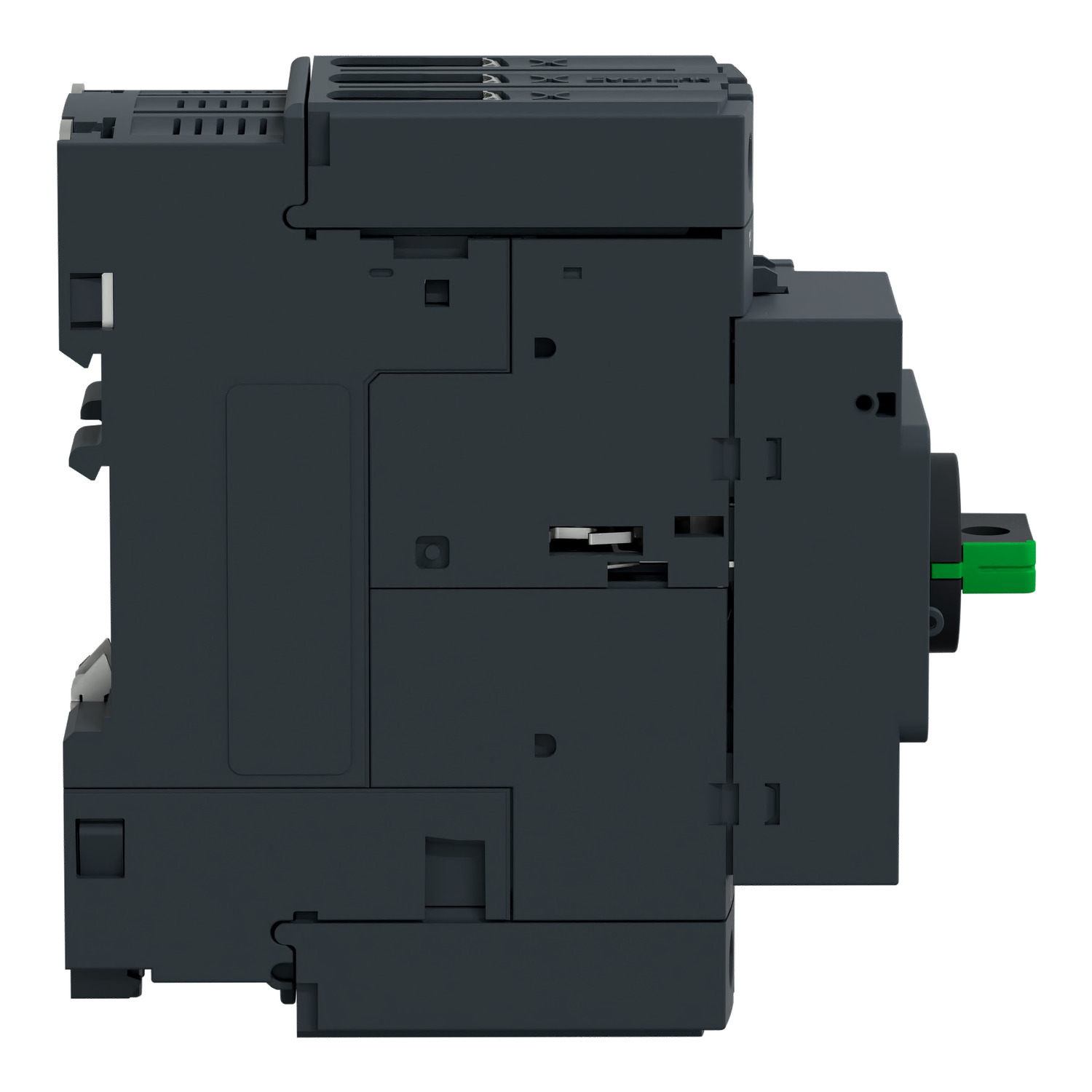

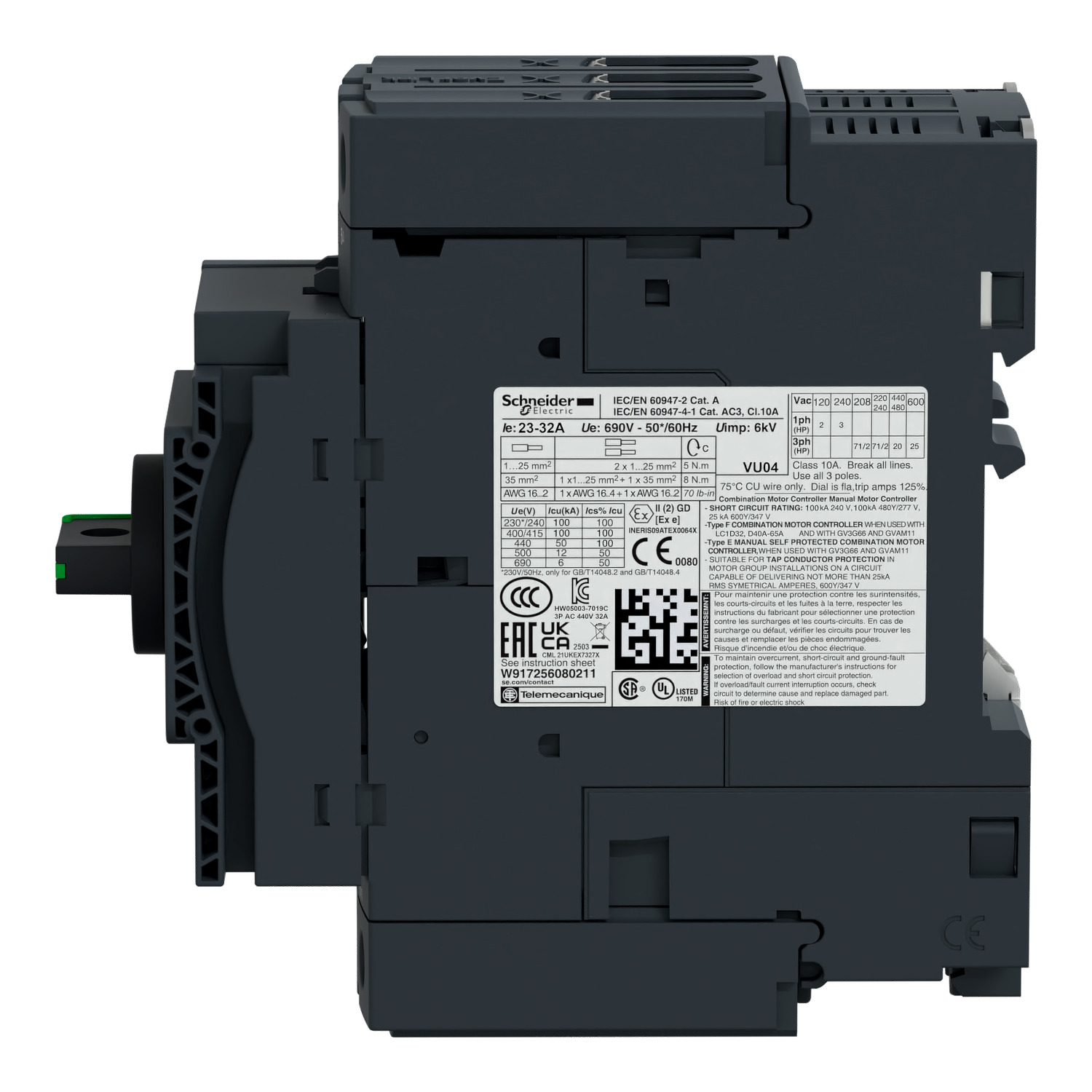

Schneider Electric TeSys GV3 (GV3P) Series Motor Protection Circuit Breaker. TeSys GV3 motor protection circuit breakers protect your motors from faults such as an overload of high voltage, short circuits, or relay shutdowns is vital in an age where any downtime can be detrimental to a business and its operations. Schneider Electric has built a reliable, robust series known as the GV3P series of Motor Protection Circuit Breaker to act as an intermediary between your devices, protecting vital equipment in the event of unforeseen incidents. TeSys GV3 circuit breakers include Everlink power terminal system with excellent connection quality ensuring any cable tightening pressure remains secure in any environment. Features and benefits.

• Easy integration with all configurations with a 55mm standard width and DIN rail fixing.


• Everlink terminals


• GV3 P Thermal magnetic breaker.7 Ratings from 25 A to 65 A for magnetic and thermal motor protection (5.5 kW to 30 kW).


• 50 kA Icu breaking capacity from 40 A to 65 A (100 kA Icu from 9 A to 32 A).


• Space saving and easy installation.


• 3 Position rotary switch / knob.


• Front face padlocking.


• Strong cable connection.


• Performs well in tough environments.


• Simple and easy to install.


• Trip test button.


• Sealable flap for protection of thermal setting.


• Reduced downtime.


• IP and IK Rated.


• Forms part of the TeSys range of products, known as the TeSys GV3P (Green Premium).

• Industry


• Infrastructure


• Buildings


• Easily assembled into any configuration by screw or clip-fixing onto mounting rails.
