Motor Circuit Breaker - GV3L Thanks to its new power terminals, this range of GV3 magnetic circuit-breakers assures improved reliability of connections and is designed to maintain a constant tightening force which assures a strong, safe and long lasting connection in the most demanding environments. Control and protection of motors from 5.5 kW to 30 kW
High breaking capacity:50 kA/400 V from 40 to 65 A and 100 kA/400 V from 25 to 32 A
3-position, padlockable, rotary knob
Trip test button on front face
Sealable flap for protection of thermal setting

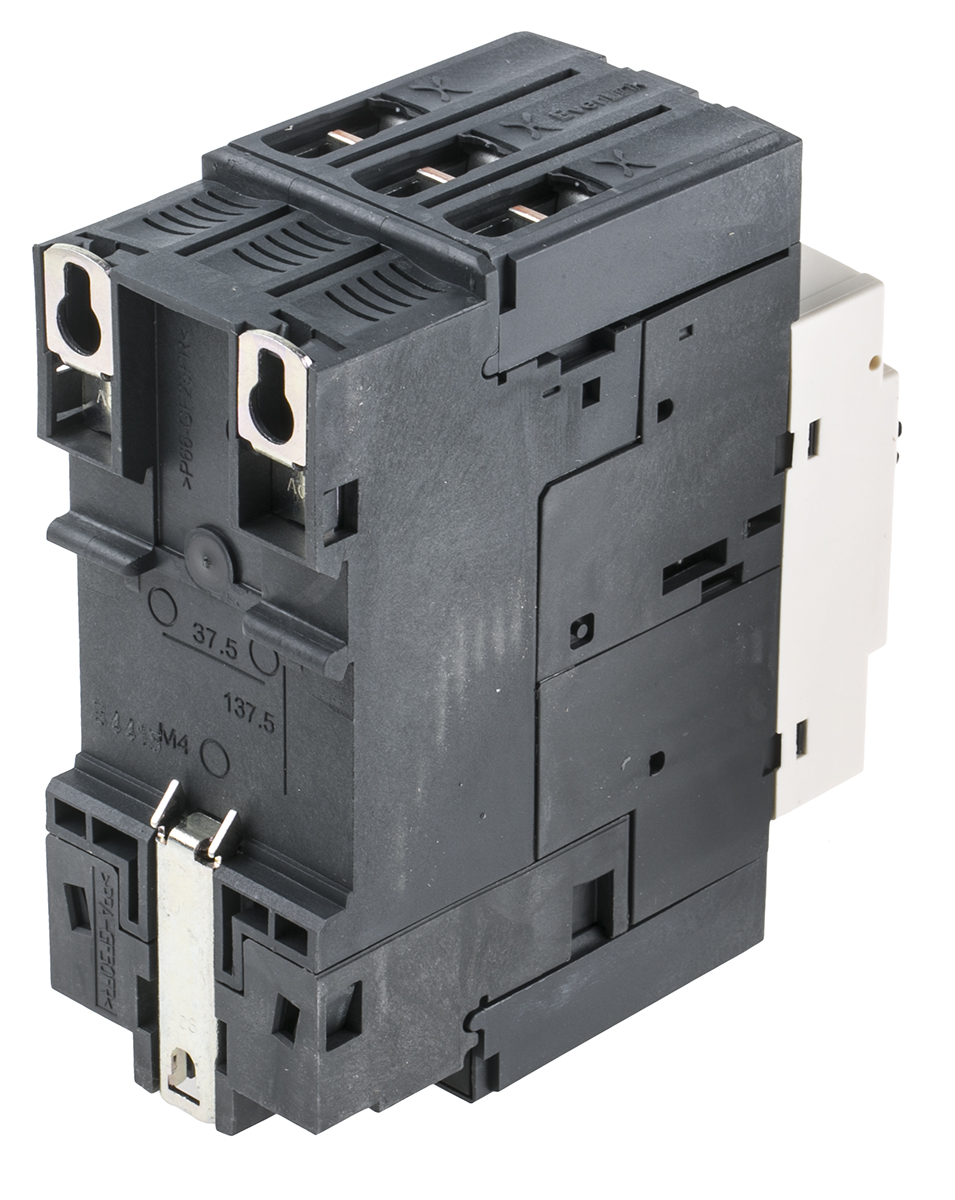

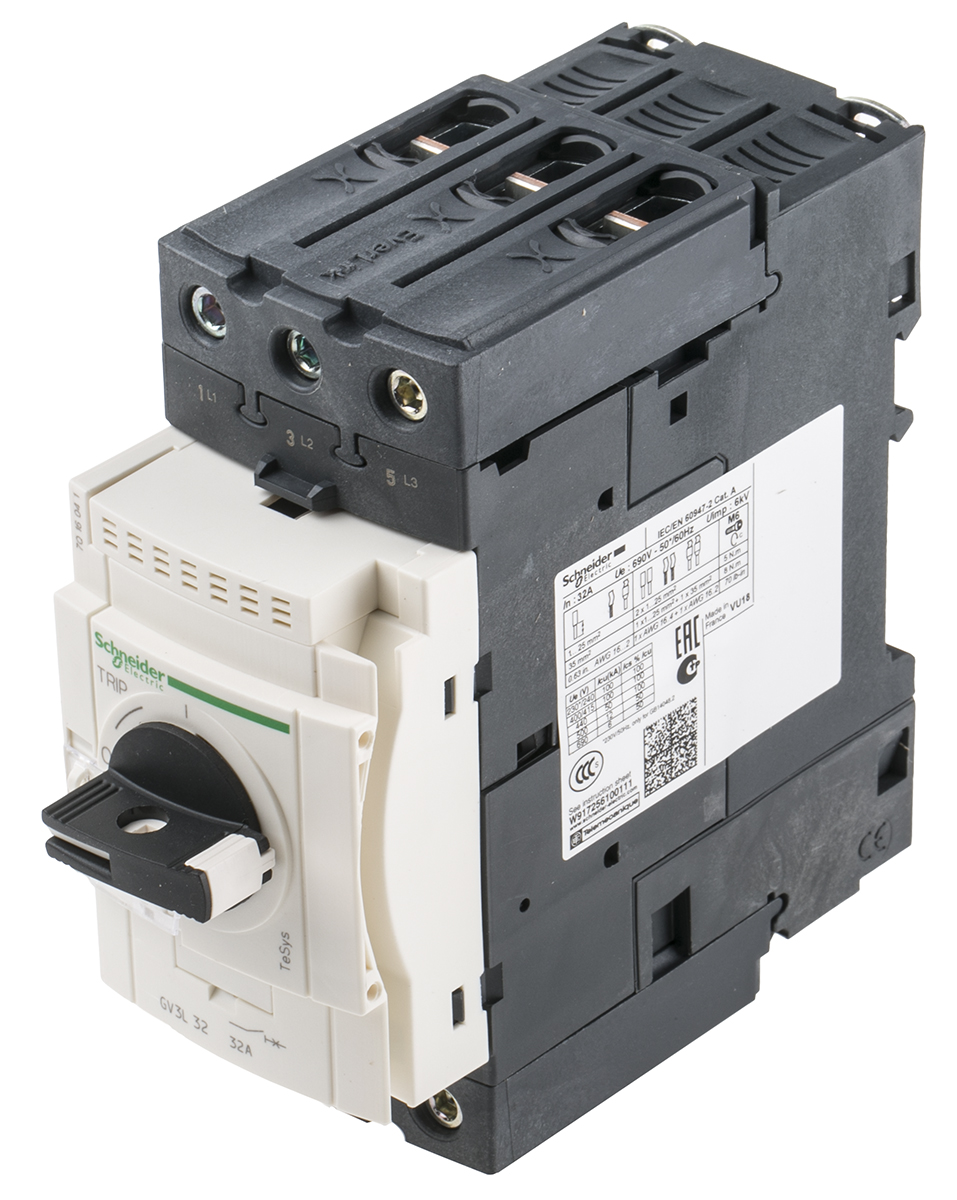

Schneider Electric TeSys Thermal Circuit Breaker - GV3 3 Pole 690V Voltage Rating DIN Rail Mount, 32A Current Rating

Manufacturer:
Manufacturer Part No:
GV3L32
Enrgtech Part No:
ET5029343
Warranty:
Manufacturer
Pre-order

Estimated Delivery Time: 7-13 weeks

Each

Quantity
Unit Price (ex VAT)
1
£ 181.23
Order Today!
From: United Kingdom

Estimated Delivery Time: 7-13 weeks

Range:
TeSys
Width:
55mm
Series:
GV3
Application:
Motors
Overall Depth:
136mm
Current Rating:
32A
Mounting Style:
DIN Rail Mount
Overall Length:
132mm
Voltage Rating:
690V
Number of Poles:
3
Rated AC Voltage:
690V
Overall Dimensions:
132 x 55 x 136mm
Tripping Mechanism:
Thermal-Magnetic
Better World Product:
Yes
Circuit Breaker Type:
Thermal Magnetic Circuit Breaker
Terminal Contact Type:
Screw
Better World Verification:
Green Premium
Breaking Capacity at Maximum Voltage Rating:
6 kA
