GB2 Thermal Magnetic Circuit Breakers
DIN rail mounted, mechanically reset protection devices.
Short circuit and overload protection for control circuits and associated industrial equipment, e.g. solenoid valves, electric brakes and transformers, etc
Rated operational voltage of 415V
74mm high; depth 67mm (1P) 70mm (2P)
Short circuit and overload protection for control circuits and associated industrial equipment, e.g. solenoid valves, electric brakes and transformers, etc
Rated operational voltage of 415V
74mm high; depth 67mm (1P) 70mm (2P)

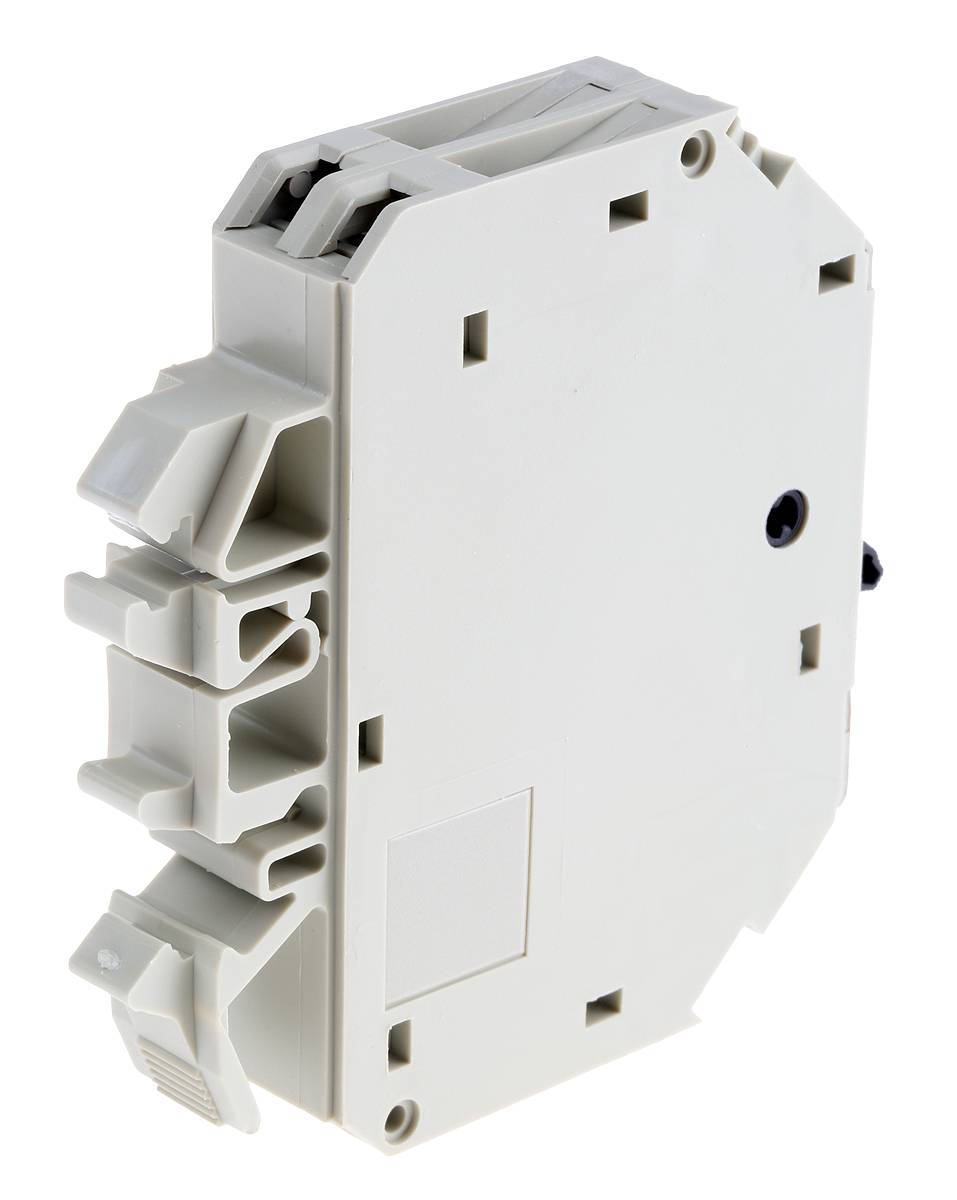

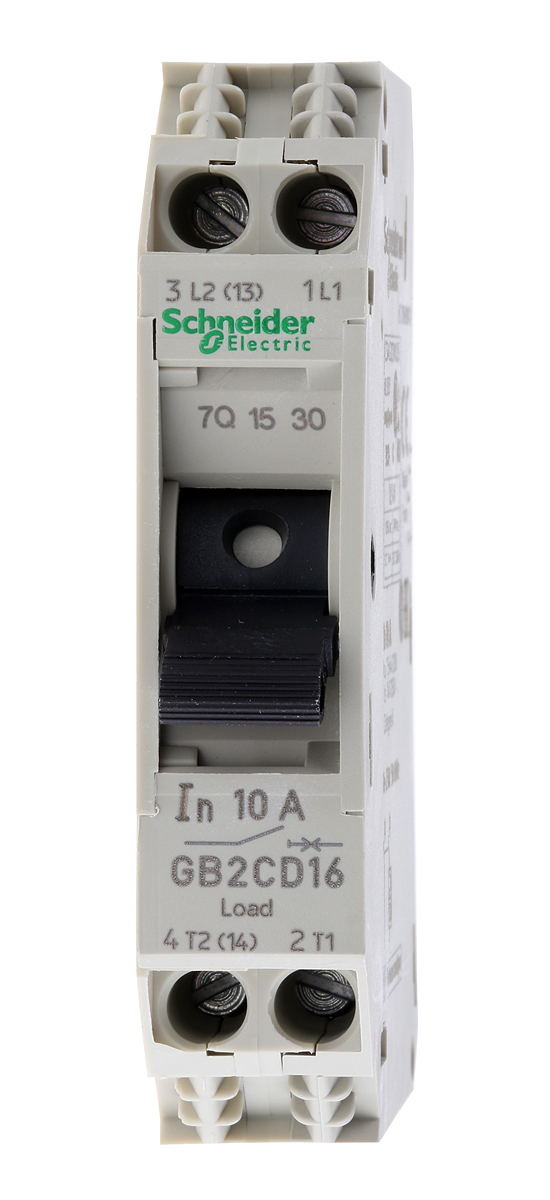

Thermal Circuit Breaker - GB2 1P + N Pole 250V ac Voltage Rating DIN Rail Mount, 10A Current Rating
Manufacturer:
Schneider Electric
Manufacturer Part No:
GB2CD16
Enrgtech Part No:
ET5029934
Warranty:
Manufacturer
£ 42.91
Checking for live stock
Current Rating:
10A
Number of Poles:
1P + N
Voltage Rating:
250V ac
Width:
15mm
Series:
GB2
Mounting Style:
DIN Rail Mount
Overall Depth:
82mm
Overall Length:
74mm
Circuit Breaker Type:
Thermal Magnetic Circuit Breaker
Breaking Capacity at Maximum Voltage Rating:
1 (dc) kA, 1.5 (ac) kA
Overall Dimensions:
74 x 15 x 82mm
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=28133&DisplayLogo=False
