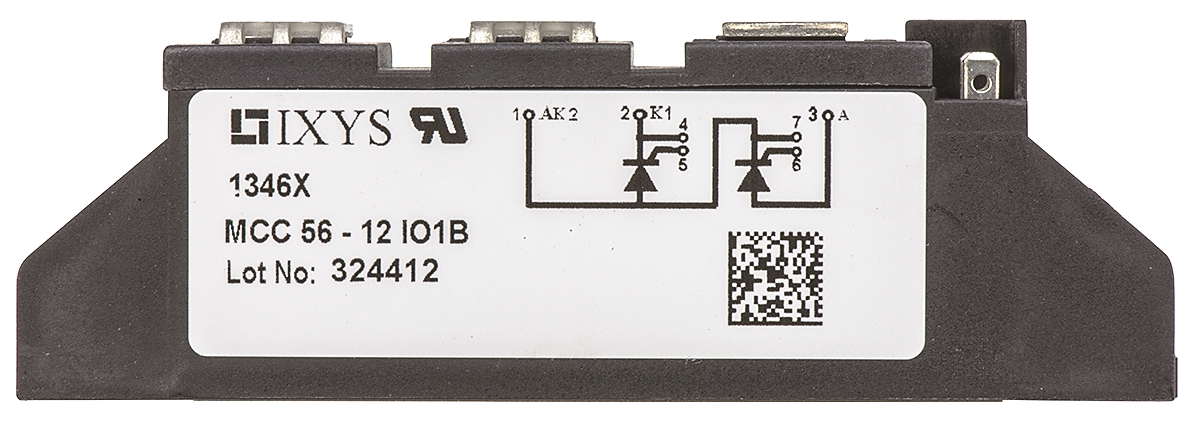

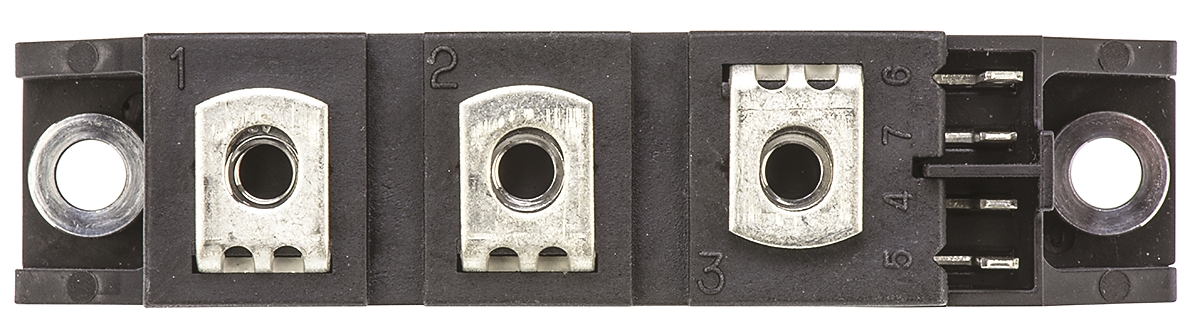

MCC56-12IO1B, Dual Thyristor Module 1200V, 64A 100mA

Rated Average On-State Current:

64A

Thyristor Type:

SCR Module

Package Type:

TO-240AA

Repetitive Peak Reverse Voltage:

1200V

Surge Current Rating:

1.6kA

Mounting Type:

Panel Mount

Maximum Gate Trigger Current:

100mA

Maximum Gate Trigger Voltage:

1.5V

Maximum Holding Current:

200mA

Pin Count:

7

Dimensions:

92 x 20.8 x 30mm

Maximum Operating Temperature:

+125 °C

Minimum Operating Temperature:

-40 °C

Repetitive Peak Forward Blocking Voltage:

1200V

Peak On-State Voltage:

1.57V

Repetitive Peak Off-State Current:

5mA
