CS30-16IO1, Thyristor 1600V, 31A 65mA

Rated Average On-State Current:

31A

Thyristor Type:

SCR

Package Type:

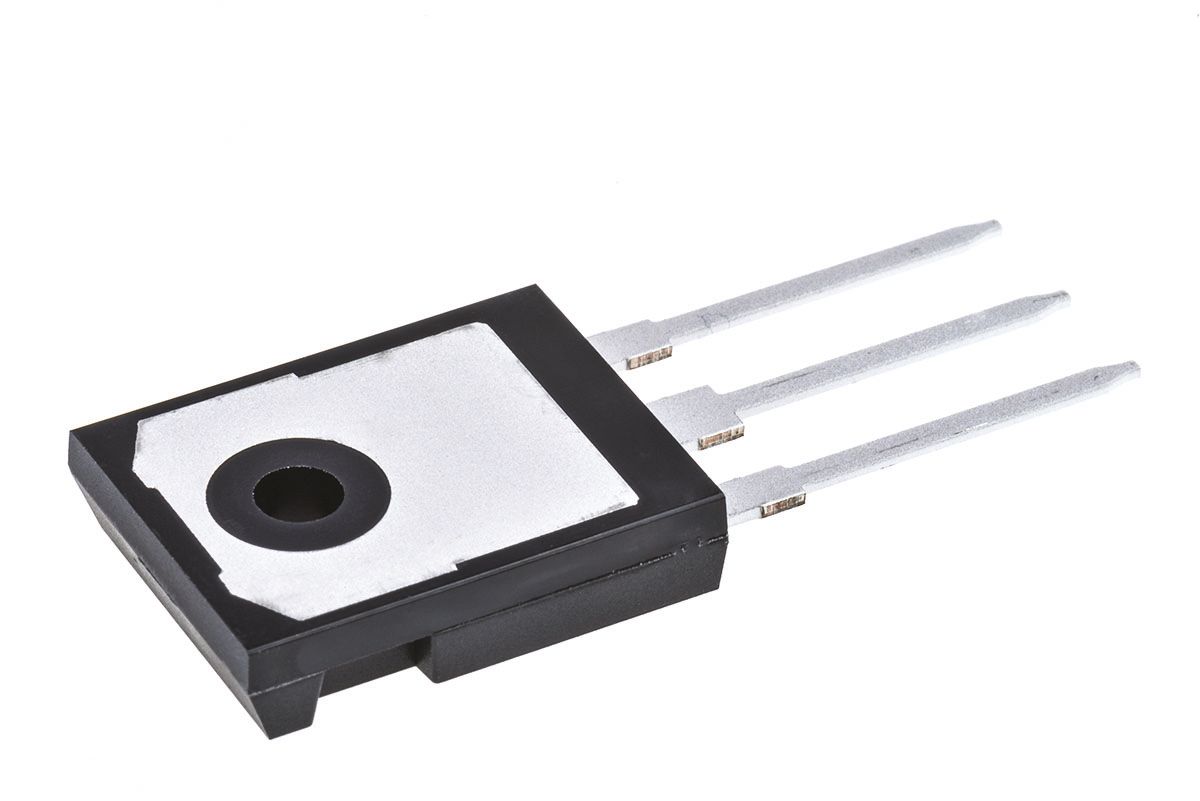

TO-247AD

Repetitive Peak Reverse Voltage:

1600V

Surge Current Rating:

320A

Mounting Type:

Through Hole

Maximum Gate Trigger Current:

65mA

Maximum Gate Trigger Voltage:

1V

Maximum Holding Current:

100mA

Pin Count:

3

Repetitive Peak Forward Blocking Voltage:

1600V

Peak On-State Voltage:

1.6V

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+125 °C

Repetitive Peak Off-State Current:

2mA
