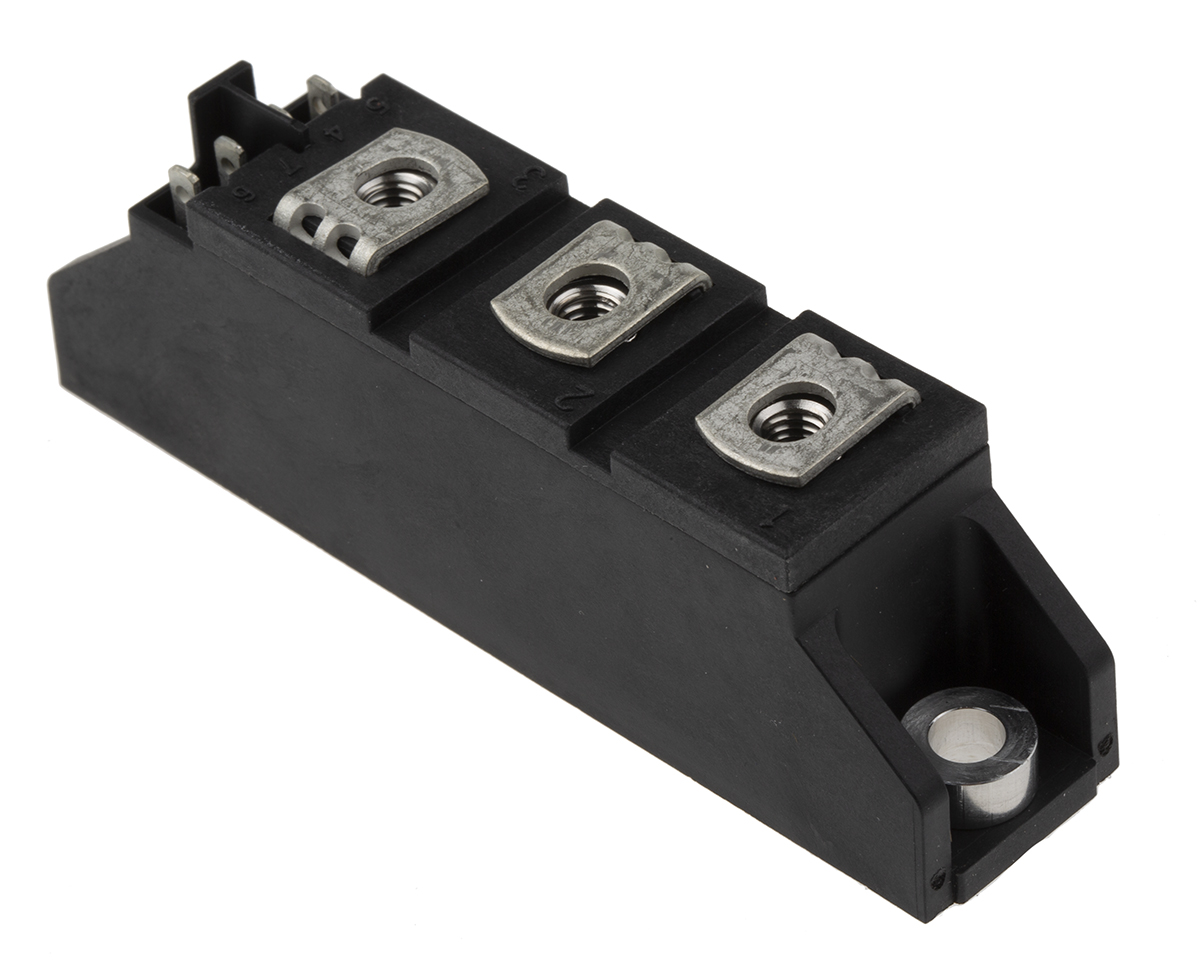

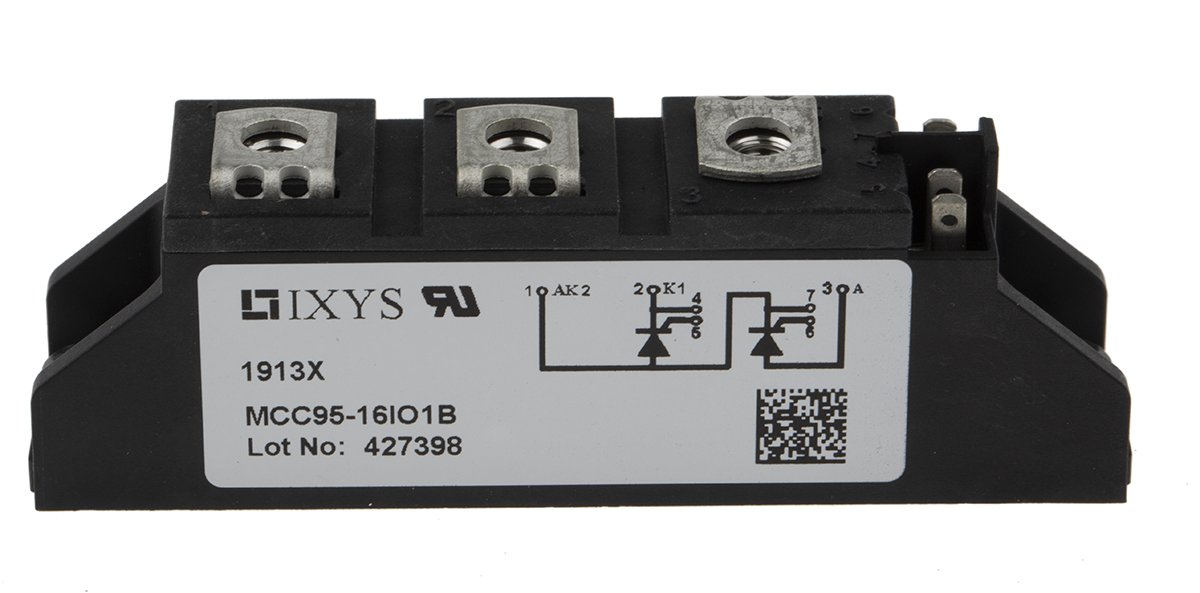

MCC95-16IO1B, Dual Thyristor Module 1600V, 116A 150mA

Rated Average On-State Current:

116A

Thyristor Type:

SCR Module

Package Type:

TO-240AA

Repetitive Peak Reverse Voltage:

1600V

Surge Current Rating:

2.4kA

Mounting Type:

Panel Mount

Maximum Gate Trigger Current:

150mA

Maximum Gate Trigger Voltage:

2.5V

Maximum Holding Current:

200mA

Pin Count:

7

Dimensions:

92 x 20.8 x 30mm

Minimum Operating Temperature:

-40 °C

Repetitive Peak Off-State Current:

5mA

Repetitive Peak Forward Blocking Voltage:

1600V

Maximum Operating Temperature:

+125 °C

Peak On-State Voltage:

1.5V
