CS45-16IO1, Thyristor 1600V, 48A 100mA

Rated Average On-State Current:

48A

Thyristor Type:

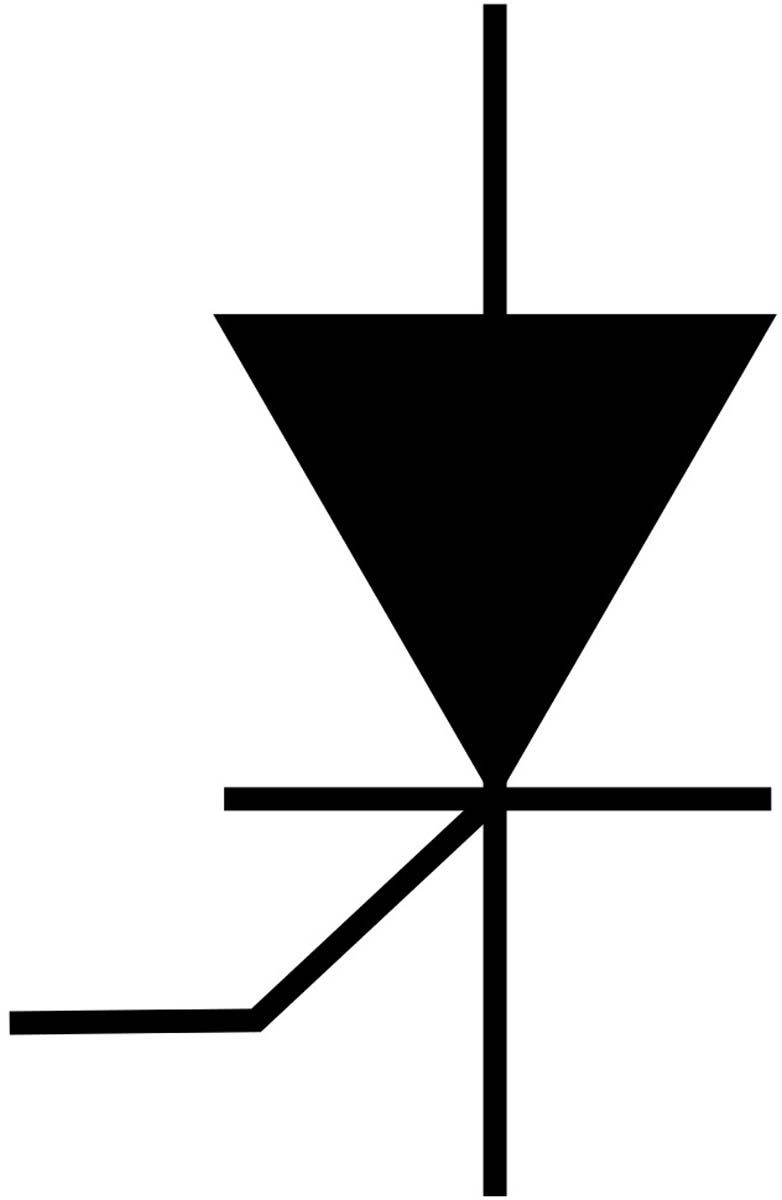

SCR

Package Type:

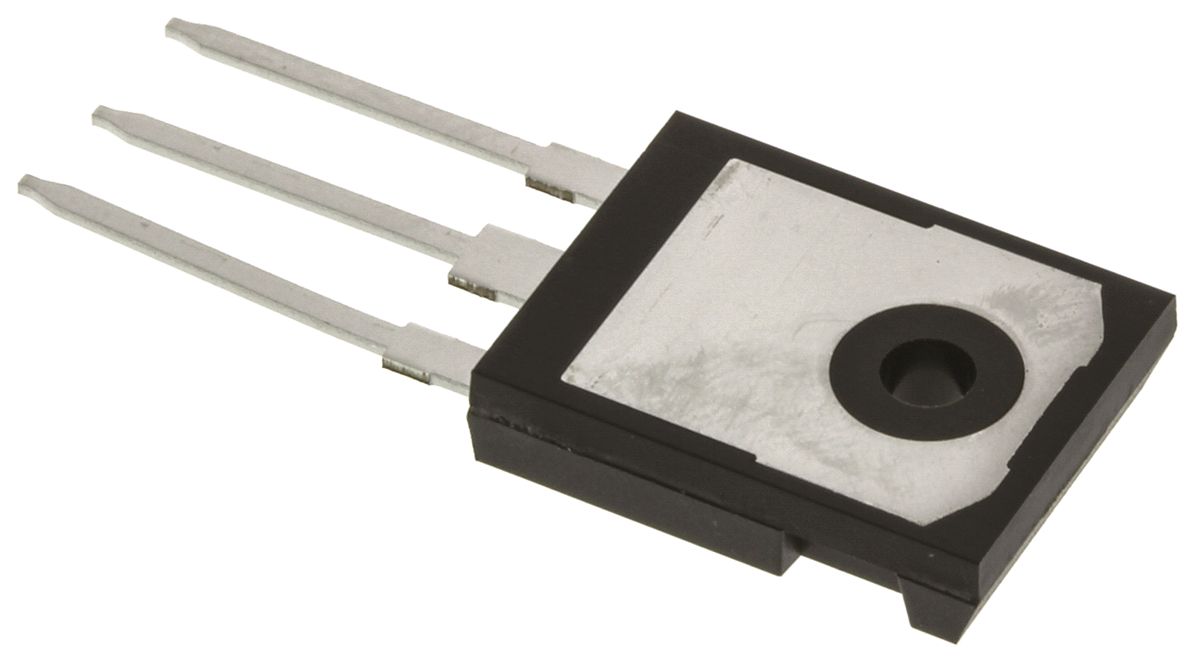

TO-247AD

Repetitive Peak Reverse Voltage:

1600V

Surge Current Rating:

560A

Mounting Type:

Through Hole

Maximum Gate Trigger Current:

100mA

Maximum Gate Trigger Voltage:

1.5V

Maximum Holding Current:

100mA

Pin Count:

3

Minimum Operating Temperature:

-40 °C

Peak On-State Voltage:

1.64V

Repetitive Peak Off-State Current:

5mA

Maximum Operating Temperature:

+140 °C

Repetitive Peak Forward Blocking Voltage:

1600V
