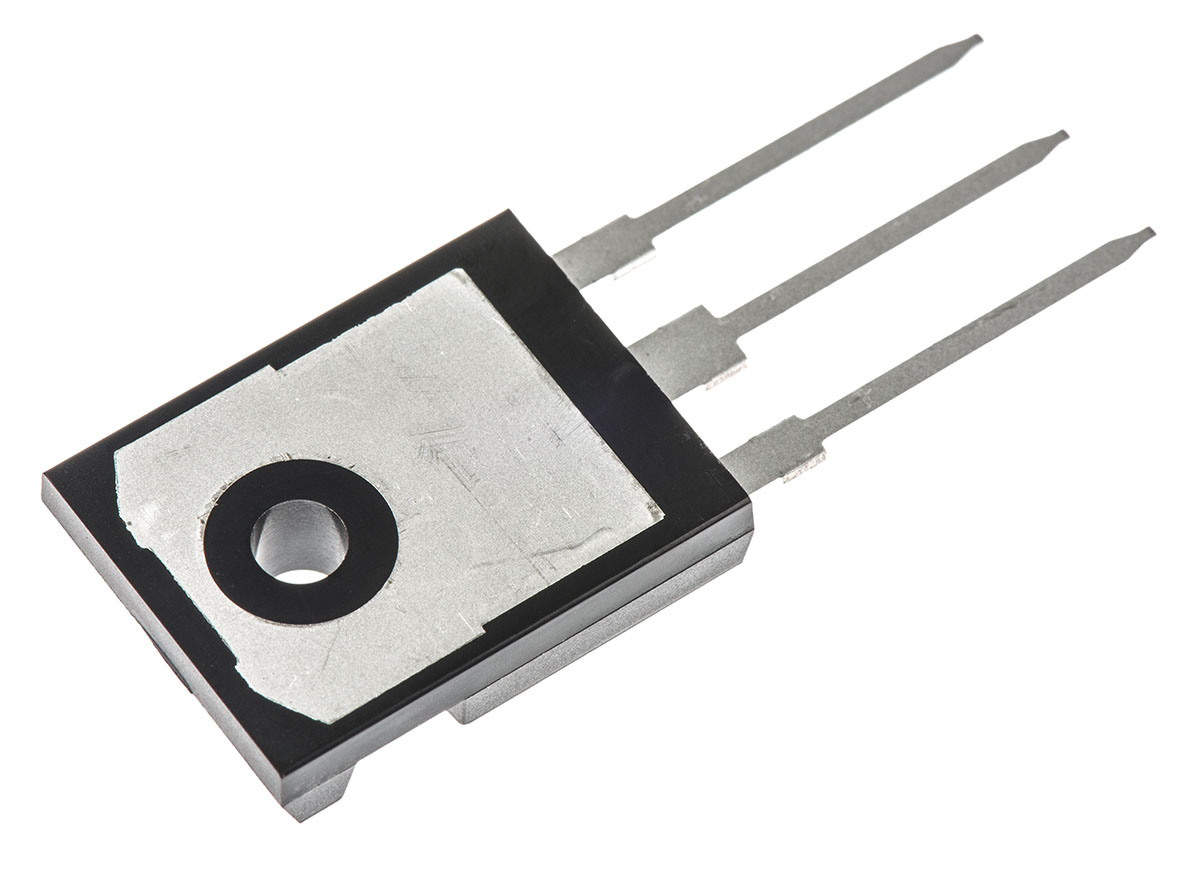

CS45-12io1, Thyristor 1200V, 48A 200mA

Rated Average On-State Current:

48A

Thyristor Type:

SCR

Package Type:

TO-247AD

Repetitive Peak Reverse Voltage:

1200V

Surge Current Rating:

560A

Mounting Type:

Through Hole

Maximum Gate Trigger Current:

200mA

Maximum Gate Trigger Voltage:

1.6V

Maximum Holding Current:

100mA

Pin Count:

3

Dimensions:

16.24 x 5.3 x 21.45mm

Peak On-State Voltage:

1.64V

Minimum Operating Temperature:

-40 °C

Repetitive Peak Forward Blocking Voltage:

1200V

Maximum Operating Temperature:

+140 °C

Repetitive Peak Off-State Current:

5mA
