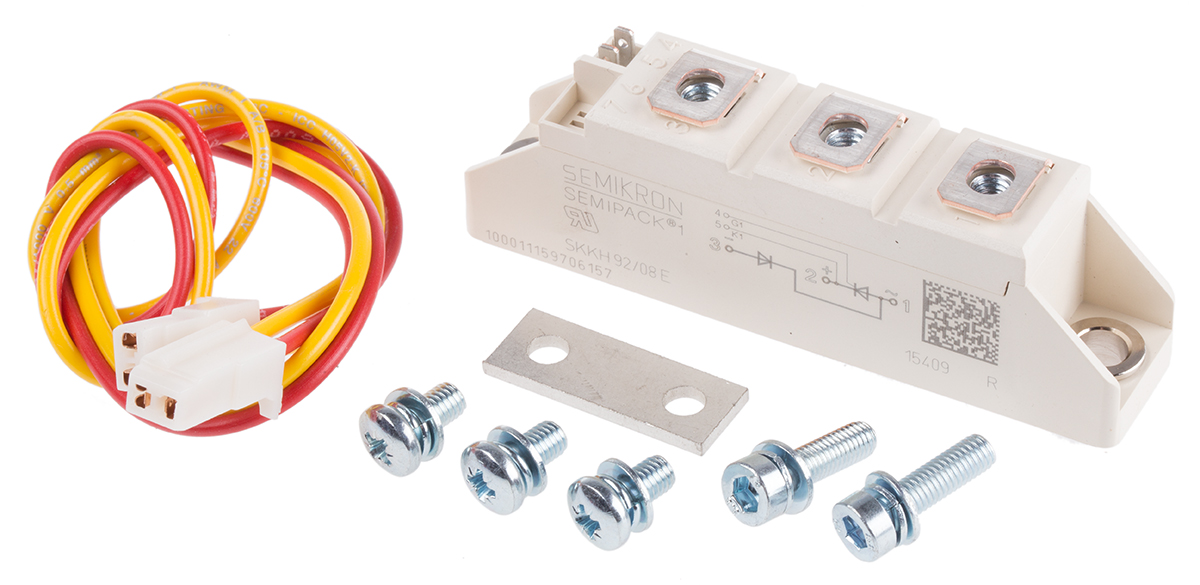

SKKH 92/08 E, Diode/Thyristor Module SCR 800V, 95A 150mA

Rated Average On-State Current:

95A

Thyristor Type:

SCR Module

Package Type:

SEMIPACK1

Repetitive Peak Reverse Voltage:

800V

Surge Current Rating:

2kA

Mounting Type:

Panel Mount

Maximum Gate Trigger Current:

150mA

Maximum Gate Trigger Voltage:

3V

Maximum Holding Current:

250mA

Pin Count:

5

Dimensions:

93 x 20 x 30mm

Maximum Operating Temperature:

+125 °C

Repetitive Peak Off-State Current:

20mA

Repetitive Peak Forward Blocking Voltage:

800V

Minimum Operating Temperature:

-40 °C

Peak On-State Voltage:

1.65V
