555 Timer, Texas Instruments
A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.

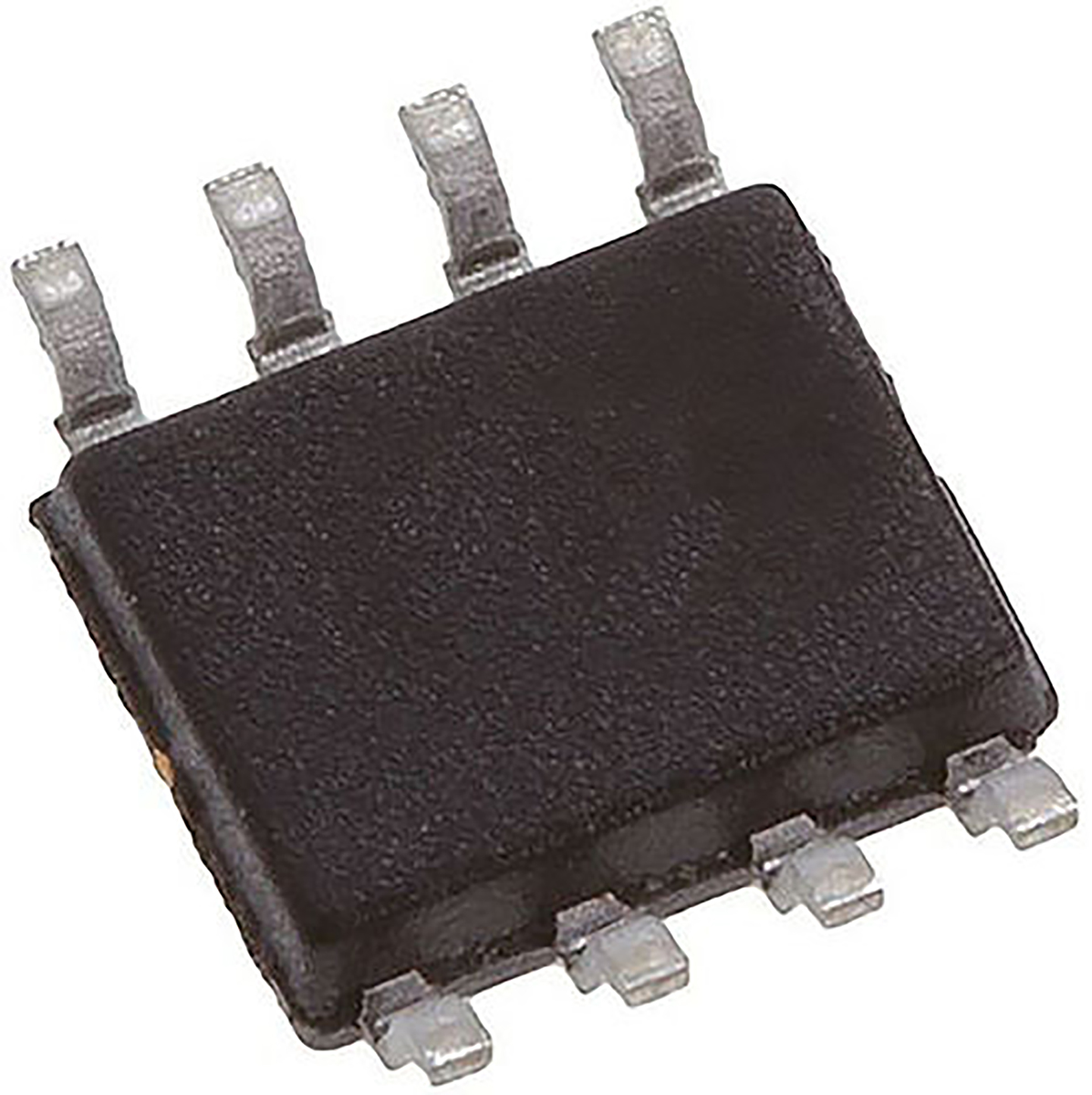

TLC555ID, Timer Circuit 2MHz, 8-Pin SOIC
Manufacturer:
Texas Instruments
Manufacturer Part No:
TLC555ID
Enrgtech Part No:
ET13901592
Warranty:
Manufacturer
£ 0.76
Checking for live stock
Mounting Type:
Surface Mount
Timer Type:
Standard
Package Type:
SOIC
Number of Internal Timers:
1
Pin Count:
8
Maximum Input Frequency:
2MHz
Minimum Operating Supply Voltage:
3 V
Maximum Operating Supply Voltage:
15 V
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Maximum Low Level Output Current:
100mA
Maximum High Level Output Current:
-10mA
