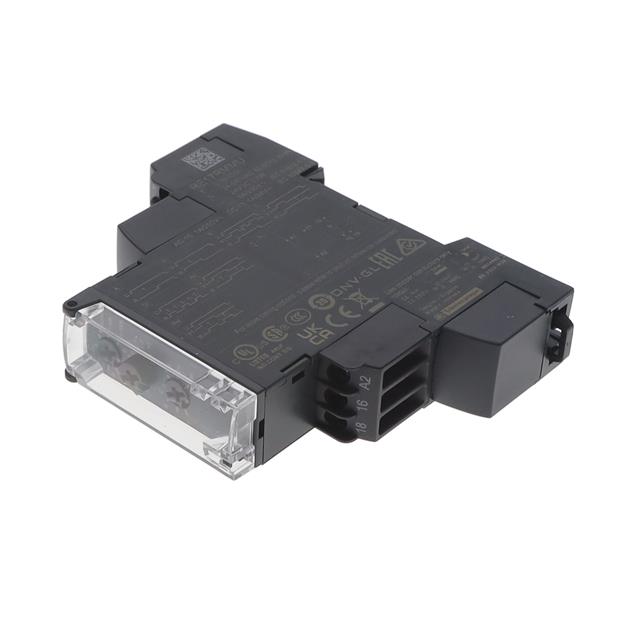

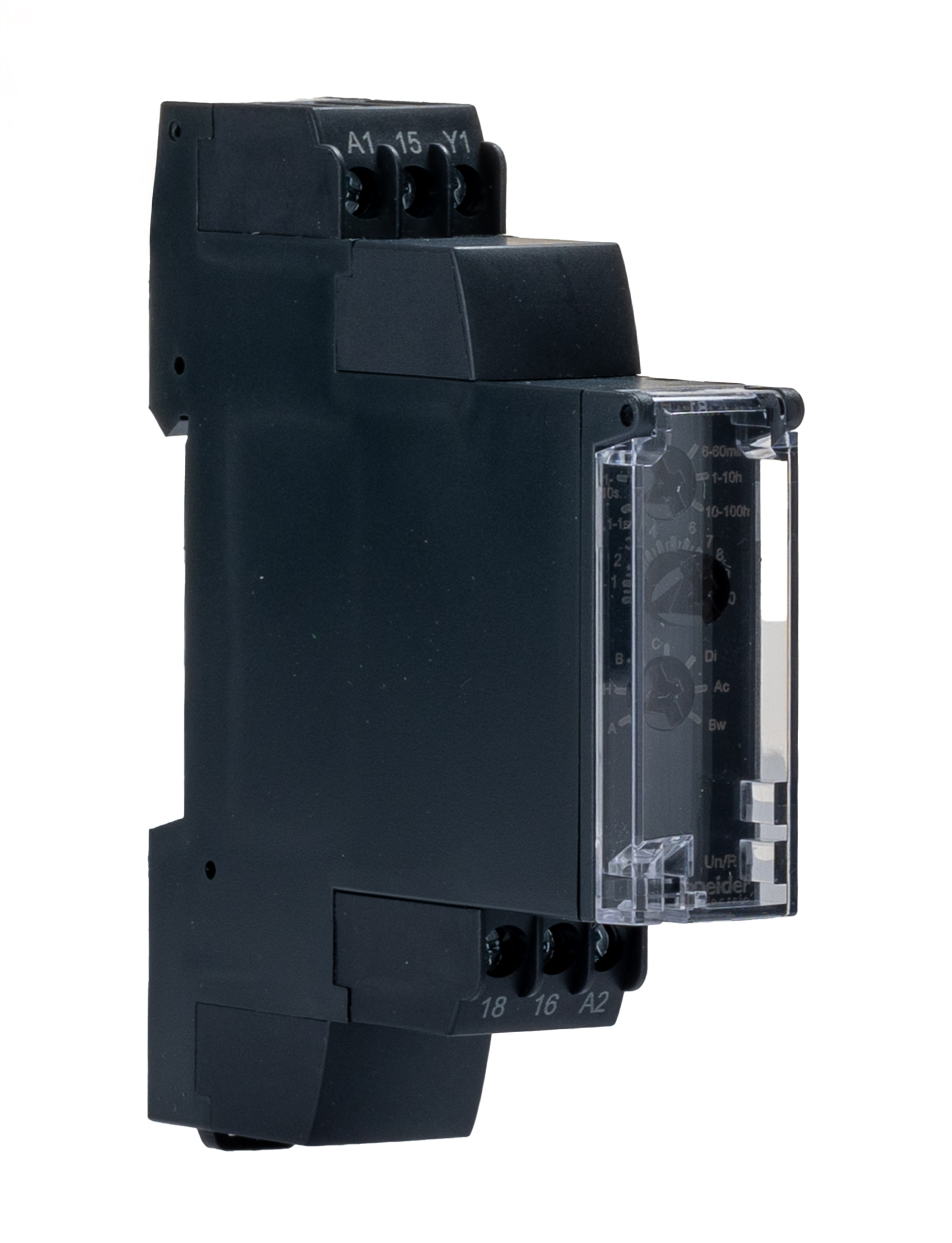

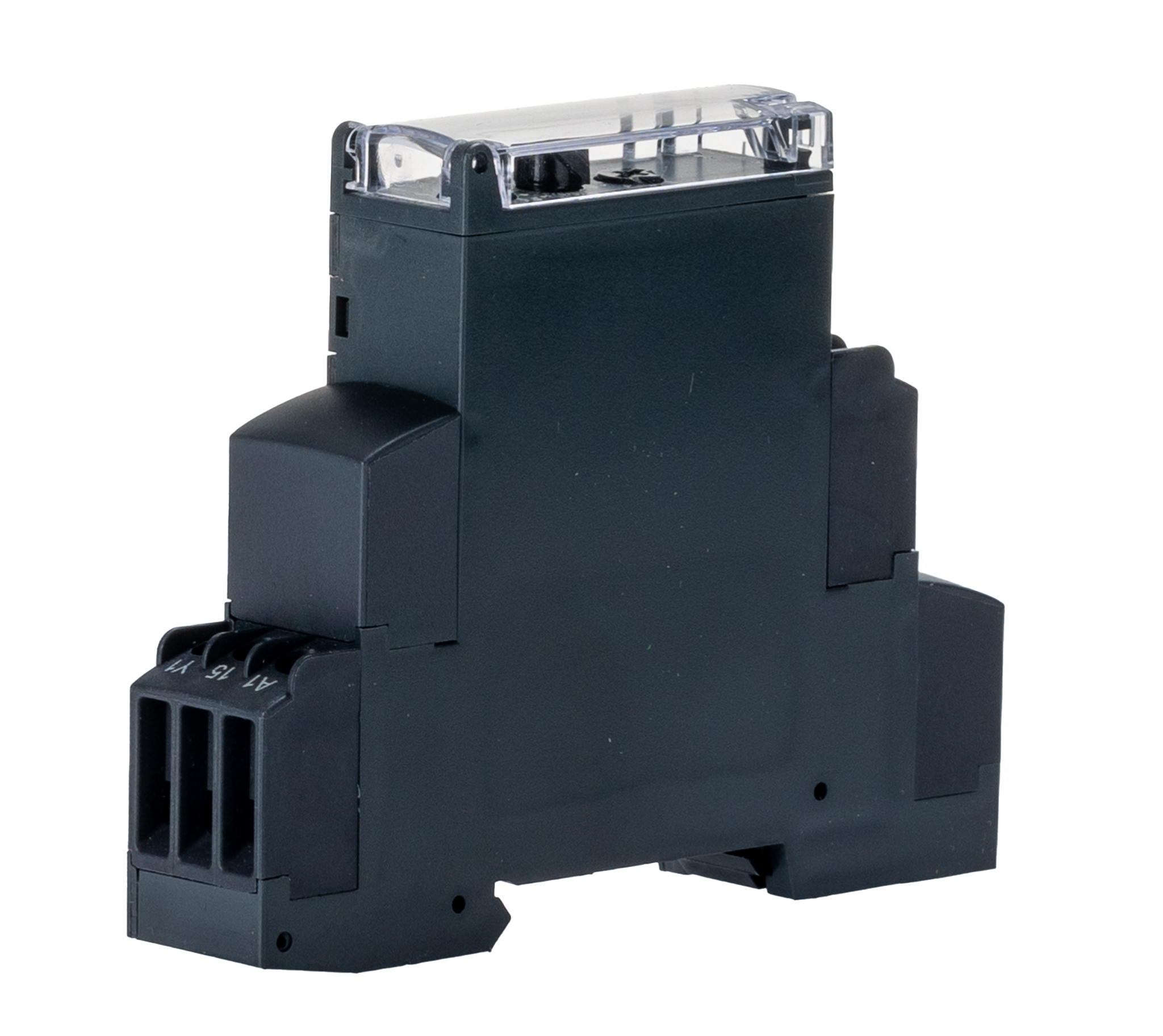

re17rmmu Multi Function Timer Relay, Screw, 0.1 s → 100 h, SPDT, 2 Contacts, SPDT, 24 V dc, 24 → 240 V ac

Multifunctional Timers - Zelio RE17R Series RE17R series timing relays enable simple automation cycles to be set up using wired logic. They are also used to compliment the functions of PLCs. Relay outputs provide complete isolation between the supply circuit and the output. It is possible to have several output circuits. 17.5mm width Multifunction Multi-range Multivoltage LED state indicator Relay output, C/O contact, 8A Screw terminals DIN rail mounting IP50 (front panel), IP40 (housing) & IP20 (terminal block) protection

For more information please check the datasheets.

Schneider Electric RE17RMMU Multi Function Timer Relay, Screw, 0.1 s → 100 h, SPDT, 2 Contacts, SPDT, 24 V dc, 24 → 240 V ac

Name: Multi Function Timer Relay, Screw, 0.1 s → 100 h, SPDT, 2 Contacts, SPDT, 24 V dc, 24 → 240 V ac
Brand: Schneider Electric
SKU: ET13830197
Availability: InStock

Manufacturer:

Schneider Electric

Manufacturer Part No:

RE17RMMU

Enrgtech Part No:

ET13830197

Warranty:

Manufacturer

£ 81.12

Checking for live stock

Maximum Voltage:

24 V dc, 240V ac

Width:

17.5mm

Supply Voltage:

24 V dc, 24 → 240V ac

Maximum Current:

Time Range:

0.1 s → 100h

Mode of Operation:

OFF Delay, ON Delay, Symmetrical

Number of Timer Functions:

Multi Function

Maximum Operating Temperature:

+60°C

Terminal Type:

Screw

Time Delay:

<100ms

Minimum Operating Temperature:

-20°C

Time Increment:

Hours, Minutes, Seconds

Instruction Sheet(Technical Reference)

RE17 Series Product Guides(Technical Reference)

7912745_Catalogue_en(Technical Reference)

Datasheet_RE17RMMU(Technical Reference)

Product Environmental Profile(Technical Reference)

RE17RMMU(Datasheets)

Schneider Electric RE17RMMU Multi Function Timer Relay, Screw, 0.1 s → 100 h, SPDT, 2 Contacts, SPDT, 24 V dc, 24 → 240 V ac
