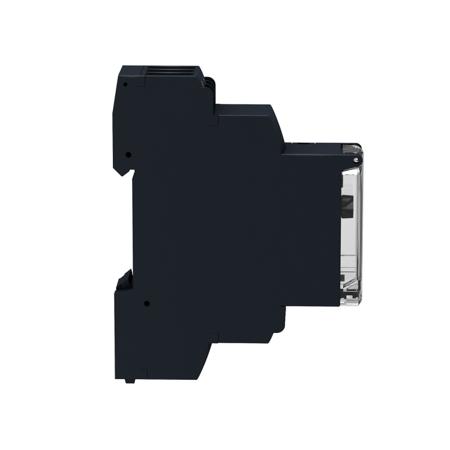

re17rcmu Schneider Electric OFF Delay Single Timer Relay, Screw, 0.1 s → 100 h, SPDT, 2 Contacts, SPDT

On Delay Timers - Zelio RE17R Series RE17R series timing relays enable simple automation cycles to be set up using wired logic. They can also be used to complement the functions of PLCs. Relay outputs provide complete isolation between the supply circuit and the output. It is possible to have several output circuits. On-delay function Multivoltage LED state indicator Relay output, C/O contact, 8A Screw terminals DIN rail mounting Note Off-delay function available in RS 791-2723

For more information please check the datasheets.

Schneider Electric OFF Delay Single Timer Relay, Screw, 0.1 s → 100 h, SPDT, 2 Contacts, SPDT

Name: Schneider Electric OFF Delay Single Timer Relay, Screw, 0.1 s → 100 h, SPDT, 2 Contacts, SPDT
Brand: Schneider Electric
SKU: ET13863257
Availability: InStock

Manufacturer:

Schneider Electric

Manufacturer Part No:

RE17RCMU

Enrgtech Part No:

ET13863257

Warranty:

Manufacturer

£ 65.67

Checking for live stock

Maximum Voltage:

24 V dc, 240V ac

Width:

17.5mm

Supply Voltage:

24 V dc, 24 → 240V ac

Maximum Current:

Time Range:

0.1 s → 100h

Mode of Operation:

OFF Delay

Number of Timer Functions:

Single

Maximum Operating Temperature:

+60°C

Terminal Type:

Screw

Time Delay:

<100ms

Minimum Operating Temperature:

-20°C

Time Increment:

Hours, Minutes, Seconds

Zelio Selection Guide(Technical Reference)

RE17 Series Product Guides(Technical Reference)

Product Environmental Profile(Technical Reference)

Instruction Sheet(Technical Reference)

Datasheet RE17RCMU(Technical Reference)

Catalogue - Harmony Timer Relays(Technical Reference)
