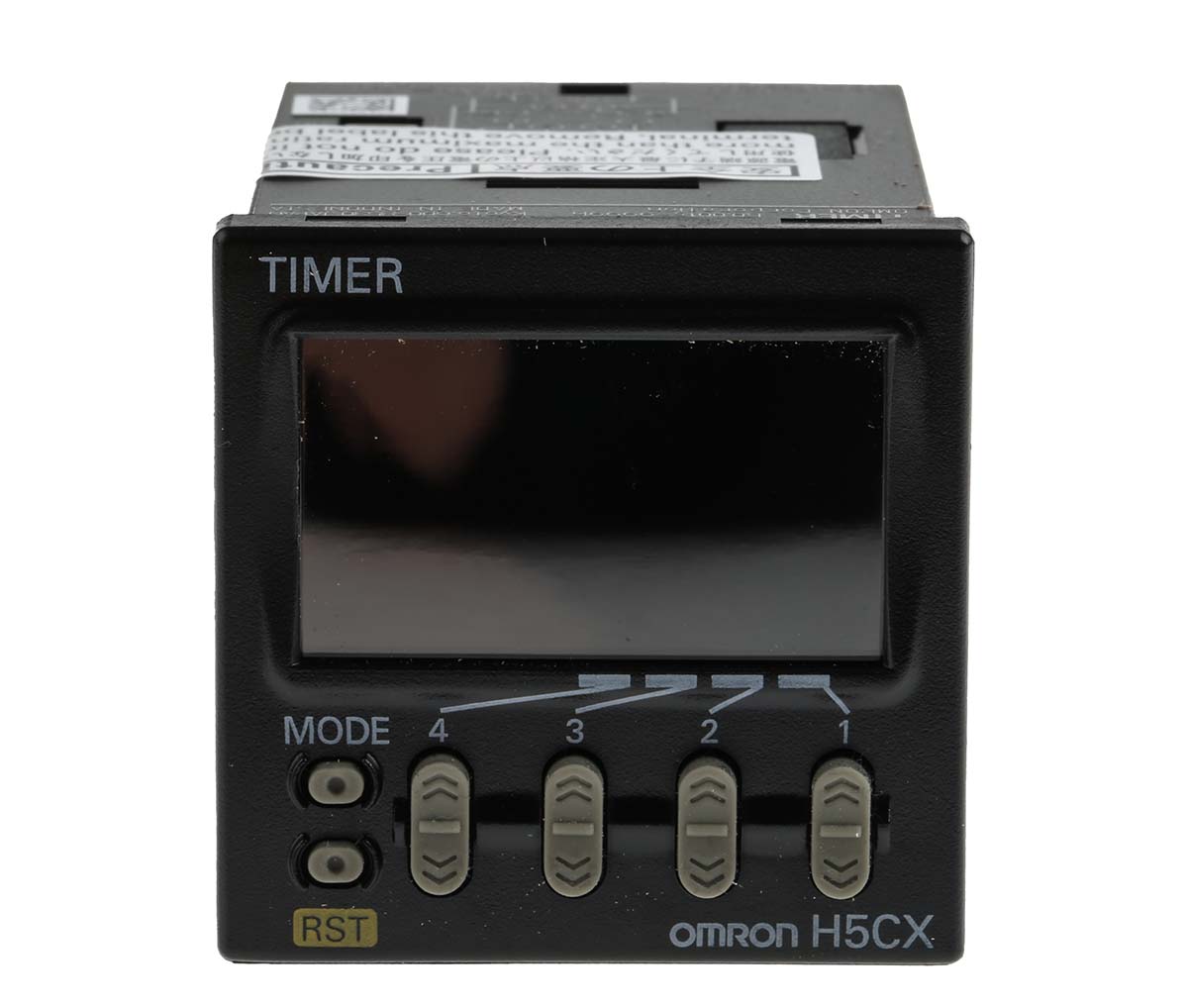

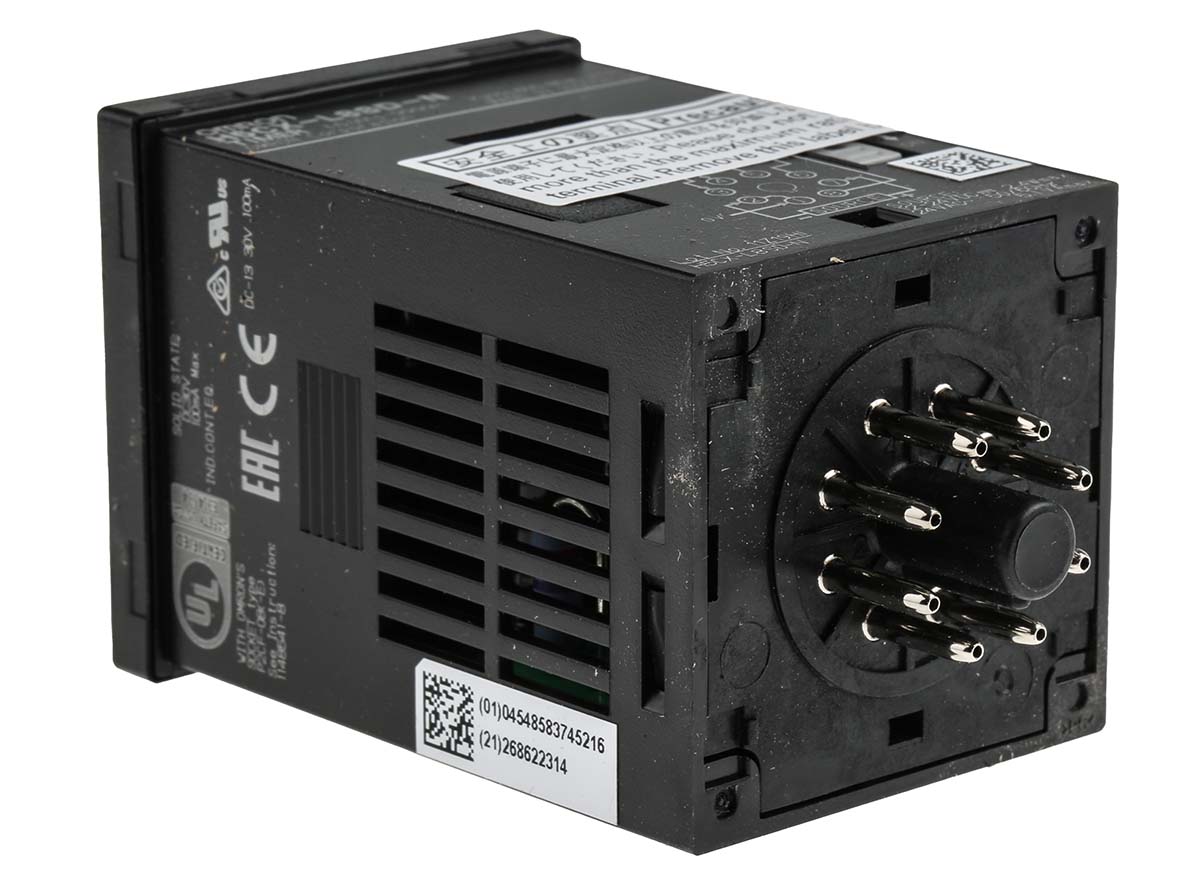

h5cx-l8-n Multi Function Timer Relay, 8-Pin Connector, 0.001 s → 9999 h, 1 Contacts, SPDT, 100 → 240 V ac

Ultra Compact Digital Timer - H5CX Series H5CX Series of ultra-compact digital timers provide advanced functions and security settings to suit your timing needs. Features and Benefits 12 mm character height Shorter body depth Three-colour display value, red, green or orange Up/Down keys for each digit Twin timer and variable ON/OFF duty modes Service life notification - the number of times that the control output turns ON is counted and an alarm is displayed when a preset count is exceeded Setting upper limit prevents unwanted operation Isolated power supply and input circuits (Prevent unwanted circuit paths) on 100-240 V ac versions 0.0001 s to 9999 h, 10 ranges Input NPN, PNP and contact

For more information please check the datasheets.

Omron H5CX-L8-N Multi Function Timer Relay, 8-Pin Connector, 0.001 s → 9999 h, 1 Contacts, SPDT, 100 → 240 V ac

Name: Multi Function Timer Relay, 8-Pin Connector, 0.001 s → 9999 h, 1 Contacts, SPDT, 100 → 240 V ac
Brand: Omron
SKU: ET14008025
Availability: InStock

Manufacturer:

Omron

Manufacturer Part No:

H5CX-L8-N

Enrgtech Part No:

ET14008025

Warranty:

Manufacturer

£ 213.27

Checking for live stock

Switch Configuration:

SPDT

Time Increment:

Hours, Seconds

Mounting Type:

Panel Mount

Maximum Current:

0.005A

Series:

H5CX

Time Range:

0.001 s → 9999h

Power Supply:

External

Length:

48mm

Mode of Operation:

Flicker OFF Start 1, Flicker OFF Start 2, Flicker ON Start 1, Flicker ON Start 2

Width:

48mm

Depth:

63.7mm

Supply Voltage:

100 → 240V ac

Datasheet(Technical Reference)

Omron H5CX-L8-N Multi Function Timer Relay, 8-Pin Connector, 0.001 s → 9999 h, 1 Contacts, SPDT, 100 → 240 V ac
