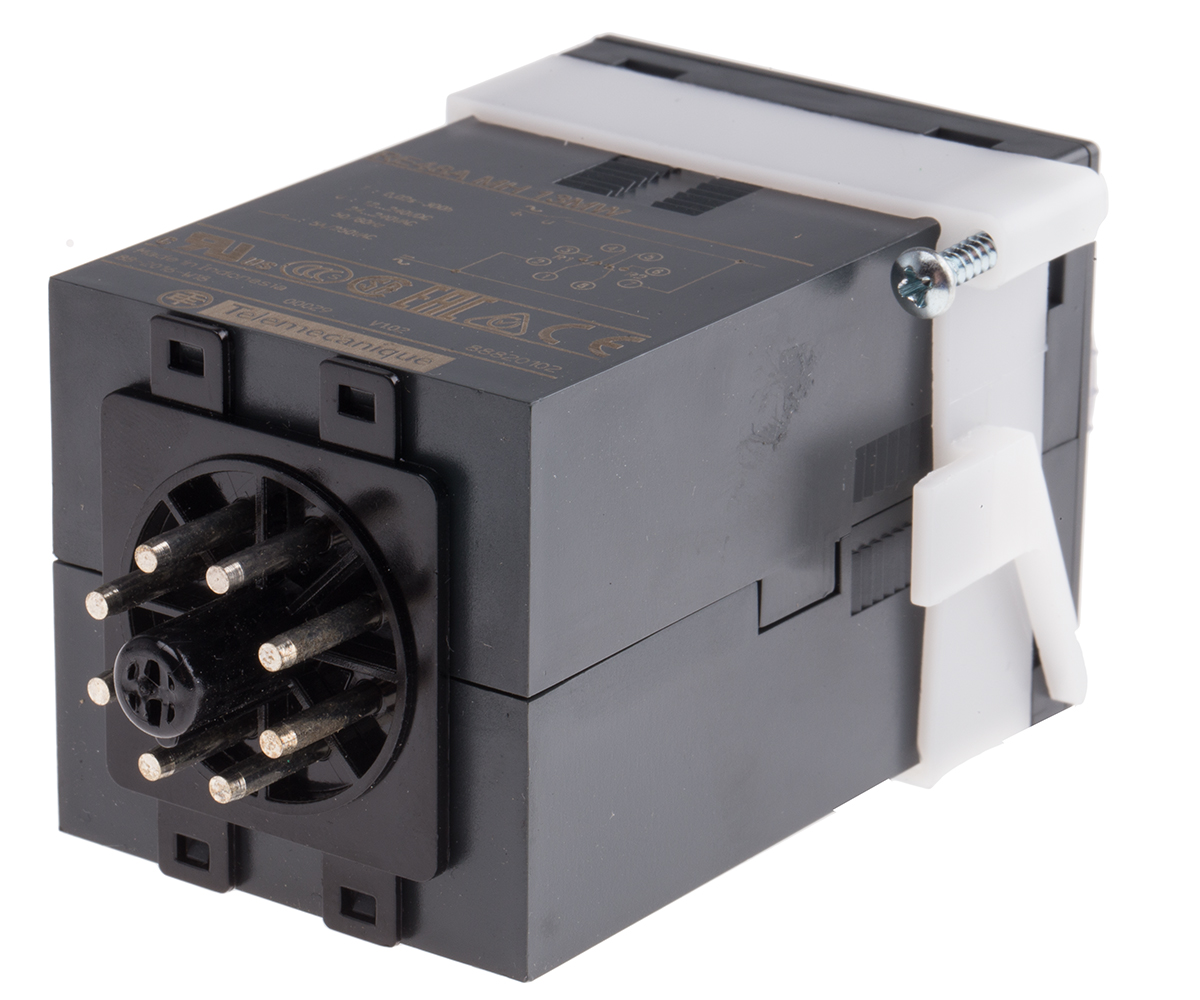

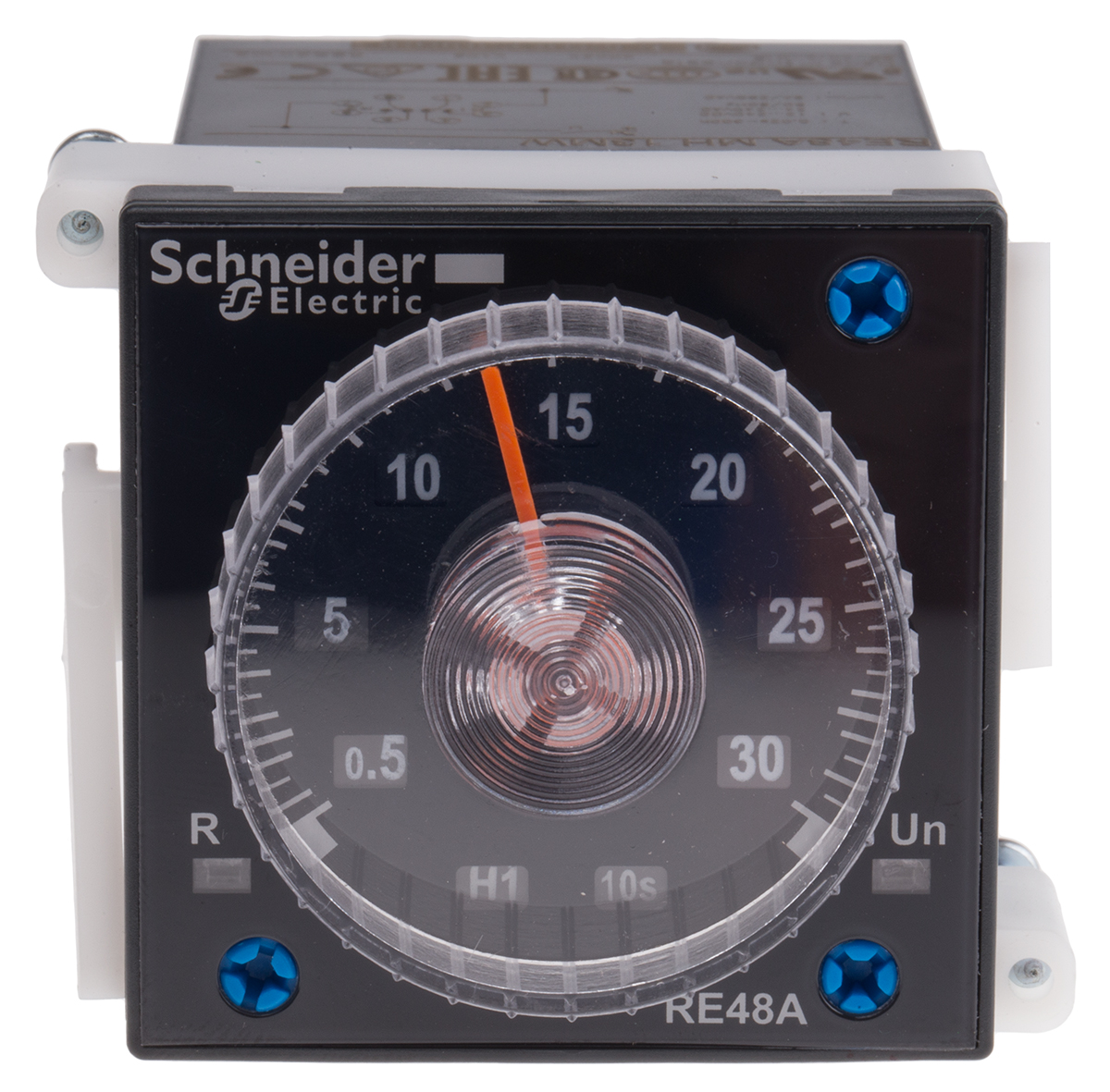

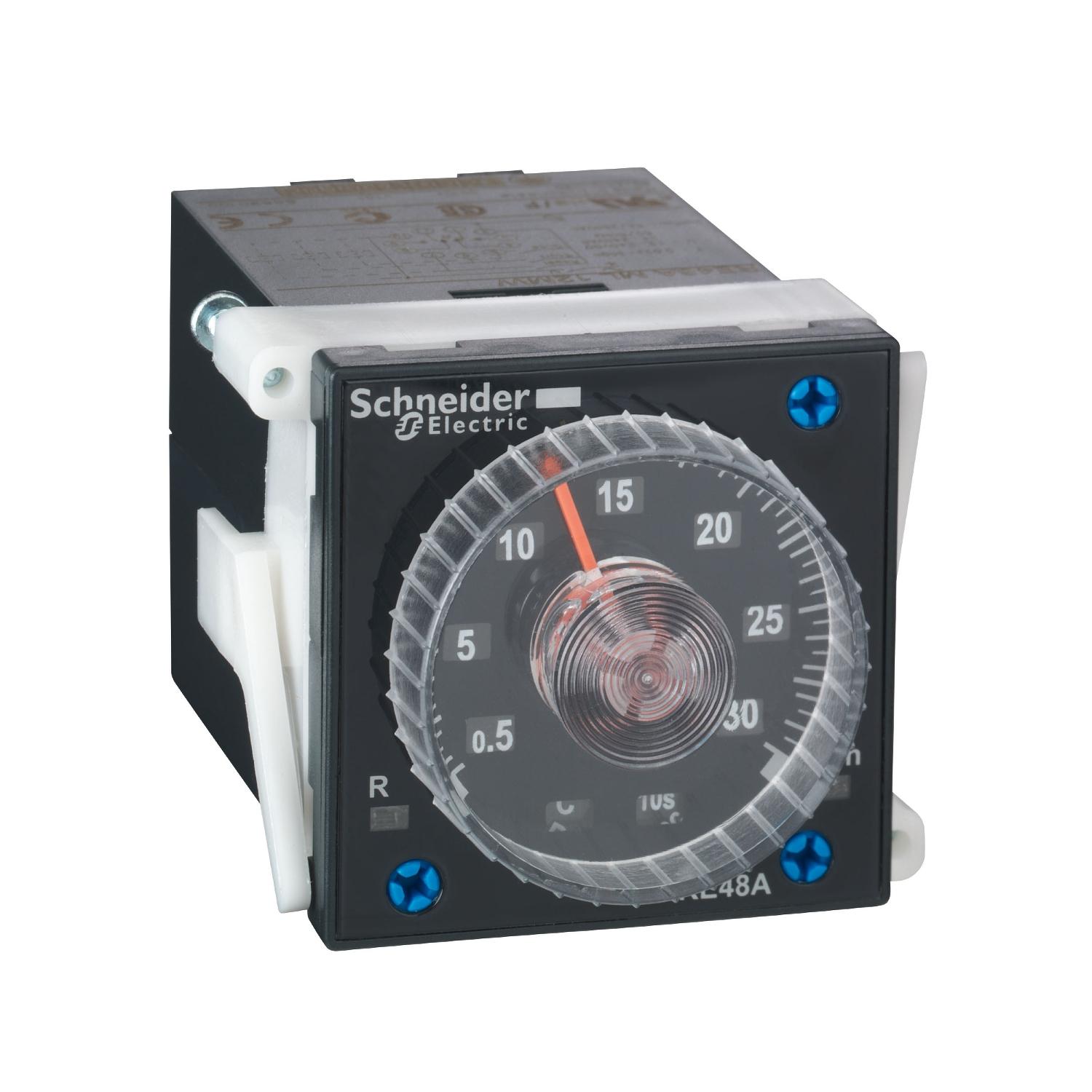

re48amh13mw Schneider Electric Multi Function Time Delay Relay, Plug In, 0.02 s → 300 h, DPDT, 2 Contacts
re48amh13mw Schneider Electric Multi Function Time Delay Relay, Plug In, 0.02 s → 300 h, DPDT, 2 Contacts
re48amh13mw Schneider Electric Multi Function Time Delay Relay, Plug In, 0.02 s → 300 h, DPDT, 2 Contacts
re48amh13mw Schneider Electric Multi Function Time Delay Relay, Plug In, 0.02 s → 300 h, DPDT, 2 Contacts
re48amh13mw Schneider Electric Multi Function Time Delay Relay, Plug In, 0.02 s → 300 h, DPDT, 2 Contacts
re48amh13mw Schneider Electric Multi Function Time Delay Relay, Plug In, 0.02 s → 300 h, DPDT, 2 Contacts

Multi-functional Timers- RE48 Series • 2 functions • 48 x 48 mm • Plug-in sub-base; 8 or 11 pin • Self-extinguishing housing • Selector switch on front panel • 24-240 V ac supply voltage • LED status indication • IP50 (front face) & IP40 (housing) protection

Schneider Electric Multi Function Time Delay Relay, Plug In, 0.02 s → 300 h, DPDT, 2 Contacts

Manufacturer:
Schneider Electric
Manufacturer Part No:
RE48AMH13MW
Enrgtech Part No:
ET14097612
Warranty:
Manufacturer
£ 178.75
Checking for live stock
Maximum Voltage:
240V ac/dc
Width:
48mm
Supply Voltage:
24 → 240V ac/dc
Maximum Current:
5A
Time Range:
0.02 s → 300h
Mode of Operation:
Interval, Power ON Delay
Number of Timer Functions:
Multi Function
Maximum Operating Temperature:
+50°C
Terminal Type:
8-Pin Connector
Time Increment:
Hours, Minutes, Seconds
Power Supply:
External
Contact Configuration:
DPDT
Length:
48mm
Minimum Voltage:
24V ac/dc
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
Panel Mount
Series:
Harmony Time
Depth:
96.8mm
Minimum Operating Temperature:
-20°C
Number of Contacts:
2
Contact Material:
Silver Nickel
RoHS Status:
ROHS3 Compliant
Relay Type:
Mechanical Relay
Termination Style:
Plug In
Timing Initiate Method:
Input Voltage
Function:
Programmable (Multi-Function)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPDT (1 Form C) x 2
Contact Rating @ Voltage:
5A @ 250VAC/DC
standardLeadTime:
5 Weeks
Delay Time:
0.02 Sec ~ 300 Hrs
Timing Adjustment Method:
Hand Dial
Mounting Type:
Panel Mount
Series:
Harmony
Packaging:
Box
Voltage - Supply:
24 ~ 240VAC/DC
pdf icon
Datasheet(Technical Reference)
pdf icon
Instruction Sheet - RE48AMH13MW(Technical Reference)
pdf icon
Zelio Selection Guide(Technical Reference)
pdf icon
Catalogue - Harmony Timer Relays(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
RE48AMH13MW Datasheet(Datasheets)
Explore timer relays designed for accurate time-based control. Enrgtech offers time delay switches and control modules for automation and electrical systems.
