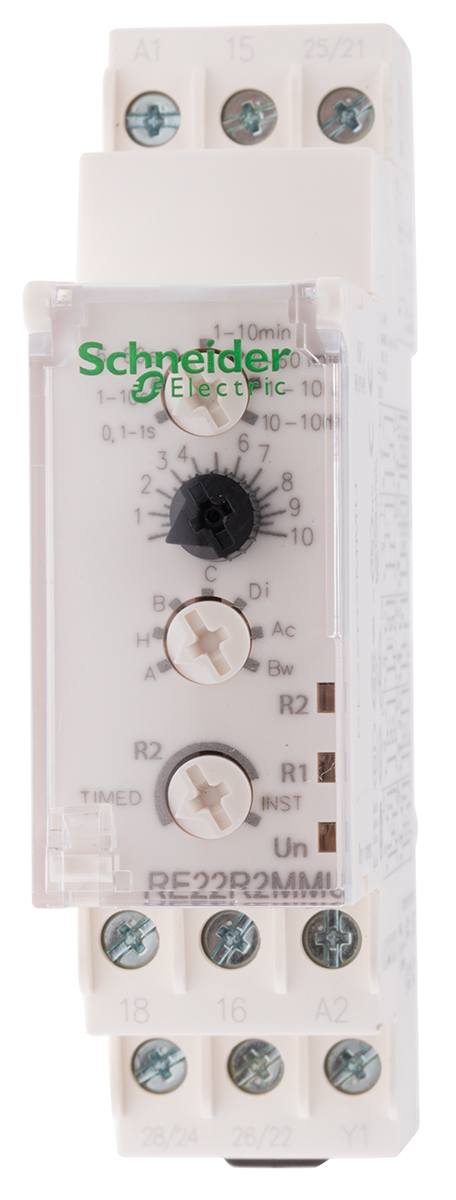

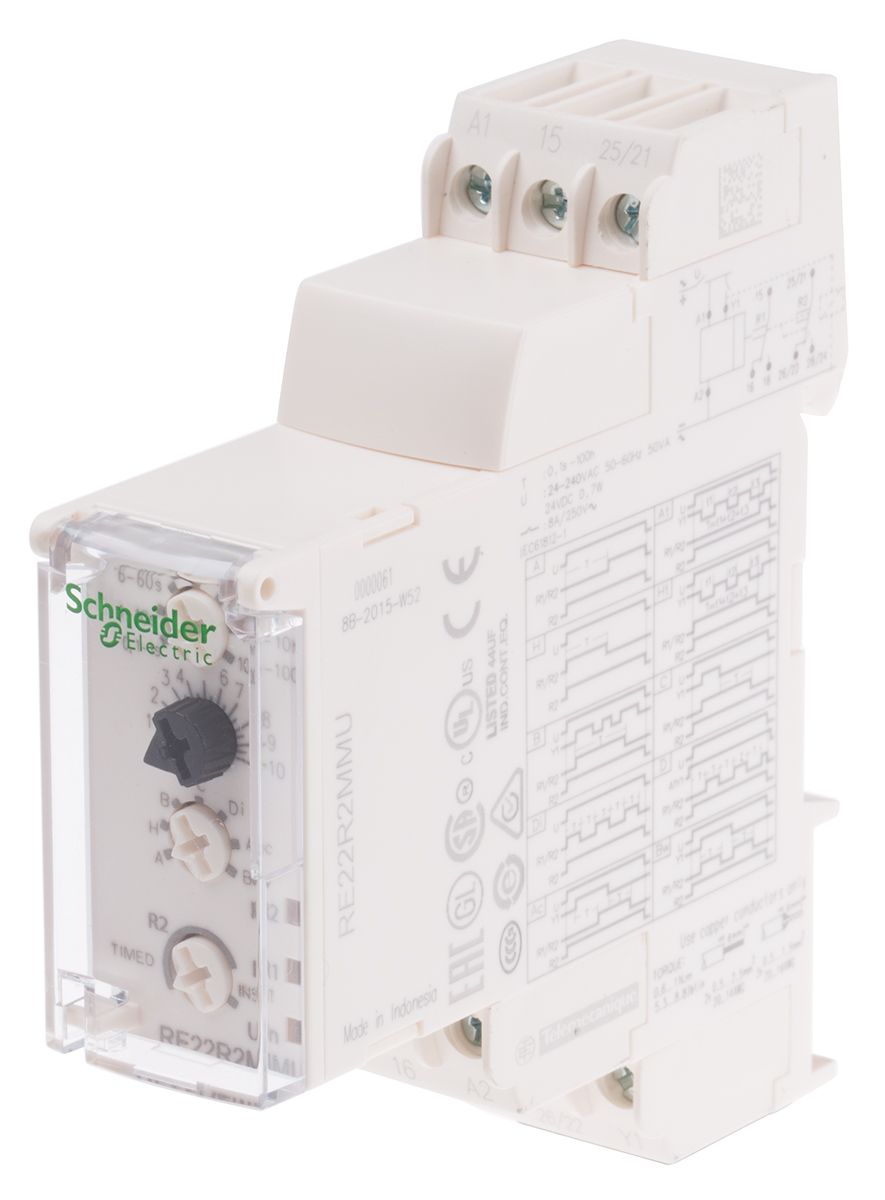

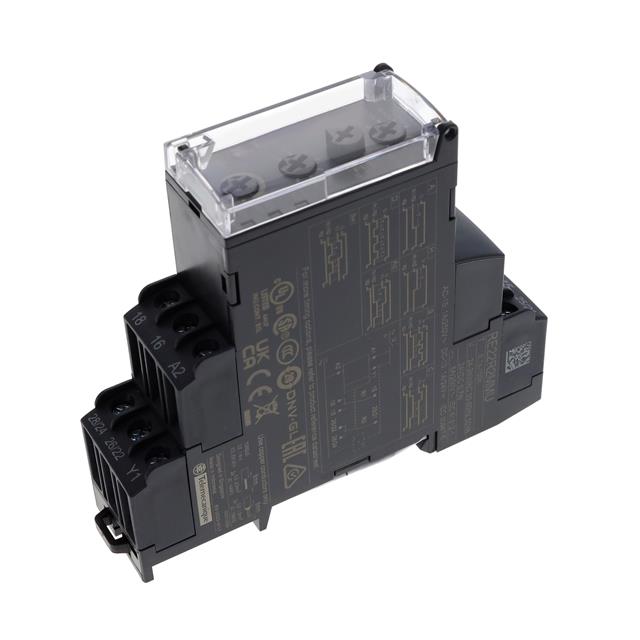

re22r2mmu Multi Function Multi Function Timer Relay, Screw, 0.1 s → 100 h, DPDT, 4 Contacts, DPCO, 24 → 240 V ac
re22r2mmu Multi Function Multi Function Timer Relay, Screw, 0.1 s → 100 h, DPDT, 4 Contacts, DPCO, 24 → 240 V ac
re22r2mmu Multi Function Multi Function Timer Relay, Screw, 0.1 s → 100 h, DPDT, 4 Contacts, DPCO, 24 → 240 V ac
re22r2mmu Multi Function Multi Function Timer Relay, Screw, 0.1 s → 100 h, DPDT, 4 Contacts, DPCO, 24 → 240 V ac
re22r2mmu Multi Function Multi Function Timer Relay, Screw, 0.1 s → 100 h, DPDT, 4 Contacts, DPCO, 24 → 240 V ac

Multifunctional Timers- Zelio RE22 Series 22.5 mm profile width Screw terminals connection State indication by LED Repeat accuracy of +/- 0.5 % conforming to IEC 61812-1 Available option of supplying a load in parallel Operating temperature of -20 → 60 °C Self extinguishing housing material Ingress protection of IP20 (terminal block), IP40 (housing) and IP50 (front face)

Schneider Electric RE22R2MMU Multi Function Multi Function Timer Relay, Screw, 0.1 s → 100 h, DPDT, 4 Contacts, DPCO, 24 → 240 V ac

Manufacturer:
Schneider Electric
Manufacturer Part No:
RE22R2MMU
Enrgtech Part No:
ET14151794
Warranty:
Manufacturer
£ 100.50
Checking for live stock
Width:
22.5mm
Supply Voltage:
24 → 240V ac
Maximum Current:
8A
Time Range:
0.1 s → 100h
Mode of Operation:
Multifunction
Number of Timer Functions:
Multi Function
Maximum Operating Temperature:
+60°C
Terminal Type:
Screw
Time Delay:
<100ms
Time Increment:
Hours, Minutes, Seconds
Power Supply:
External
Switch Configuration:
DPCO
Contact Configuration:
DPDT
Length:
22.9mm
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
DIN Rail
Series:
Harmony Time
Depth:
79.5mm
Minimum Current:
10mA
Minimum Operating Temperature:
-20°C
Number of Contacts:
4
Qualification:
-
HTSUS:
8536.49.0050
RoHS Status:
ROHS3 Compliant
Relay Type:
Mechanical Relay
Termination Style:
Screw Terminal
Timing Initiate Method:
Input Voltage
Function:
Programmable (Multi-Function)
title:
RE22R2MMU
REACH Status:
REACH Affected
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
DPDT (2 Form C)
Contact Rating @ Voltage:
8A @ 250VAC
standardLeadTime:
5 Weeks
Delay Time:
0.1 Sec ~ 100 Hrs
Timing Adjustment Method:
Screwdriver Slot
Mounting Type:
DIN Rail
Grade:
-
Series:
Harmony
Packaging:
Box
Voltage - Supply:
24 ~ 240VAC
Base Product Number:
RE22R
ECCN:
EAR99
pdf icon
Zelio Time RE22R2MMU Data Sheet(Technical Reference)
pdf icon
RE22 Series Product Guides(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
RE22R2MMU(Datasheets)
