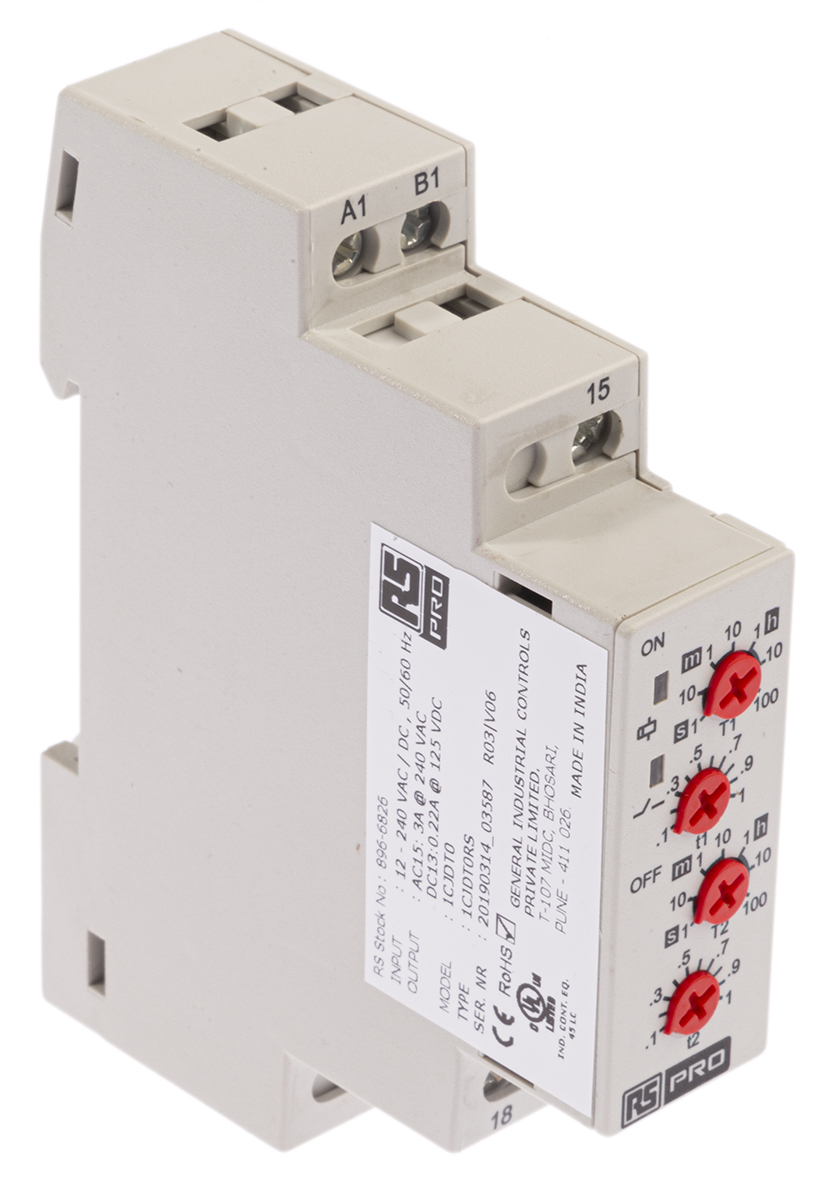

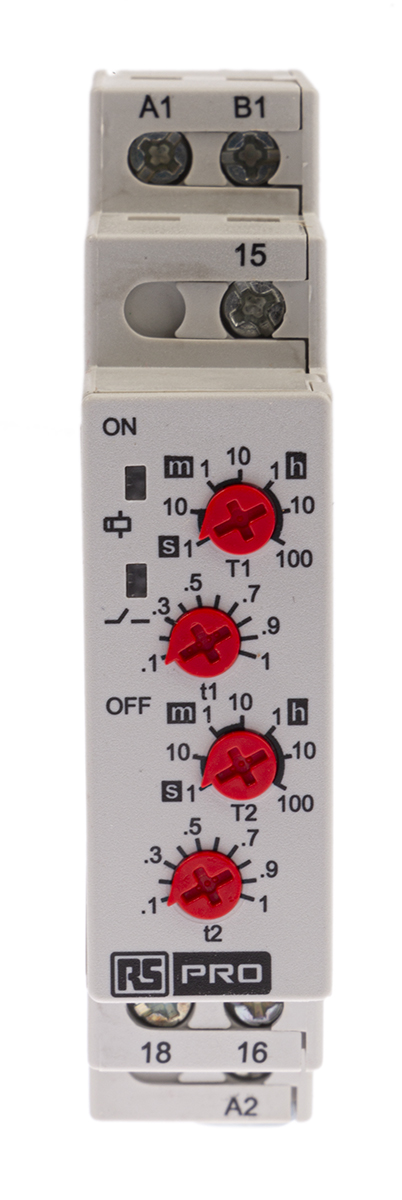

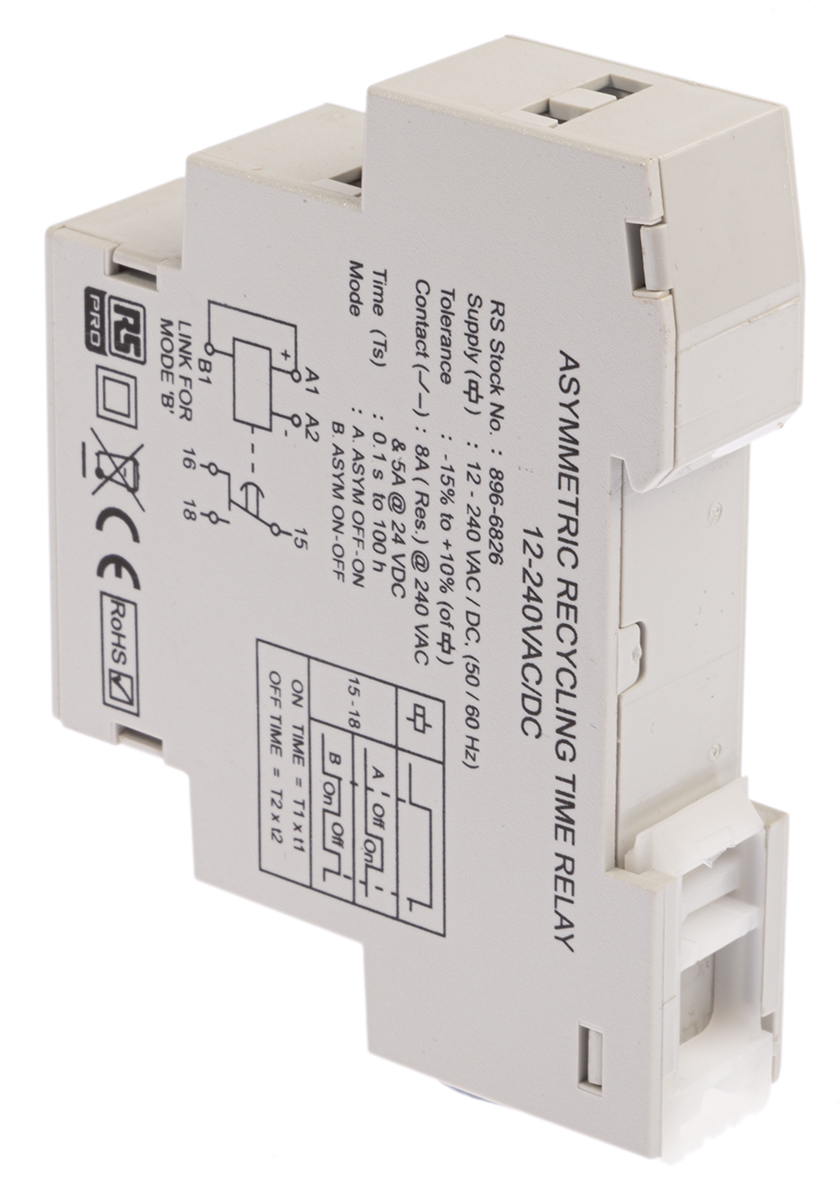

896-6826 RS PRO 1LL009_02 Series DIN Rail Timer Relay, 1-Contact, 24 V dc 12V ac, 240 V ac, 0.1 s to 100 h,
896-6826 RS PRO 1LL009_02 Series DIN Rail Timer Relay, 1-Contact, 24 V dc 12V ac, 240 V ac, 0.1 s to 100 h,
896-6826 RS PRO 1LL009_02 Series DIN Rail Timer Relay, 1-Contact, 24 V dc 12V ac, 240 V ac, 0.1 s to 100 h,
896-6826 RS PRO 1LL009_02 Series DIN Rail Timer Relay, 1-Contact, 24 V dc 12V ac, 240 V ac, 0.1 s to 100 h,
896-6826 RS PRO 1LL009_02 Series DIN Rail Timer Relay, 1-Contact, 24 V dc 12V ac, 240 V ac, 0.1 s to 100 h,
896-6826 RS PRO 1LL009_02 Series DIN Rail Timer Relay, 1-Contact, 24 V dc 12V ac, 240 V ac, 0.1 s to 100 h,
896-6826 RS PRO 1LL009_02 Series DIN Rail Timer Relay, 1-Contact, 24 V dc 12V ac, 240 V ac, 0.1 s to 100 h,
896-6826 RS PRO 1LL009_02 Series DIN Rail Timer Relay, 1-Contact, 24 V dc 12V ac, 240 V ac, 0.1 s to 100 h,

The RS Pro 896‑6826 is a versatile multifunction timer relay designed for DIN‑rail mounting. It accepts a wide supply range—from 12 to 240 V AC/DC—and offers timing flexibility from 0.1 seconds to 100 hours. Compact yet rugged, it features a SPDT (single-pole double-throw) output contact rated at 8 A/240 V. Visual status is provided via LED indicators for power and relay state. Its IP20 (terminals) and IP40 (enclosure) ratings deliver solid protection for industrial settings.

Why Choose the RS Pro 896‑6826 Timer Relay?

Opting for this multifunction timer offers several key benefits: its broad voltage compatibility makes it suitable for use across various devices and installations, while the extensive timing range—0.1 s to 100 h—addresses a wide array of delay needs. The SPDT contact offers flexible circuit control, and the sturdy screw terminals ensure reliable, maintenance‑free connections. Plus, the built‑in LEDs simplify installation and troubleshooting, enhancing usability and uptime.

Product Highlights:

  • DIN‑rail mountable, compact 17.5 mm width
  • Supply voltage: 12–240 V AC/DC
  • Timing range: 0.1 s to 100 h, adjustable in s/min/h steps
  • Contact type: SPDT (1‑pole changeover), rated 8 A / 240 V AC/DC
  • LED status indicators: Green (power), Amber (relay state)
  • Protection rating: IP20 (terminals), IP40 (enclosure)
  • Operational temperature: –10 °C to +60 °C
  • Timing reset delay: 200 ms
  • Compact dimensions: ~85 × 18 × 65 mm.

RoHs Compliant

RS PRO 1LL009_02 Series DIN Rail Timer Relay, 1-Contact, 24 V dc 12V ac, 240 V ac, 0.1 s to 100 h,

Manufacturer:
RS PRO
Manufacturer Part No:
896-6826
Enrgtech Part No:
ET16745024
Warranty:
Manufacturer
local
1 - In Stock

Ships in 2-3 business days

pcs

Quantity
Unit Price (ex VAT)
1
£ 40.74 £ 28.52
Order Today!
From: United Kingdom
Est Ship Date: 08 Sep, 2026
Est Fastest Delivery: 09 Sep, 2026
Width:
18mm
Height:
65mm
Length:
85mm
Series:
1LL009_02
Function:
Transducer
Mount Type:
DIN Rail
Time Range:
0.1 s to 100 h
Product Type:
Timer Relay
Terminal Type:
Screw
Supply AC Voltage:
12, 240V ac
Supply DC Voltage:
24 V dc
Number of Contacts:
1
Standards/Approvals:
RoHS
Contact Configuration:
SPDT
Number of Timer Functions:
Multifunction
Maximum Operating Temperature:
60°C
Minimum Operating Temperature:
-10°C
Depth:
65mm
Width:
18mm
Length:
85mm
Time Delay:
(Reset) 200ms
Time Range:
0.1 s → 100h
Power Supply:
External
Mounting Type:
DIN Rail
Terminal Type:
Screw
Supply Voltage:
12 → 240V ac/dc
Time Increment:
Hours, Minutes, Seconds
Maximum Current:
8A
Maximum Voltage:
240V ac/dc
Minimum Current:
0.1A
Minimum Voltage:
12V ac/dc
Mode of Operation:
Asymmetric OFF/ON, Asymmetric ON/OFF
Number of Contacts:
1
Switch Configuration:
SPDT
Contact Configuration:
SPDT
Number of Timer Functions:
Multi Function
Maximum Operating Temperature:
+60°C
Minimum Operating Temperature:
-10°C
