Depth:
79.5mm
Grade:
-
Width:
90mm
title:

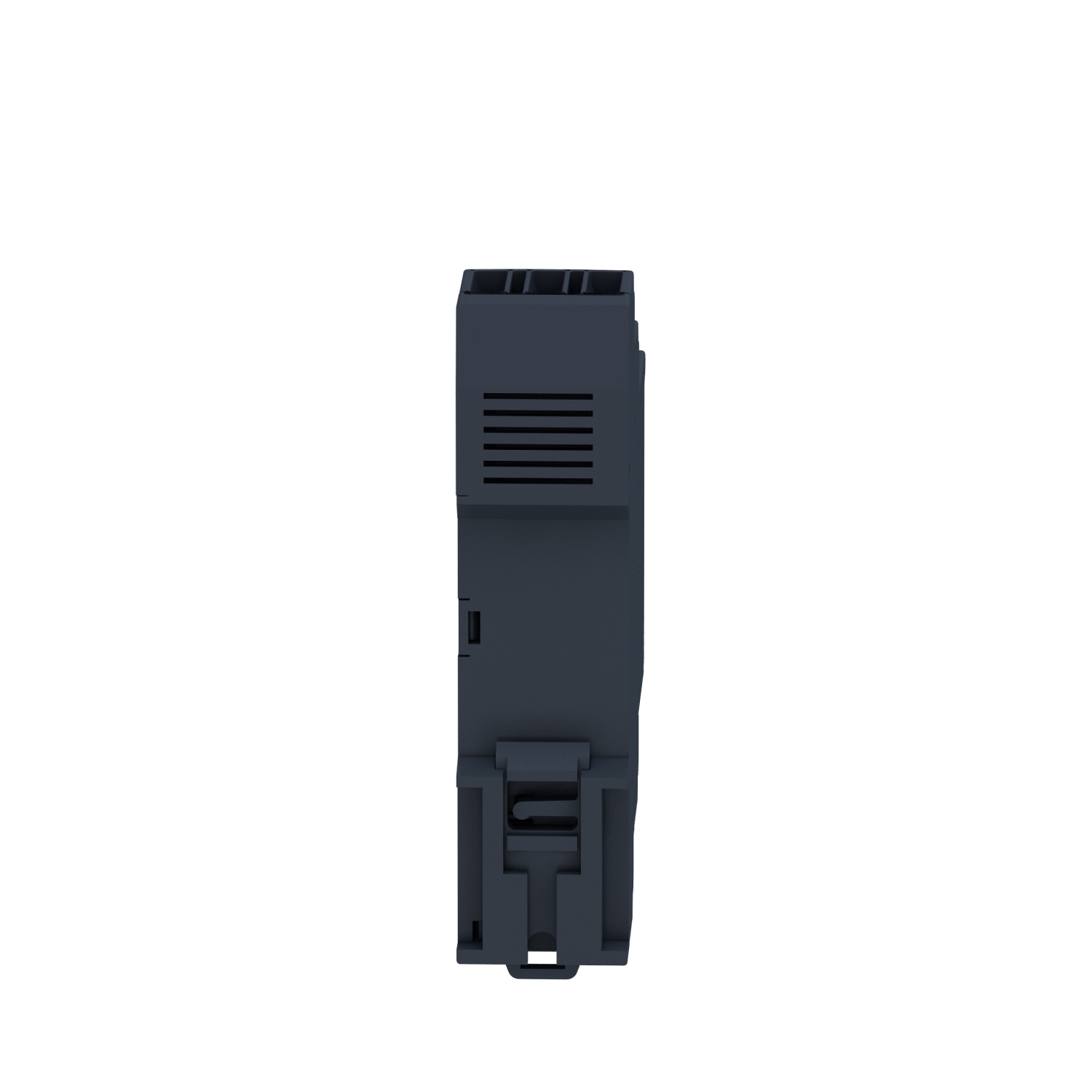

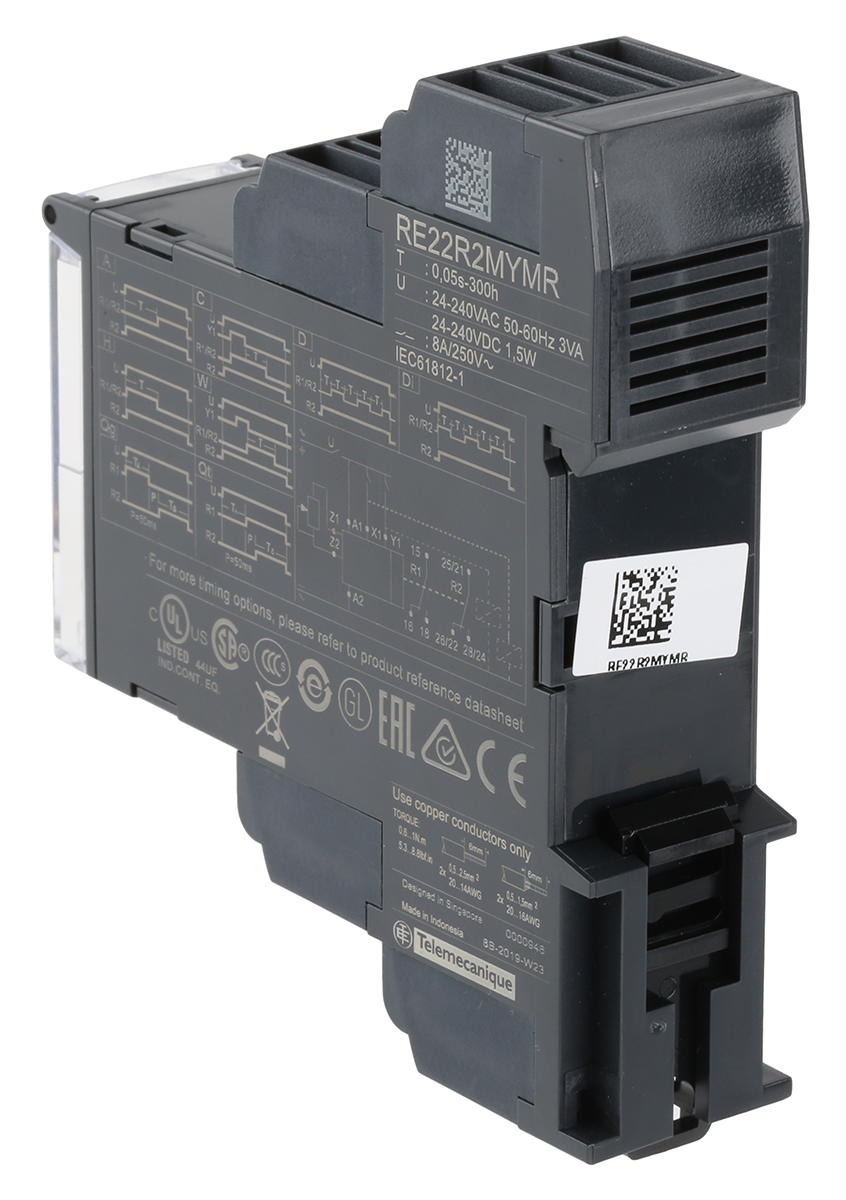

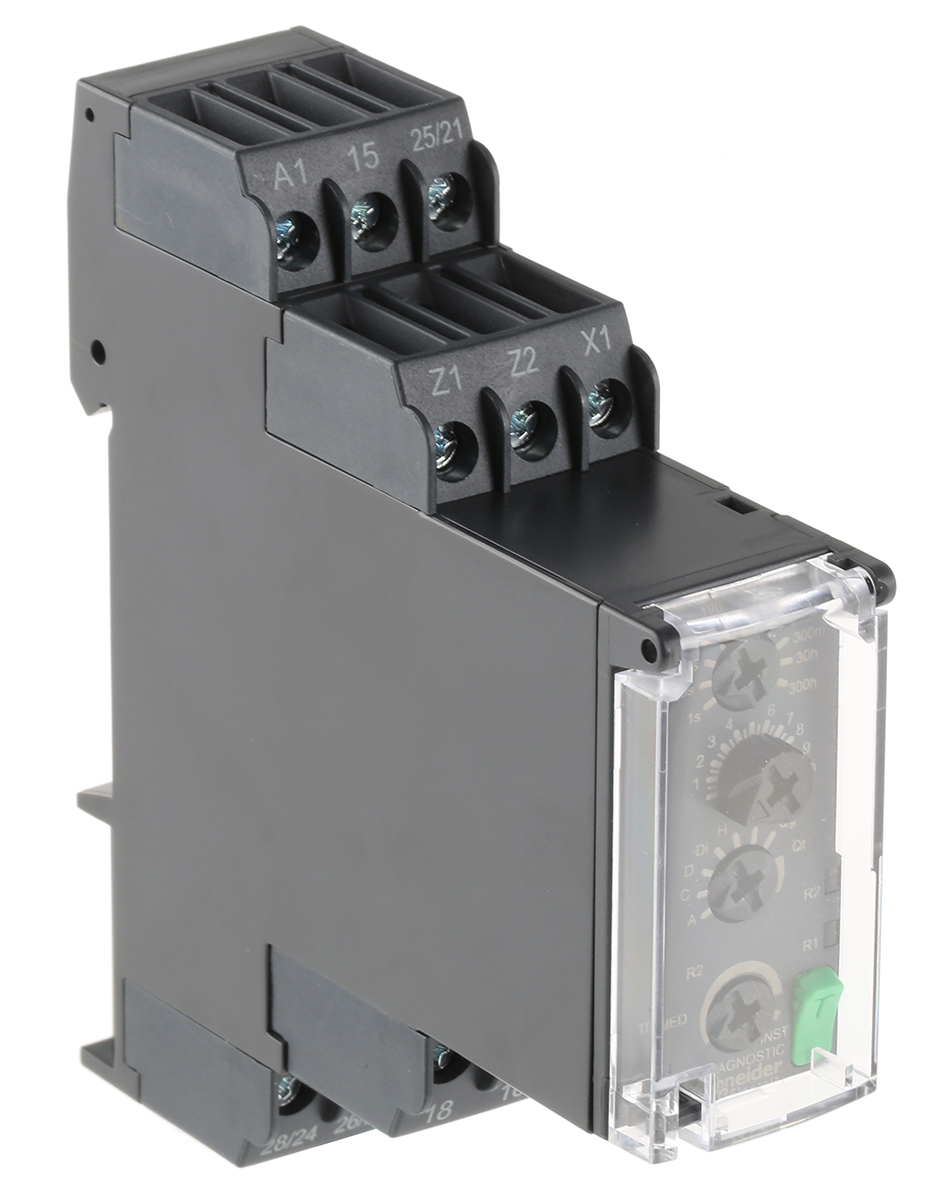

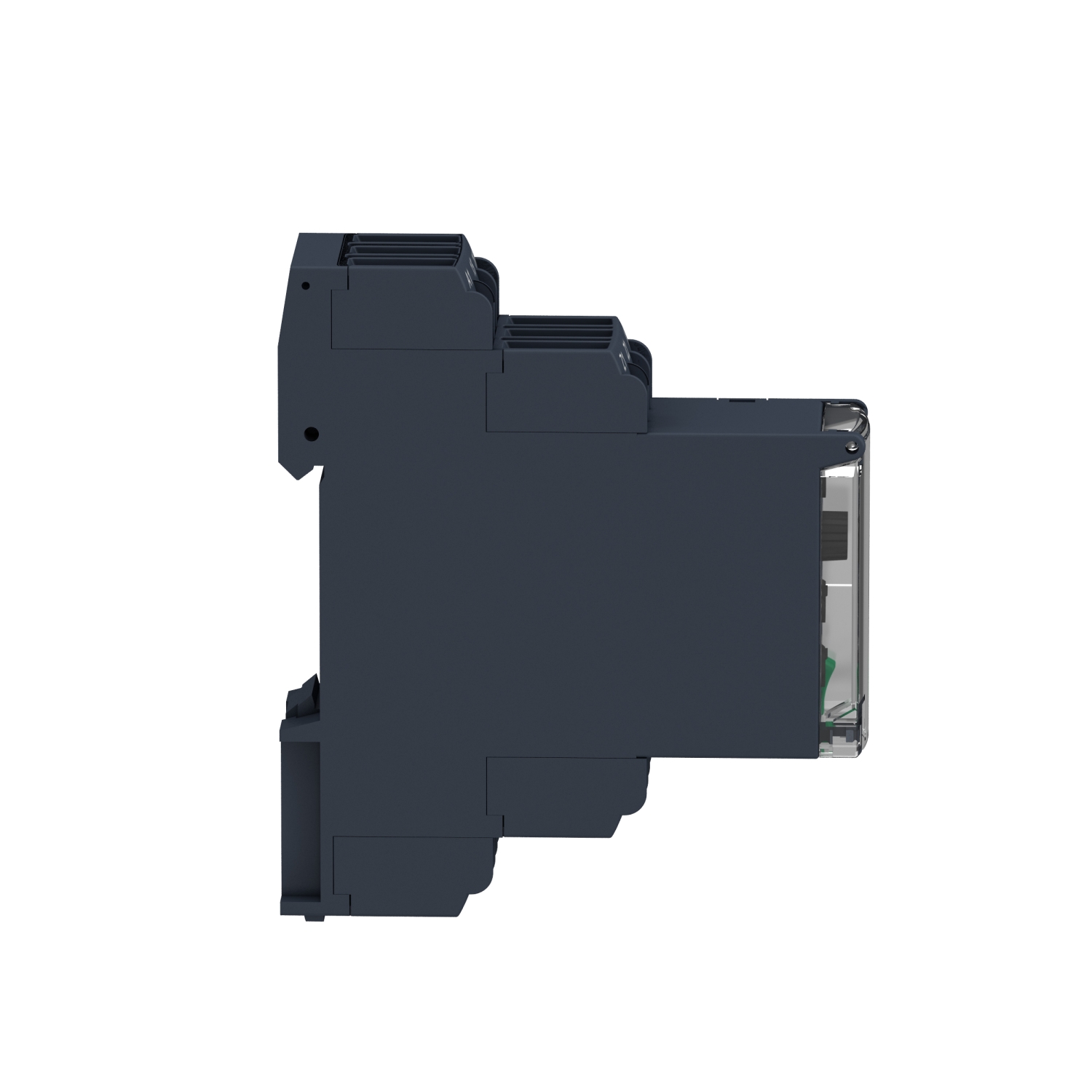

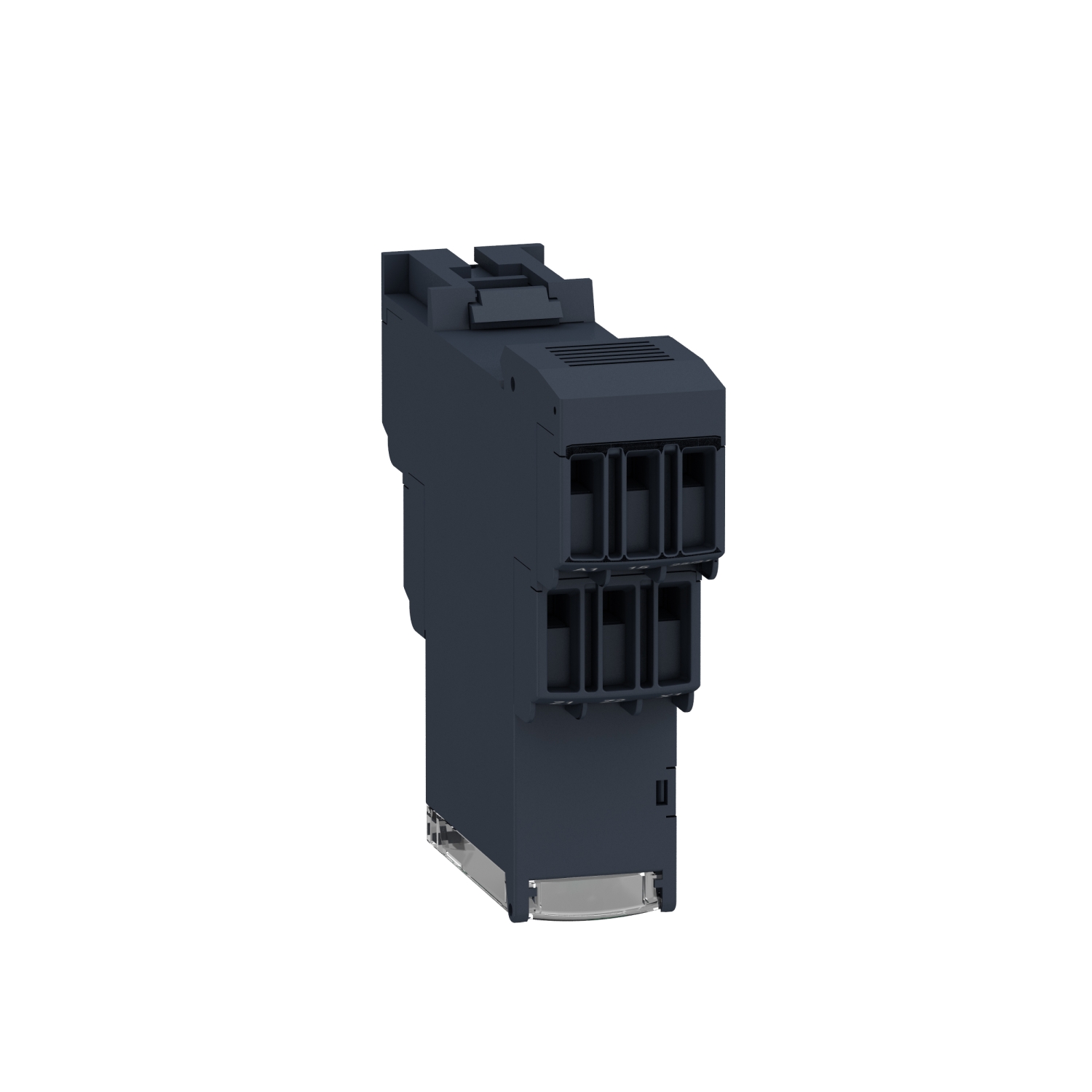

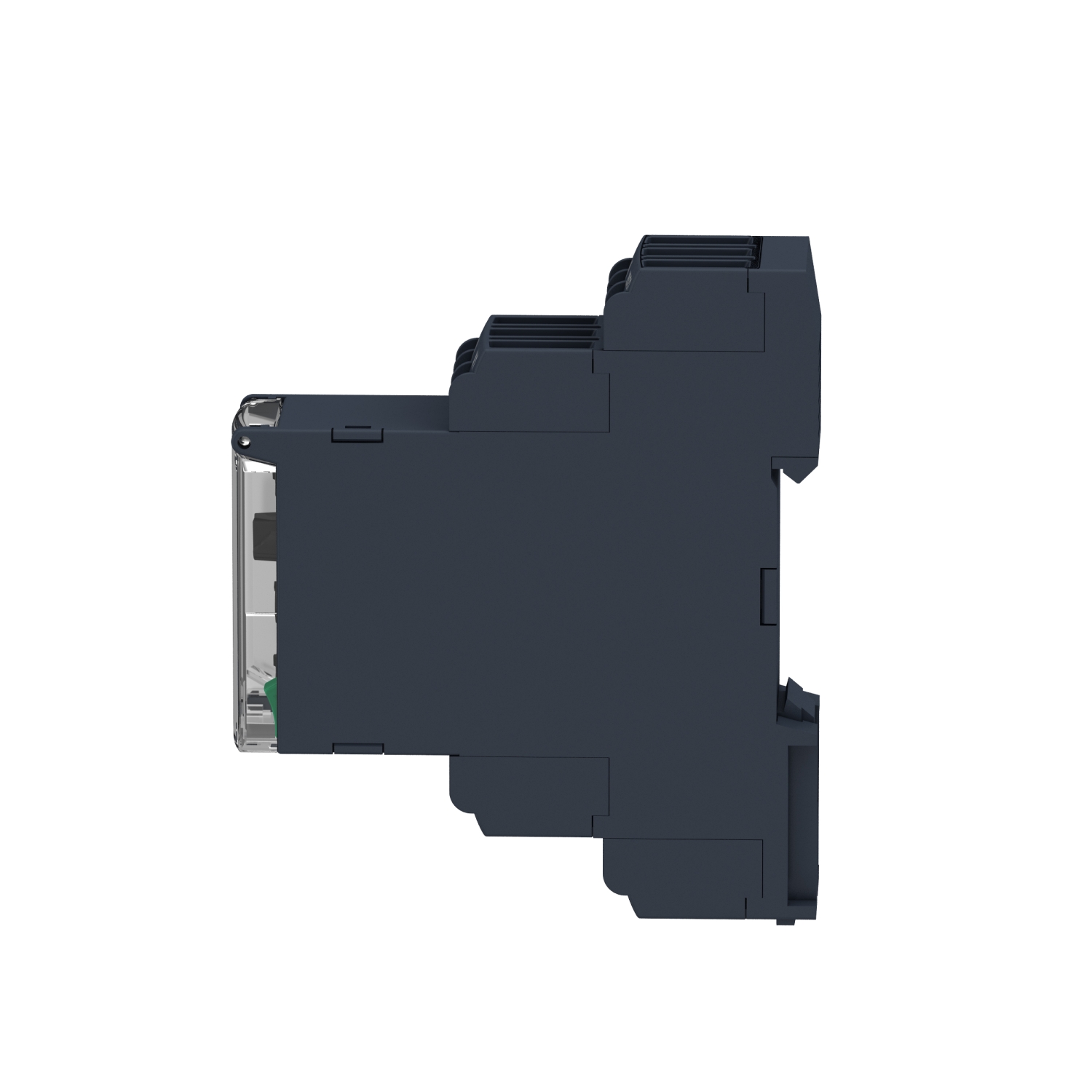

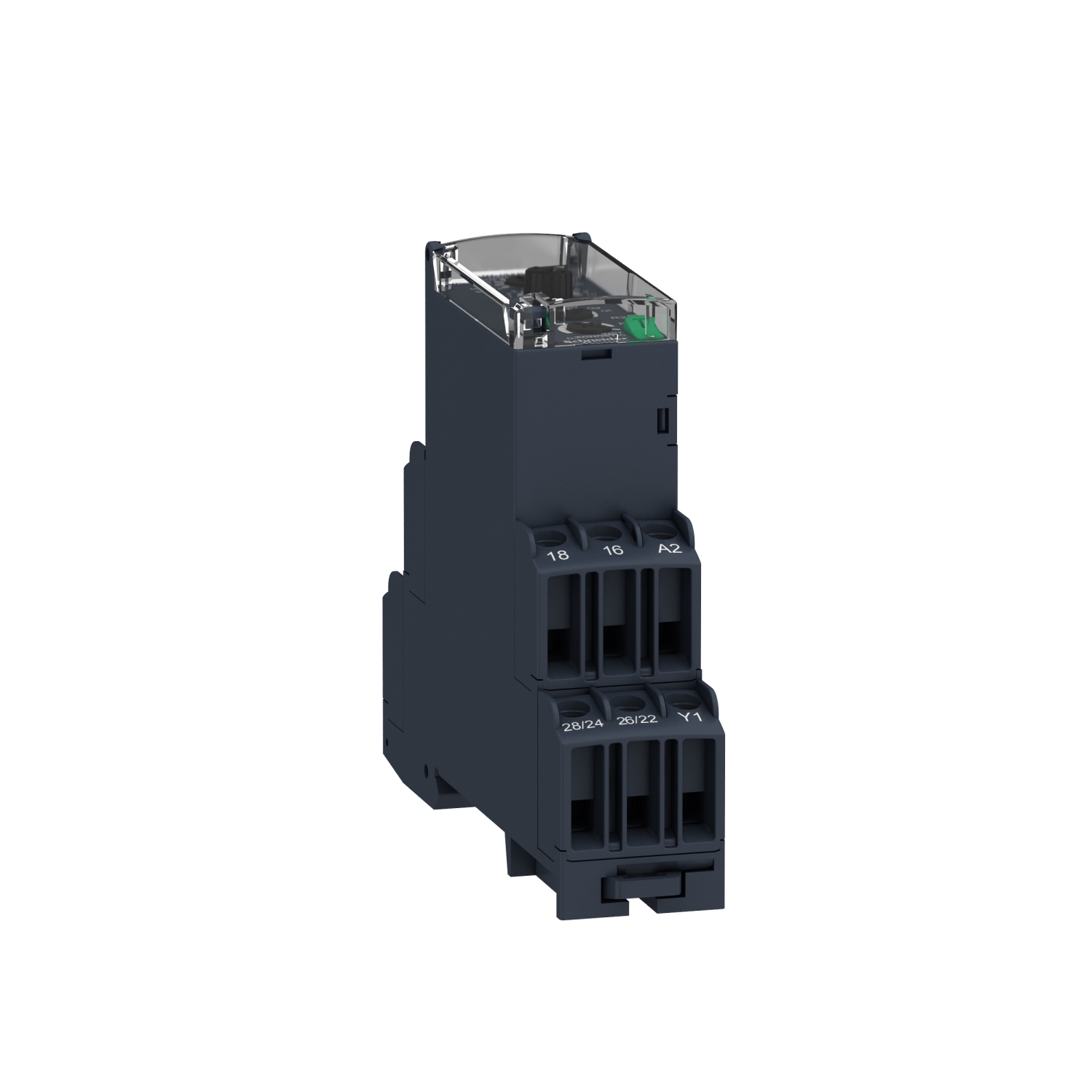

RE22R2MYMR
Length:
22.9mm
Series:
Harmony
Circuit:
DPDT (2 Form C)
Function:
Programmable (Multi-Function)
Packaging:
Box
Delay Time:
0.05 Sec ~ 300 Sec
Relay Type:
Mechanical Relay
Time Delay:
<100ms
Time Range:
0.05 → 1 s, 0.3 → 3 s, 1 → 10 s, 10 → 100 s, 3 → 30 h, 3 → 30 min, 3 → 30 s, 30 → 300 h, 30 → 300 min, 30 → 300s
RoHS Status:
ROHS3 Compliant
Power Supply:
External
REACH Status:
REACH Affected
Mounting Type:
DIN Rail
Qualification:
-
Terminal Type:
Screw
Supply Voltage:
24 → 240V ac/dc
Time Increment:
Hours, Minutes, Seconds
Maximum Current:
8A
Maximum Voltage:
240V ac/dc
Minimum Current:
10mA
Minimum Voltage:
24V ac/dc
Voltage - Supply:
24 ~ 240VAC/DC
standardLeadTime:
5 Weeks
Mode of Operation:
OFF Delay, ON Delay
Termination Style:
Screw Terminal
Number of Contacts:
2
Base Product Number:
RE22R
Better World Product:
Yes
Switch Configuration:
DPCO
Contact Configuration:
DPDT
Timing Initiate Method:
Input Voltage, Trigger Signal
Contact Rating @ Voltage:
8A @ 250VAC
Timing Adjustment Method:
Screwdriver Slot
Better World Verification:
Green Premium
Number of Timer Functions:
Multi Function
Maximum Operating Temperature:
+60°C
Minimum Operating Temperature:
-20°C
Moisture Sensitivity Level (MSL):
Not Applicable
